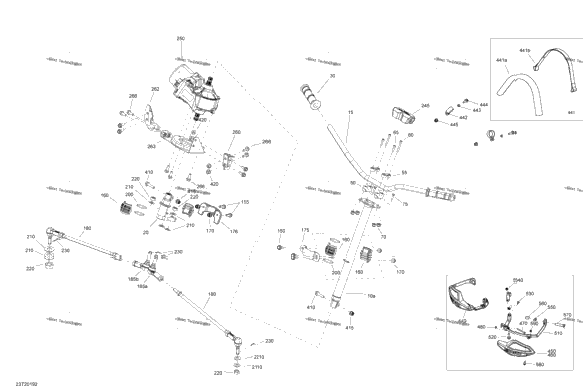

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 709401750 | Black, Upper Main Tube | 1 |
| 1 | 709401530 | Manta Green, Handle Bar Model Mineral Gray Satin | 1 |
| 1 | 709400513 | Aluminum Handle Bar Model Mineral Gray Satin | 1 |
| 1 | 709402361 | Platinum Silver Satin, Handlebar Model Timeless Black | 1 |
| 1 | 709401756 | Pitman Arm | 1 |
| 2 | 709400493 | Handle Grip | 2 |
| 2 | 709400497 | Steering Support | 2 |
| 2 | 709400496 | Support | 2 |
| 2 | 205086060 | Socket Head Screw M8 X 60 | 2 |
| 2 | 205083060 | Socket Screw M8 X 30 | 2 |
| 4 | 233281416 | Hex. Elastic Flange Nut M8 | 4 |
| 2 | 207183060 | Hex. Screw M8 X 30 | 2 |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 | 2 |
| 2 | 207682544 | Hex. Flange Screw M8 X 25 | 2 |
| 4 | 709400783 | Spherical Half Bushing | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 1 | 709400827 | Upper Column Attachment | 1 |
| 1 | 709401428 | Column Attachment | 1 |
| 2 | 703501039 | Tie-Rod Ass`y Includes 180 to 180a | 2 |
| 1 | 709402303 | LH Ball Joint | 1 |
| 1 | 709402302 | RH Ball Joint | 1 |
| 2 | 703501039 | Tie-Rod Ass`y Includes 180 to 180b | 2 |
| 2 | 709402302 | RH Ball Joint | 2 |
| 4 | 293300068 | O-Ring | 4 |
| 8 | 250200086 | Flat Washer | 8 |
| 4 | 250100099 | Nut M12 | 4 |
| 4 | 211400013 | Cotter Pin | 4 |
| 1 | 709402328 | Steering Cover | 1 |
| 1 | 709402230 | Power Steering | 1 |
| 1 | 709402184 | LH Power Steering Bracket | 1 |
| 1 | 709402185 | RH Bracket | 1 |
| 1 | 709401743 | Power Steering Support | 1 |
| 11 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 11 |
| 2 | 250000986 | Hex. Flange Screw M8 X 35 | 2 |
| 2 | 233281416 | Hex. Elastic Flange Nut M8 | 2 |
| 4 | 233081416 | Hex. Flange Nut M8 | 4 |
| 1 | 506152115 | Strap Ass'y Includes 441 to 441a | 1 |
| 1 | 506152115 | Strap Ass'y | 1 |
| 2 | 709401720 | Collar Tube | 2 |
| 2 | 506152156 | Bushing | 2 |
| 2 | 207662054 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261466 | Hex. Flange Elastic Nut M6 | 2 |
| 1 | 715003812 | Deflector Kit Model Mineral Gray Satin | 1 |
| 1 | 709401303 | Deep Black RH Air Deflector Model Timeless Black | 1 |
| 1 | 709401622 | Manta Green, RH Deflector Model Mineral Gray Satin | 1 |
| 1 | 709401304 | Deep Black LH Air Deflector Model Timeless Black | 1 |
| 1 | 709401623 | Manta Green, LH Deflector Model Mineral Gray Satin | 1 |
| 2 | 205444056 | Socket Head Screw M4 X 40 | 2 |
| 2 | 232541414 | Elastic Stop Nut M4 | 2 |
| 2 | 715001378 | Air Deflector Support Kit | 2 |
| 1 | 715001378 | Air Deflector Support Kit | 1 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 250000717 | Torx Head Screw M6 X 16 | 2 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 2 | 709400161 | Small Bracket | 2 |
| 2 | 709400162 | Large Bracket | 2 |
| 2 | 205384034 | Socket Head Screw | 2 |
| 2 | 250000145 | Torx Screw M5 X 14 Model Timeless Black | 2 |
| 2 | 250000742 | Torx Screw M5 X 14 Model Mineral Gray Satin | 2 |
| 2 | 232551600 | Hex. Elastic Nut M5 | 2 |
