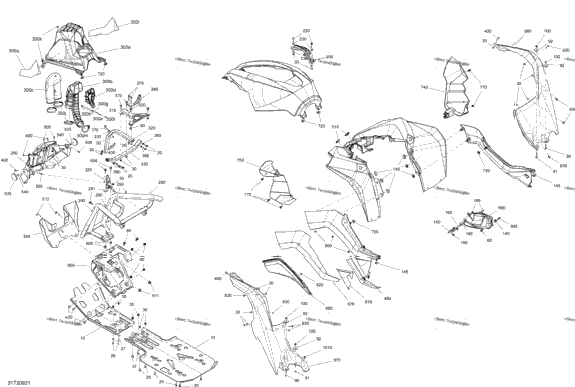

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705204031 | Central Skid Plate | 1 |
| 1 | 705205019 | Front Skid Plate | 1 |
| 8 | 207662054 | Hex. Flange Screw M6 X 20 | 8 |
| 2 | 207762044 | Carriage Bolt M6 X 20 | 2 |
| 2 | 250000712 | Torx Screw M6 X 20 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 1 | 233261434 | Flange Elastic Nut M6 | 1 |
| 2 | 233281434 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 207682534 | Hex. Flange Screw M8 X 25 | 2 |
| 7 | 233281434 | Hex. Flange Elastic Nut M8 | 7 |
| 2 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip | 2 |
| 4 | 207763554 | Carriage Bolt M6 X 35 | 4 |
| 4 | 207764550 | Carriage Bolt M6 X 45 | 4 |
| 8 | 250200158 | Flat Washer M8 | 8 |
| 1 | 250300039 | Ball Head Stud | 1 |
| 8 | 233261494 | Hex. Elastic Flange Nut M6 | 8 |
| 1 | 293720053 | Grommet | 1 |
| 8 | 705000321 | Oval Washer | 8 |
| 1 | 705011461 | Engine Cover Support | 1 |
| 1 | 705003646 | Engine Cover Support | 1 |
| 3 | 210261250 | Hex. Flange Screw M6 X 12 | 3 |
| 1 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip | 1 |
| 1 | 705004416 | Lever Indicator | 1 |
| 2 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 2 |
| 5 | 224061201 | Flat Washer | 5 |
| 1 | 705010673 | Front Facia | 1 |
| 1 | 705009707 | Front Facia | 1 |
| 1 | 705014447 | Platinum Silver Satin, Front Bumper | 1 |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 | 2 |
| 1 | 705009695 | Fuse Bracket | 1 |
| 4 | 293000121 | Plug | 4 |
| 1 | 705009685 | Hood XMR | 1 |
| 1 | 707001779 | Upper Air Inlet | 1 |
| 1 | 707001782 | Upper Air Outlet | 1 |
| 1 | 705010922 | Prefilter Screen Includes 300d to 300p | 1 |
| 1 | 293900122 | Bushing | 1 |
| 1 | 230060060 | Hex. Screw M6 X 100 | 1 |
| 1 | 250200115 | Flat Washer M6 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 293650077 | Norma Clamp | 1 |
| 3 | 293650091 | Norma Clamp | 3 |
| 2 | 293150230 | Tuflok Plastic Rivet | 2 |
| 1 | 704907741 | LH Front Hood Decal | 1 |
| 1 | 704907742 | RH Front Hood Decal | 1 |
| 1 | 705003599 | Bracket | 1 |
| 1 | 705003511 | Front Tube | 1 |
| 1 | 705009706 | Support | 1 |
| 1 | 705003510 | Body Tube | 1 |
| 3 | 207663544 | Hex. Flange Screw M6 X 35 | 3 |
| 2 | 207664044 | Hex. Flange Screw M6 X 40 | 2 |
| 4 | 293450275 | Insert | 4 |
| 9 | 250000758 | Torx Screw M6 X 25 | 9 |
| 4 | 250000886 | Torx Screw M8 X 30 | 4 |
| 2 | 207664544 | Hex. Flange Screw M6 X 45 | 2 |
| 1 | 705010559 | Heat Shield | 1 |
| 4 | 250000720 | Torx Screw K50 X 16 | 4 |
| 2 | 705003668 | Oblong Grommet | 2 |
| 2 | 705011222 | Amber Reflector | 2 |
| 6 | 233251434 | Flange Elastic Nut M5 | 6 |
| 1 | 705009684 | Skid Plate | 1 |
| 2 | 293450307 | Insert Half Hex Body M8 x 1.25 | 2 |
| 2 | 205003044 | Socket Screw M10 x 30 | 2 |
| 2 | 233201434 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 705005620 | Reflective Sheet | 1 |
| 1 | 705005622 | Reflective Sheet | 1 |
| 1 | 705004988 | Panel Extension | 1 |
| 1 | 705004966 | Engine Cover | 1 |
| 6 | 705003264 | Grommet | 6 |
| 1 | 705010717 | RH Inner Fender | 1 |
| 1 | 705011891 | LH Inner Fender | 1 |
| 5 | 293150230 | Tuflok Plastic Rivet | 5 |
| 3 | 414479100 | Clip | 3 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 14 | 250000712 | Torx Screw M6 X 20 | 14 |
| 1 | 705009736 | Mudguard | 1 |
| 1 | 705009737 | RH Front Mudguard | 1 |
| 7 | 293150104 | Pop Rivet 3/16" | 7 |
