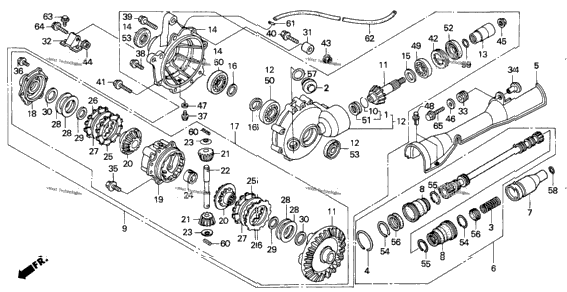

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 06910-HM7-610 | BEARING SET, NEEDLE | 1 |
| 1 | 12361-035-000 | CAP, TAPPET ADJUSTING HOLE | 1 |
| 12361-300-000 | CAP, VALVE ADJ. | ||
| 12361-371-980 | CAP, VALVE ADJ. | ||
| 1 | 40215-HM7-000 | SPRING, SHAFT | 1 |
| 1 | 40221-ME4-000 | RING, STOPPER | 1 |
| 40301-HM7-A00 | COVER, FR. PROPELLER SHAFT | ||
| 1 | 40400-HN0-A00 | SHAFT ASSY., FR. PROPELLER | 1 |
| 40402-HN0-A00 | JOINT, FR. PROPELLER SHAFT | ||
| 2 | 40410-HM7-A00 | BOOT A, PROPELLER | 2 |
| 41400-HM7-A00 | GEAR ASSY., FR. FINAL | ||
| 1 | 41405-HA7-670 | RING, STOPPER | 1 |
| 41410-HM7-610 | GEAR SET, FR. FINAL | ||
| 1 | 41411-HM7-610 | CASE SUB-ASSY., FR. GEAR | 1 |
| 1 | 41415-HM7-A00 | JOINT, FR. PINION | 1 |
| 1 | 41420-HM7-610 | COVER SUB-ASSY., FR. GEAR CASE | 1 |
| 1 | 41447-HM7-000 | SHIM L, PINION GEAR (1.64) | 1 |
| 1 | 41448-HM7-000 | SHIM M, PINION GEAR (1.70) | 1 |
| 1 | 41449-HM7-000 | SHIM N, PINION GEAR (1.76) | 1 |
| 1 | 41451-HA0-000 | SHIM A, PINION GEAR (1.82) | 1 |
| 41452-HA0-000 | SHIM B, PINION GEAR (1.88) | ||
| 41453-HA0-000 | SHIM C, PINION GEAR (1.94) | ||
| 1 | 41454-HA0-000 | SHIM D, PINION GEAR (2.00) | 1 |
| 41455-HA0-000 | SHIM E, PINION GEAR (2.06) | ||
| 41456-HA0-000 | SHIM F, PINION GEAR (2.12) | ||
| 41457-HA0-000 | SHIM G, PINION GEAR (2.18) | ||
| 2 | 41631-HC5-000 | SHIM A, DIFFERENTIAL CASE (0.50) | 2 |
| 2 | 41632-HC5-000 | SHIM B, DIFFERENTIAL CASE (0.55) | 2 |
| 2 | 41633-HC5-000 | SHIM C, DIFFERENTIAL CASE (0.60) | 2 |
| 2 | 41634-HC5-000 | SHIM D, DIFFERENTIAL CASE (0.65) | 2 |
| 2 | 41635-HC5-000 | SHIM E, DIFFERENTIAL CASE (0.70) | 2 |
| 2 | 41636-HC5-000 | SHIM F, DIFFERENTIAL CASE (0.75) | 2 |
| 2 | 41637-HC5-000 | SHIM G, DIFFERENTIAL CASE (0.80) | 2 |
| 2 | 41638-HC5-000 | SHIM H, DIFFERENTIAL CASE (0.85) | 2 |
| 2 | 41639-HC5-000 | SHIM I, DIFFERENTIAL CASE (0.90) | 2 |
| 2 | 41640-HC5-000 | SHIM J, DIFFERENTIAL CASE (0.95) | 2 |
| 2 | 41641-HC5-000 | SHIM K, DIFFERENTIAL CASE (1.00) | 2 |
| 2 | 41642-HC5-000 | SHIM L, DIFFERENTIAL CASE (1.05) | 2 |
| 2 | 41643-HC5-000 | SHIM M, DIFFERENTIAL CASE (1.10) | 2 |
| 2 | 41644-HC5-000 | SHIM N, DIFFERENTIAL CASE (1.15) | 2 |
| 2 | 41645-HC5-000 | SHIM O, DIFFERENTIAL CASE (1.20) | 2 |
| 2 | 41646-HC5-000 | SHIM P, DIFFERENTIAL CASE (1.25) | 2 |
| 2 | 41647-HC5-000 | SHIM Q, DIFFERENTIAL CASE (1.30) | 2 |
| 2 | 41648-HC5-000 | SHIM R, DIFFERENTIAL CASE (1.35) | 2 |
| 2 | 41649-HC5-000 | SHIM S, DIFFERENTIAL CASE (1.40) | 2 |
| 2 | 41650-HC5-000 | SHIM T, DIFFERENTIAL CASE (1.45) | 2 |
| 2 | 41651-HC5-000 | SHIM U, DIFFERENTIAL CASE (1.50) | 2 |
| 2 | 41652-HC5-000 | SHIM V, DIFFERENTIAL CASE (1.55) | 2 |
| 2 | 41653-HC5-000 | SHIM W, DIFFERENTIAL CASE (1.60) | 2 |
| 42400-HM7-610 | DIFFERENTIAL ASSY. | ||
| 42411-HC5-010 | CAP, R. DIFFERENTIAL CASE | ||
| 42421-HC5-000 | CASE, DIFFERENTIAL | ||
| 42431-HC5-000 | GEAR, DIFFERENTIAL SIDE | ||
| 42433-HC5-000 | PINION, DIFFERENTIAL (10T) | ||
| 42434-HA7-670 | SHAFT, DIFFERENTIAL PINION | ||
| 42435-HA7-671 | WASHER, DIFFERENTIAL PINION SIDE | ||
| 42436-HA7-670 | COLLAR, DIFFERENTIAL CENTER | ||
| 42532-HA7-671 | DISK A, DIFFERENTIAL CLUTCH FRICTION | ||
| 42533-HA7-671 | DISK B, DIFFERENTIAL CLUTCH FRICTION | ||
| 42534-HA7-671 | PLATE, DIFFERENTIAL CLUTCH | ||
| 42535-HC5-000 | SPRING, DIFFERENTIAL CLUTCH CONED | ||
| 42538-HA7-771 | WASHER (32X26X0.6) | ||
| 2 | 42541-HA7-671 | SEAT A, DIFFERENTIAL CLUTCH SPRING (1.00) | 2 |
| 42542-HA7-671 | SEAT B, DIFFERENTIAL CLUTCH SPRING (1.20) | ||
| 42543-HA7-671 | SEAT C, DIFFERENTIAL CLUTCH SPRING (1.40) | ||
| 42544-HA7-671 | SEAT D, DIFFERENTIAL CLUTCH SPRING (1.60) | ||
| 42545-HA7-671 | SEAT E, DIFFERENTIAL CLUTCH SPRING (1.80) | ||
| 1 | 50304-KS3-900 | COLLAR, FR. ENGINE HANGER | 1 |
| 1 | 50350-HC5-970 | BRACKET, FR. GEAR CASE | 1 |
| 6 | 90101-HA7-670 | BOLT, UBS (8X17) | 6 |
| 6 | 90101-HN2-680 | BOLT, UBS (8X17) | 6 |
| 6 | 90105-HC5-000 | BOLT, TORX (8X14) | 6 |
| 1 | 90109-371-000 | BOLT, SEALING (8MM) | 1 |
| 6 | 90133-MB0-000 | BOLT, FLANGE (8X27) | 6 |
| 2 | 90134-HA0-000 | BOLT, FLANGE (10X35) | 2 |
| 1 | 90151-HC5-000 | BOLT, FLANGE (10X62) | 1 |
| 1 | 90154-HC5-000 | BOLT, FLANGE (10X48) | 1 |
| 1 | 90242-MB0-000 | NUT, LOCK (64MM) | 1 |
| 1 | 90305-HC0-770 | NUT, SELF-LOCK (10MM) | 1 |
| 1 | 90309-KF0-003 | NUT, FLANGE (8MM) | 1 |
| 1 | 90309-428-731 | NUT, FLANGE (M8X1.25) (SELF-LOCK) | 1 |
| 1 | 90381-HA0-000 | NUT, HEX. (16MM) | 1 |
| 1 | 90439-MB0-000 | WASHER, RR. COVER GROMMET | 1 |
| 1 | 90471-580-000 | GASKET (8MM) | 1 |
| 2 | 90653-HC4-900 | CLIP, SPLASH GUARD | 2 |
| 1 | 91003-P24-J01 | BEARING, BALL (22X62X15) | 1 |
| 2 | 91052-HC5-003 | BEARING, RADIAL BALL (29X52X12) (NTN) | 2 |
| 2 | 91052-HC5-004 | BEARING, RADIAL BALL (29X52X12) (KOYO) | 2 |
| 1 | 91061-HA7-672 | BEARING, NEEDLE (14X24.5X15) (KOYO) | 1 |
| 1 | 91061-HC4-003 | BEARING, NEEDLE (14X24.5X15) (NTN) | 1 |
| 1 | 91251-HM7-003 | OIL SEAL (34X70X11) | 1 |
| 2 | 91252-HC5-003 | OIL SEAL (22X48X7) (ARAI) | 2 |
| 2 | 91301-HM7-A00 | BAND, BOOT (D32) | 2 |
| 2 | 91302-HM7-A00 | BAND, BOOT (D27) | 2 |
| 2 | 91302-HM7-003 | SEAL A, RUBBER | 2 |
| 1 | 91302-001-020 | O-RING (30.8MM) | 1 |
| 1 | 91311-MB0-003 | O-RING (18.5X2.4) (ARAI) | 1 |
| 91352-HA2-003 | O-RING (21.5X3.1) | ||
| 2 | 94305-40222 | PIN, SPRING (4X22) | 2 |
| 1 | 95002-35000 | CLIP, TUBE (C6.5) | 1 |
| 1 | 95005-35001-30M | BULK HOSE, VACUUM (3.5X1000) (3.5X575) | 1 |
| 2 | 95701-08016-07 | BOLT, FLANGE (8X16) | 2 |
| 1 | 95801-08030-00 | BOLT, FLANGE (8X30) | 1 |
| 1 | 96001-06025-07 | BOLT, FLANGE (6X25) | 1 |
