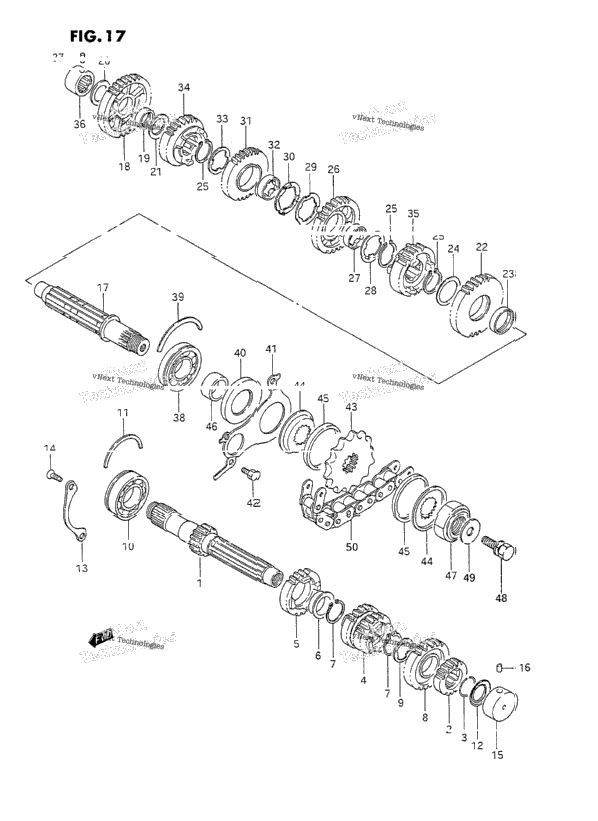

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 24121-19C01 | COUNTERSHAFT (NT:12) MODEL J/K/L/M | ||
| 24121-20C00 | COUNTERSHAFT (NT:12) MODEL N/P | ||
| 24121-20C10 | COUNTERSHAFT (NT:12) MODEL R/S/T | ||
| 24221-27A01 | GEAR, 2ND DRIVE (NT:16) MODEL J/K/L/M/N/P | ||
| 24221-27A10 | GEAR, 2ND DRIVE (NT:16) MODEL R/S | ||
| 24221-27A01 | GEAR, 2ND DRIVE (NT:16) MODEL T | ||
| 1 | 09380-25012 | CIRCLIP MODEL J/K/L/M | 1 |
| 1 | 09380-25013 | CIRCLIP MODEL N/P/R/S/T | 1 |
| 24231-27A00 | GEAR, 3/4TH DRIVE (NT:17/20) MODEL J/K/L/M/N/P | ||
| 24231-27A10 | GEAR, 3/4TH DRIVE (NT:17/20) MODEL R/S | ||
| 24231-27A00 | GEAR, 3/4TH DRIVE (NT:17/20) MODEL T | ||
| 24251-27A01 | GEAR, 5TH DRIVE (NT:22) | ||
| 1 | 09301-25001 | BUSH | 1 |
| 2 | 09380-25003 | RING,SNAP | 2 |
| 24261-27A00 | GEAR, 6TH DRIVE (NT:21) ~E.NO.129569 | ||
| 24261-17C01 | GEAR, 6TH DRIVE (NT:21) E.NO.129570~ | ||
| 1 | 09167-25012 | WASHER,LOCK (25.1X31X1.0) | 1 |
| 1 | 09262-25051 | BEARING, RH MODEL J/K/L/M/N/P/R | 1 |
| 09262-25115 | BEARING, RH MODEL S/T | ||
| 1 | 09390-62006 | C RING MODEL J/K/L/M/N/P/R | 1 |
| 1 | 09390-62012 | C RING MODEL S/T | 1 |
| 1 | 09285-20006 | OIL SEAL | 1 |
| 1 | 24741-27A00 | HOLDER, BEARING | 1 |
| 2 | 02122-06167 | SCREW MODEL J/K/L/M/N/P | 2 |
| 2 | 02122-06163 | SCREW MODEL R/S/T | 2 |
| 1 | 09263-20049 | BEARING, LH | 1 |
| 1 | 04221-07129 | PIN | 1 |
| 24131-27A02 | DRIVESHAFT MODEL J/K/L/M/N/P/R | ||
| 24131-20C00 | DRIVESHAFT MODEL S/T | ||
| 24311-19C01 | GEAR, 1ST DRIVEN (NT:37) MODEL J/K/L/M/N/P | ||
| 24311-19C10 | GEAR, 1ST DRIVEN (NT:37) MODEL R/S/T | ||
| 1 | 09300-22008 | BUSH | 1 |
| 1 | 08211-20341 | WASHER, RH | 1 |
| 1 | 08211-22341 | WASHER, LH | 1 |
| 24321-27A02 | GEAR, 2ND DRIVEN (NT:33) MODEL J/K/L/M/N/P/R | ||
| 24321-20C10 | GEAR, 2ND DRIVEN (NT:33) MODEL S/T | ||
| 24321-20C00 | GEAR, 2ND DRIVEN (NT:33) MODEL T | ||
| 09300-28001 | BUSH MODEL J/K/L/M/N/P/R | ||
| 09300-28003 | BUSH MODEL S/T | ||
| 1 | 08211-28381 | WASHER | 1 |
| 3 | 08331-31286 | CIRCLIP | 3 |
| 24331-27A00 | GEAR, 3RD DRIVEN (NT:28) ~E.NO.129569 | ||
| 24331-17D00 | GEAR, 3RD DRIVEN (NT:28) E.NO.129570~ | ||
| 24331-27A10 | GEAR, 3RD DRIVEN (NT:28) MODEL S | ||
| 24331-27A00 | GEAR, 3RD DRIVEN (NT:28) MODEL T | ||
| 24332-27A00 | BUSH | ||
| 1 | 09167-28001 | WASHER, LH | 1 |
| 1 | 09167-28002 | WASHER, RH (T:1.5) | 1 |
| 1 | 09169-28001 | WASHER, RH (T:1.0) | 1 |
| 24341-27A00 | GEAR, 4TH DRIVEN (NT:28) MODEL J/K/L/M | ||
| 24341-27A01 | GEAR, 4TH DRIVEN (NT:28) MODEL N/P/R/S/T | ||
| 1 | 09167-28001 | WASHER, RH | 1 |
| 24351-27A00 | GEAR, 5TH DRIVEN (NT:27) | ||
| 24361-27A02 | GEAR, 6TH DRIVEN (NT:23) ~E.NO.129569 | ||
| 24361-27A03 | GEAR, 6TH DRIVEN (NT:23) E.NO.129569~ | ||
| 24361-20C00 | GEAR, 6TH DRIVEN (NT:23) MODEL S/T | ||
| 1 | 09263-20040 | BEARING (20X34X20) | 1 |
| 1 | 04221-07209 | PIN (L:20) | 1 |
| 1 | 09262-25105 | BEARING, LH MODEL J/K/L/M/N/P/R | 1 |
| 09262-25115 | BEARING, LH MODEL S/T | ||
| 1 | 09283-34005 | OIL SEAL | 1 |
| 24751-27A01 | PLATE | ||
| 4 | 01107-06107 | SCREW MODEL J/K/L/M/N/P | 4 |
| 4 | 01500-06123 | SCREW MODEL R/S/T | 4 |
| 27511-27A11 | SPROCKET, ENGINE (NT:14) | ||
| 2 | 27516-19C00 | HOLDER, DAMPER | 2 |
| 27517-31300 | DAMPER, ENGINE SPROCKET | ||
| 09180-25090 | SPACER (25X34X16.1) | ||
| 1 | 09159-20004 | NUT | 1 |
| 1 | 01147-06168 | BOLT MODEL J/K/L/M/N/P | 1 |
| 1 | 01570-06163 | BOLT MODEL R/S/T | 1 |
| 1 | 08212-06222 | WASHER | 1 |
| 1 | 27600-19C00-112 | CHAIN, DRIVE (112LE) DID | 1 |
