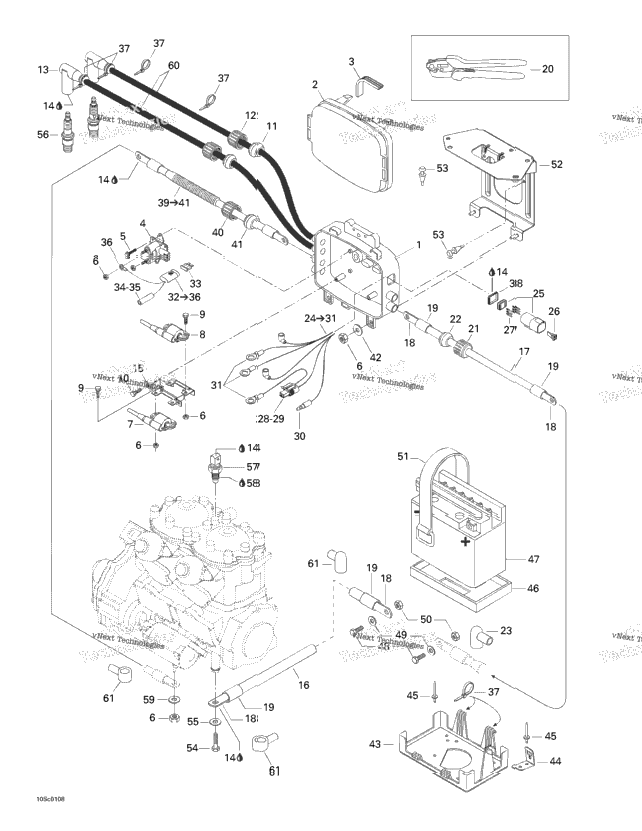

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001712 | Electrical Box Base | ||
| 1 | 278001433 | ELECTRIC BOX COVER | 1 |
| 278001173 | GASKET | ||
| 1 | 278001641 | Starter Relay | 1 |
| 2 | 210261040 | Hex. Flange Screw M6 X 10 | 2 |
| 9 | 232561600 | Hex. Elastic Stop Nut M6 | 9 |
| 278001415 | Ignition Coil (MAG) | ||
| 1 | 278001573 | IGNITION COIL (PTO) | 1 |
| 4 | 207162060 | Hex. Forming Screw M6 X 20 | 4 |
| 209561640 | Hex. Screw M6 X 16 | ||
| 278000682 | Grommet | ||
| 278000100 | Electric Wire Cap | ||
| 2 | 278000237 | Spark Plug Cap | 2 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 278001421 | Ignition Coil Support | ||
| 278001489 | Ground Cable, Black Includes 18 to 19 | ||
| 278001438 | Starter Positive Cable, Red Includes 18 to 22 | ||
| XXXX | Not Available As Spare Part - Flat Terminal (Small Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 45 Deg. (Small Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 90 Deg. (Small Hole) | ||
| XXXX | Not Available As Spare Part - Flat Terminal (Big Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 45 Deg. (Big Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 90 Deg. (Big Hole) | ||
| XXXX | Not Available As Spare Part - Flat Terminal | ||
| XXXX | Not Available As Spare Part - Heat Shrink | ||
| XXXX | Not Available As Spare Part - Crimp Plier | ||
| 278000098 | GROMMET | ||
| 1 | 278000020 | PROTECTION CAP | 1 |
| 278001422 | Electric Box Harness Includes 24 - 31. | ||
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 6 | 278000631 | Male Terminal | 6 |
| 1 | 278001113 | Male Connector, 2 Circuits | 1 |
| 2 | 278001114 | Female Terminal | 2 |
| 1 | 278000230 | Male Terminal | 1 |
| 278000300 | Ring Terminal | ||
| 278001212 | Fuse Harness (15 Amperes) Includes 32 - 36. | ||
| 1 | 278000343 | Fuse, 15 Amperes | 1 |
| 1 | 278001009 | Female Terminal | 1 |
| 1 | 278001007 | Insulated Sheath | 1 |
| 6 | 293750002 | Tie Wrap 142 mm | 6 |
| 293200030 | Gasket | ||
| 278001091 | Starter Positive Cable, Red Includes 39 - 41. | ||
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 278001430 | Battery Support | ||
| 1 | 293850029 | Strap Clip | 1 |
| 4 | 293150037 | Avdel Rivet 3/16" | 4 |
| 278001234 | Battery Lower Pad | ||
| 1 | 278000712 | Battery | 1 |
| 2 | 211000045 | Battery Screw | 2 |
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 211100022 | Battery Nut M6 | 2 |
| 2 | 293850021 | Rubber Strap | 2 |
| 278001615 | BOX SUPPORT | ||
| 4 | 293830005 | Rubber Bumper | 4 |
| 1 | 207302060 | Hex. Screw M10 X 20, Scotch Grip | 1 |
| 1 | 234001600 | Flat Washer 10 mm, Stainless | 1 |
| 2 | 278000609 | Spark Plug, NGK BR8-ES | 2 |
| 1 | 278001016 | Temperature Sensor | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 278001268 | Spark Plug Wire | 1 |
| 3 | 278000020 | PROTECTION CAP | 3 |
