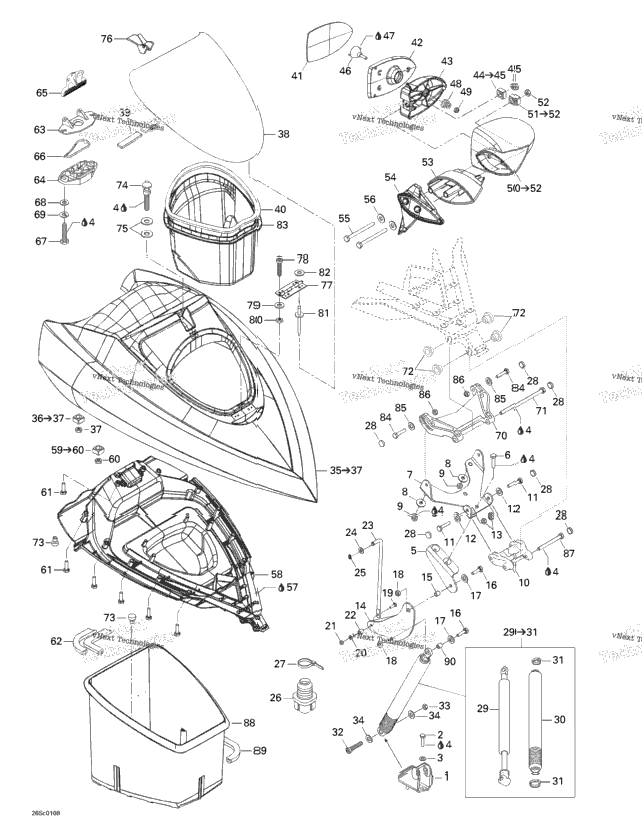

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 291001013 | Shock Support | ||
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 269500846 | SUPPORT LEVER | 1 |
| 2 | 207162060 | Hex. Forming Screw M6 X 20 | 2 |
| 269500708 | Pivot Support | ||
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 269500704 | FRONT ARM | 1 |
| 2 | 211000022 | HEX. SPECIAL SCREW M6 X 25 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 269500840 | Lever | ||
| 291000536 | Spacer | ||
| 1 | 207141660 | Hex. Screw M4 X 16 | 1 |
| 1 | 234041600 | Flat Washer 4 mm, Stainless | 1 |
| 1 | 232541600 | Elastic Stop Nut M4 | 1 |
| 269500841 | Spacer | ||
| 1 | 269500842 | ROD | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 293370005 | CIRCLIP 6 MM | ||
| 293720063 | Cable Grommet | ||
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 6 | 414436900 | Black Snap Cap | 6 |
| 1 | 269500843 | GAZ SHOCK ASS'Y Includes 29 - 31. | 1 |
| 269500845 | Bellow | ||
| 2 | 293750001 | Tie Wrap 94 mm | 2 |
| 205564560 | Socket Head Screw M6 x 45 (Scotch Grip) | ||
| 1 | 232361600 | Nut M6 | 1 |
| 269500891 | Cover (Mazatlan Blue) Includes 35 - 37. RX (BLUE). | ||
| 269500903 | Cover (Metallic Pewter) RX (YELLOW). | ||
| 1 | 269500252 | M6 Nut Housing Ass'y Includes 36 - 37. | 1 |
| 1 | 232061600 | Hex. Nut M6 | 1 |
| 269500902 | Access Cover (Mazatlan Blue) RX (BLUE). | ||
| 269500700 | Access Cover (Metallic Pewter) RX (YELLOW). | ||
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 269500687 | RH Mirror | ||
| 269500788 | LH Mirror | ||
| 269500697 | Frame Mirror | ||
| 269500807 | Housing Support | ||
| 2 | 269500813 | Nut Housing Ass’Y Includes 44 - 45. | 2 |
| 2 | 232581650 | Elastic Stop Nut M8 | 2 |
| 269500079 | MIRROR BALL JOINT | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 2 | 269500453 | Mirror Spring | 2 |
| 269501893 | RH Mirror Shell (Mazatlan Blue) Includes 50 - 52. RX (BLUE). | ||
| 269501023 | RH Mirror Shell (Metallic Pewter) RX (YELLOW). | ||
| 269500895 | LH mirror shell RX (BLUE). | ||
| 269501026 | LH Mirror Shell (Metallic Pewter) RX (YELLOW). | ||
| 2 | 269500813 | Nut Housing Ass’Y Includes 51 - 52. | 2 |
| 269500897 | RH Mirror Support RX (BLUE). | ||
| 269500818 | RH Mirror Support (Metallic Pewter) RX (YELLOW). | ||
| 269500899 | LH Mirror Support RX (BLUE). | ||
| 269500819 | LH Mirror Support (Metallic Pewter) RX (YELLOW). | ||
| 269500792 | RH Spacer | ||
| 269500793 | LH Spacer | ||
| 4 | 230082060 | HEX. SCREW M8 X 120 | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 1 | 413708300 | Glue Tube, Loctite 454, 20 G | 1 |
| 269500702 | Lower Strorage Cover | ||
| 2 | 269500252 | M6 Nut Housing Ass'y Includes 59 - 60. | 2 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 18 | 241141360 | Hex. Flange Screw K40 X 13 | 18 |
| 1 | 269700020 | Latch Cover | 1 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 269000016 | Latch Lever | 1 |
| 269700017 | Latch Spring | ||
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 269500705 | REAR ARM | ||
| 1 | 230060060 | Hex. Screw M6 X 100 | 1 |
| 4 | 269500706 | Sleeve | 4 |
| 3 | 293830005 | Rubber Bumper | 3 |
| 1 | 291001242 | Anchoring Stud | 1 |
| 1 | 269500530 | Latch | 1 |
| 1 | 269500338 | HINGE | 1 |
| 2 | 205451660 | Socket Head Screw M5 X 16 | 2 |
| 2 | 234052600 | Flat Washer 5 mm, Stainless | 2 |
| 2 | 232551600 | Hex. Elastic Nut M5 | 2 |
| 2 | 204000081 | Pop Rivet 3/16" | 2 |
| 269500339 | GLOVES BOX | ||
| 1 | 207066060 | HEX. SCREW M6 X 60 | 1 |
| 1 | 269500691 | STORAGE TRAY | 1 |
| 1 | 219704368 | Seal Tray 1000Mm Long | 1 |
| XXXX | Not Available As Spare Part - Spacer |
