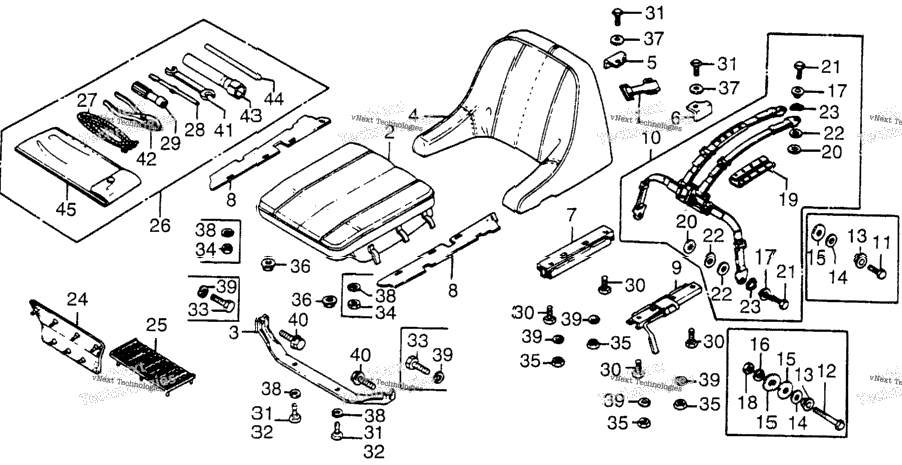

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 70284-538-010 | BAND, WIRE HARNESS | ||
| 70284-634-000 | BAND, TOOL BAG MOUNTING | ||
| 77200-950-003A | CUSHION ASSY., SEAT *NH1* (BLACK) | ||
| 77200-950-013ZA | CUSHION ASSY., SEAT *NH1* (BLACK) | ||
| 77205-950-000 | STAY, SEAT SETTING | ||
| 77210-950-013A | BACK ASSY., SEAT *NH1* (BLACK) | ||
| 77210-950-023ZA | BACK ASSY., SEAT *NH1* (BLACK) | ||
| 77215-950-000 | COVER, R. SEAT ADJUSTER | ||
| 77216-950-000 | COVER, L. SEAT ADJUSTER | ||
| 77510-950-000 | ADJUSTER ASSY., R. SEAT | ||
| 77515-950-000 | GUARD, SEAT ADJUSTER DUST | ||
| 77520-950-000 | ADJUSTER ASSY., L. SEAT | ||
| 77610-950-003 | SEAT BELT ASSY. (ASHIMORI) Use from Frame SN 1005001 | ||
| 77610-950-013 | SEAT BELT ASSY. (ASHIMORI) Use from Frame SN 1005001 | ||
| 77611-950-000 | BOLT, SEAT BELT Use up to Frame SN 1001560 | ||
| 77611-950-303 | BOLT, SEAT BELT Use up to Frame SN 1001560 | ||
| 77612-950-003 | BUSH, SEAT BELT Use up to Frame SN 1001560 | ||
| 77612-950-003 | BUSH, SEAT BELT Use from Frame SN 1001561 to 1005000 | ||
| 77613-950-000 | WASHER, SEAT BELT Use up to Frame SN 1005000 | ||
| 77614-950-000 | WASHER, SPECIAL SEAT BELT Use up to Frame SN 1001560 | ||
| 77614-950-303 | WASHER, SEAT BELT SPRING Use up to Frame SN 1001560 | ||
| 77615-634-005 | BUSH, SEAT BELT Use from Frame SN 1005001 | ||
| 77615-950-303 | NUT, SEAT BELT Use up to Frame SN 1001560 | ||
| 77620-950-003 | PAD, SHOULDER BELT | ||
| 77621-634-005 | WASHER, TOOTHED Use from Frame SN 1005001 | ||
| 77625-634-005 | BOLT, SEAT BELT Use from Frame SN 1005001 | ||
| 77638-634-005 | WASHER, SEAT BELT Use from Frame SN 1005001 | ||
| 77644-634-005 | WASHER, WAVE Use from Frame SN 1005001 | ||
| 80131-950-000 | MAT, STEP (UPPER) | ||
| 80132-950-000 | MAT, STEP (LOWER) | ||
| 89000-950-000 | TOOL SET | ||
| 89101-950-000 | ROPE, EMERGENCY STARTER | ||
| 1 | 89102-538-000 | SHAFT, SCREWDRIVER | 1 |
| 1 | 89103-538-000 | GRIP | 1 |
| 90108-504-000 | BOLT, HEX. (8X14) | ||
| 4 | 92000-06012 | BOLT, HEX. (6X12) | 4 |
| 4 | 92101-06012 | BOLT, HEX. (6X12) | 4 |
| 4 | 92101-06012-0A | BOLT, HEX. (6X12) | 4 |
| 2 | 92000-08016-0A | BOLT, HEX. (8X16) | 2 |
| 2 | 92101-08016-0A | BOLT, HEX. (8X16) | 2 |
| 2 | 90310-KA3-711 | NUT, HEX. (6MM) | 2 |
| 2 | 94000-06000-0S | NUT, HEX. (6MM) | 2 |
| 2 | 94001-06000 | NUT, HEX. (6MM) | 2 |
| 2 | 94001-06000-0S | NUT, HEX. (6MM) | 2 |
| 2 | 94001-06008-0S | NUT, HEX. (6MM) | 2 |
| 2 | 94001-06200-0S | NUT, HEX. (6MM) | 2 |
| 2 | 94030-06000 | NUT, HEX. (6MM) | 2 |
| 4 | 94001-08000-0S | NUT, HEX. (8MM) | 4 |
| 2 | 94103-06000 | WASHER, PLAIN (6MM) | 2 |
| 4 | 94111-06000 | WASHER, SPRING (6MM) | 4 |
| 6 | 94111-08000 | WASHER, SPRING (8MM) | 6 |
| 1 | 99001-10120 | WRENCH (10X12) (OPEN END) | 1 |
| 1 | 99002-13500 | PLIERS (135MM) | 1 |
| 1 | 99004-21003 | WRENCH, BOX (P21) | 1 |
| 1 | 99005-01000 | BAR A, HANDLE | 1 |
| 89101-ME5-670 | BAG, TOOL | ||
| 99008-02000 | BAG, TOOL (200MM) |
