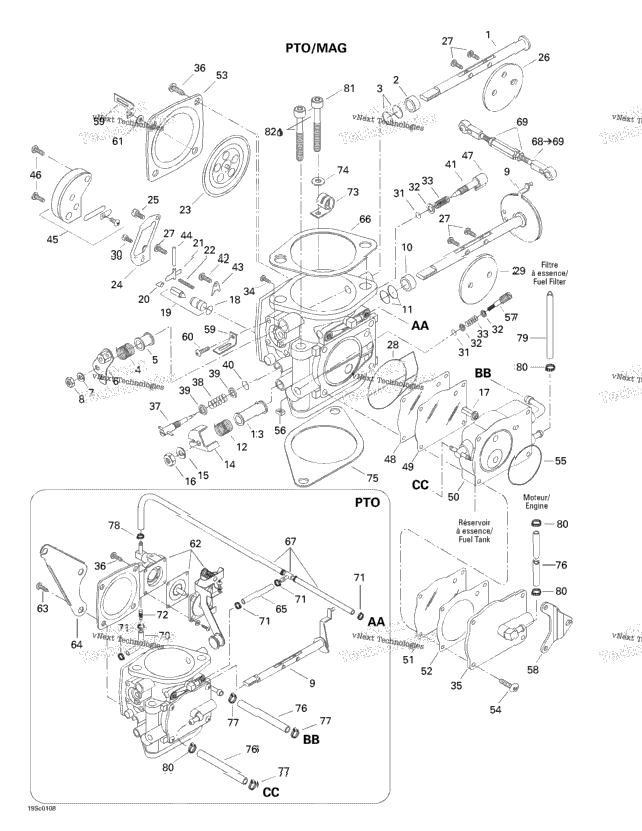

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 270500790 | Carburetor BN46i-42-14 (MAG Side) Includes 1 - 65. | ||
| 270500417 | Carburetor BN46i-42-12 (P.T.O Side) | ||
| XXXX | Not Available As Spare Part - Choke Shaft Ass'y | ||
| 1 | 270500239 | RING | 1 |
| 2 | 270500234 | SEALING RING | 2 |
| 270500382 | Spring | ||
| 270500381 | Ring | ||
| 270500431 | Choke lever | ||
| 270500230 | Spring Washer | ||
| 1 | 270500229 | NUT | 1 |
| XXXX | Not Available As Spare Part - Throttle Shaft Ass'y (MAG) | ||
| XXXX | Not Available As Spare Part - Throttle Shaft Ass'y (PTO) | ||
| 270500353 | Ring | ||
| 270500435 | Ring | ||
| 270500222 | Sealing Ring | ||
| 270500379 | Spring | ||
| 270500413 | Spring | ||
| 270500378 | Ring | ||
| 270500436 | Throttle Lever | ||
| 270500412 | Throttle Lever | ||
| 1 | 270500011 | SPRING WASHER | 1 |
| 270500376 | Nut | ||
| 1 | 270500115 | FUEL FILTER | 1 |
| 1 | 270500127 | O-RING | 1 |
| 1 | 270500208 | Needle Valve 2.0 | 1 |
| 1 | 270500129 | CLIP | 1 |
| 1 | 270500128 | NEEDLE VALVE LEVER | 1 |
| 270500313 | Spring | ||
| 1 | 270500132 | DIAPHRAGM ASS'Y | 1 |
| 1 | 270500131 | GASKET | 1 |
| 270500371 | Main Jet 162.5 | ||
| XXXX | Not Available As Spare Part - Choke Valve | ||
| 5 | 270500156 | SCREW | 5 |
| 1 | 270500370 | O-RING | 1 |
| XXXX | Not Available As Spare Part - Throttle Valve | ||
| 270500427 | PILOT JET 75 | ||
| 2 | 270500144 | O-RING | 2 |
| 1 | 270500144 | O-RING | 1 |
| 270500136 | Washer | ||
| 2 | 270500091 | SPRING | 2 |
| 1 | 270500091 | SPRING | 1 |
| 270500228 | Screw | ||
| 270500409 | Pump Cover | ||
| 270500405 | Pump Cover | ||
| 270500243 | Screw | ||
| 270500322 | Screw | ||
| 1 | 270500020 | IDLE ADJUSTING SCREW | 1 |
| 270500019 | SPRING | ||
| 270500018 | Washer | ||
| 270500119 | O-RING | ||
| 270500113 | Adjuster Screw | ||
| 270500155 | Screw And Spring Washer | ||
| 1 | 270500125 | PLATE | 1 |
| 270500038 | Pin | ||
| 1 | 270500124 | VALVE ASS'Y | 1 |
| 2 | 270500123 | SCREW | 2 |
| 270500154 | Cap | ||
| 1 | 270500369 | DIAPHRAGM | 1 |
| 270500368 | DIAPHRAGM | ||
| 270500439 | Body Pump Ass'y | ||
| 270500366 | DIAPHRAGM | ||
| 1 | 270500365 | GASKET | 1 |
| 1 | 270500133 | COVER | 1 |
| 270500303 | Screw | ||
| 270500363 | O-Ring | ||
| 270500249 | Nut | ||
| 270500288 | Adjuster Screw | ||
| 270500440 | Cable Support | ||
| 270500359 | Plate | ||
| 270500358 | Screw | ||
| 270500402 | Washer | ||
| 270500433 | Diaphragm Cover | ||
| 2 | 270500238 | SCREW | 2 |
| 270500403 | Bracket | ||
| 270500342 | Hose | ||
| 2 | 270500384 | GASKET | 2 |
| 270500441 | H ose Ass'y | ||
| 270500319 | Carburator Linkage Includes 68 - 70. | ||
| 270500351 | Nut | ||
| 270500352 | Nut | ||
| 270500442 | Hose | ||
| 5 | 270500401 | Clip | 5 |
| 270500443 | Jet | ||
| 293850018 | Clip | ||
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 293250066 | Gasket | ||
| 1 | 219704396 | HOSE-6MM. 5000MM LONG | 1 |
| 3 | 293650042 | Oetiker Clamp | 3 |
| 1 | 293650071 | OETIKER CLAMP | 1 |
| 293500345 | Hose | ||
| 4 | 293650038 | Oetiker Clamp | 4 |
| 231182060 | SOCKET HEAD SCREW M8 X 120, SCOTCHGRIP | ||
| 293550010 | Synthetic Grease, 400 G |
