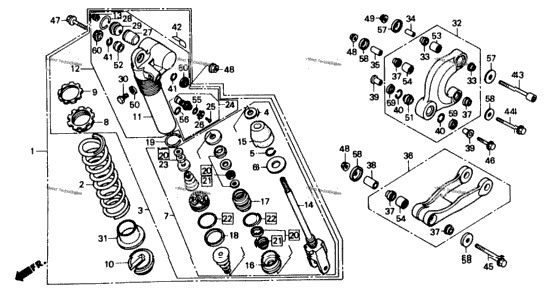

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 52400-ML3-841 | SHOCK ABSORBER ASSY., RR. (SHOWA) | ||
| 52401-KS7-771 | SPRING, RR. SHOCK ABSORBER (50.99N/MM,5.2KG/MM) (SHOWA) (PINK) (Optional). | ||
| 52403-ML3-771 | SPRING, RR. SHOCK ABSORBER (59.0N/MM,6.0KGF/MM) (SHOWA) (Optional). | ||
| 52401-KS7-831 | SPRING, RR. SHOCK ABSORBER (54.92N/MM,5.6KG/MM) (SHOWA) (YELLOW) (Optional). | ||
| 52401-ML3-841 | SPRING, RR. SHOCK ABSORBER (59.0N/MM,6.0KGF/MM) (SHOWA) (BLACK) | ||
| 52403-ML3-810 | SPRING, RR. SHOCK ABSORBER (62.76N/MM,6.4KGF/MM) (SHOWA) (Optional). | ||
| 52410-ML3-841 | DAMPER, RR. (SHOWA) | ||
| 52417-KA4-831 | SEAT, RUBBER (SHOWA) | ||
| 52418-KA4-831 | RING C, STOPPER (SHOWA) | ||
| 52419-KS7-701 | WASHER | ||
| 52421-ML3-841 | ROD, PISTON (SHOWA) | ||
| 1 | 52422-KS7-701 | ADJUSTER, SPRING | 1 |
| 1 | 52423-KS7-701 | NUT, ADJUSTER | 1 |
| 52424-KS7-701 | STOPPER, SPRING SEAT | ||
| 52425-ML3-841 | CASE, SHOCK ABSORBER (SHOWA) | ||
| 1 | 52425-381-771 | CAP, AIR VALVE | 1 |
| 52426-ML3-841 | ROD (SHOWA) | ||
| 52427-KS7-701 | RUBBER, STOPPER | ||
| 52428-KA4-832 | PLATE, END (SHOWA) | ||
| 52429-ML3-841 | CASE, ROD GUIDE (SHOWA) | ||
| 1 | 52431-KA4-831 | RING, PISTON (SHOWA) | 1 |
| 52435-KA4-831 | RING, STOPPER (SHOWA) | ||
| 52436-ML3-305 | OIL SEAL SET (SHOWA) | ||
| 1 | 52437-KA4-841 | O-RING SET (SHOWA) | 1 |
| 1 | 52438-KA4-741 | NUT, HEX. (12MM) | 1 |
| 52440-ML3-841 | BOLT, PLUG (SHOWA) | ||
| 52448-KS7-003 | SCREW, CROSS-RECESSED HEAD MACHINE | ||
| 52449-ML3-841 | PLATE B, ADJUSTING (SHOWA) | ||
| 52451-KS7-701 | BLADDER (SHOWA) | ||
| 52452-KS7-701 | RING, STOPPER (SHOWA) | ||
| 52453-KS7-701 | CAP, CHAMBER (SHOWA) | ||
| 52454-KS7-701 | BOLT, DRAIN (SHOWA) | ||
| 52458-KS7-701 | SEAT, SPRING | ||
| 52460-KA3-831 | ARM ASSY., SHOCK ABSORBER | ||
| 52462-KA3-831 | BUSH, DAMPER ARM | ||
| 52463-KA3-830 | COLLAR, CUSHION ARM PIVOT | ||
| 52464-KA3-830 | COLLAR, CUSHION ARM | ||
| 52470-KS6-000 | ROD ASSY., RUBBER CONNECTING | ||
| 52472-KA3-831 | BUSH, SHOCK CONNECTING ROD THRUST | ||
| 52473-KA3-830 | COLLAR, CONNECTING ROD PIVOT | ||
| 52486-KA3-731 | COLLAR, SHOCK ABSORBER (UPPER) | ||
| 52487-KA3-731 | RING, STOPPER | ||
| 2 | 52487-KA4-831 | RING, STOPPER (SHOWA) | 2 |
| 87516-KS7-771 | LABEL, RR. DAMPER WARNING | ||
| 90128-KS6-700 | BOLT, SOCKET (12X86) | ||
| 1 | 90129-KF0-000 | BOLT, FLANGE (10X77) | 1 |
| 90130-KS6-700 | BOLT, FLANGE (10X83) | ||
| 90153-KA3-730 | BOLT, FLANGE (10X48) | ||
| 90154-KA3-830 | BOLT, FLANGE (10X52) | ||
| 3 | 90304-GA6-003 | NUT, AXLE (10MM) | 3 |
| 1 | 90306-KA4-003 | NUT, FLANGE (12MM) | 1 |
| 1 | 90306-181-761 | NUT, FLANGE (12MM) | 1 |
| 1 | 90544-283-000 | WASHER, SPECIAL (8MM) | 1 |
| 1 | 91077-KA3-731 | BEARING, SPHERICAL (14MM) | 1 |
| 1 | 91077-KN5-004 | BEARING, SPHERICAL (14MM) | 1 |
| 1 | 91077-KS7-013 | BEARING, SPHERICAL (10.1MM) | 1 |
| 91078-KA3-831 | BEARING, NEEDLE (19.1X26.1X27) (TOYO) | ||
| 2 | 91079-KA3-831 | BEARING, NEEDLE (17.5X24.5X22) | 2 |
| 1 | 91256-ML3-841 | O-RING (13.5X1.5) (SHOWA) | 1 |
| 91256-GE2-003 | O-RING (19.8X2.4) | ||
| 2 | 91261-KS6-701 | SEAL, CUSHION ARM PIVOT | 2 |
| 91262-KA3-831 | SEAL, RUBBER CONNECTING ROD PIVOT | ||
| 2 | 91351-KA3-731 | DUST SEAL, RR. SHOCK (UPPER) | 2 |
| 2 | 91351-KS7-003 | DUST SEAL, RR. SHOCK (UPPER) (SHOWA) | 2 |
