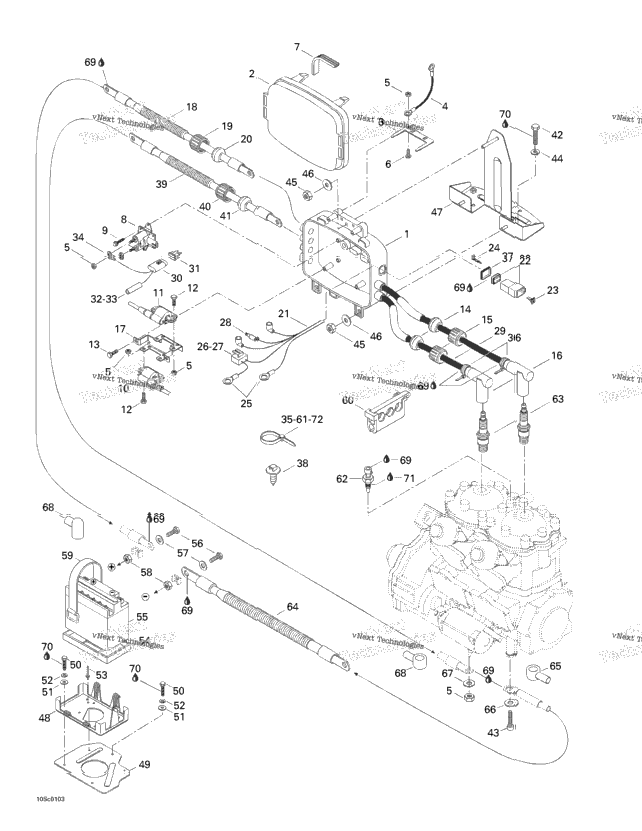

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001425 | ELECTRIC BOX BASE | ||
| 1 | 278001433 | ELECTRIC BOX COVER | 1 |
| 278000732 | Ground Plate | ||
| 278001501 | Ground Wire | ||
| 8 | 232561600 | Hex. Elastic Stop Nut M6 | 8 |
| 1 | 205461060 | Socket Head Screw M6 X 10 | 1 |
| 278001173 | GASKET | ||
| 1 | 278001376 | Starter Relay | 1 |
| 2 | 210261040 | Hex. Flange Screw M6 X 10 | 2 |
| 278001476 | IGNITION COIL (MAG) | ||
| 278001414 | COIL-IGNITION | ||
| 4 | 207162060 | Hex. Forming Screw M6 X 20 | 4 |
| 209561640 | Hex. Screw M6 X 16 | ||
| 278000682 | Grommet | ||
| 278000100 | Electric Wire Cap | ||
| 2 | 278000237 | Spark Plug Cap | 2 |
| 278001421 | Ignition Coil Support | ||
| 278001281 | Battery Positive Cable, Red Includes 18 - 20. | ||
| 278000098 | GROMMET | ||
| 278001422 | Electric Box Harness Includes 21 - 28. | ||
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 6 | 278000631 | Male Terminal | 6 |
| 278000300 | Ring Terminal | ||
| 1 | 278001113 | Male Connector, 2 Circuits | 1 |
| 2 | 278001114 | Female Terminal | 2 |
| 1 | 278000230 | Male Terminal | 1 |
| 1 | 278001268 | Spark Plug Wire | 1 |
| 278001212 | Fuse Harness (15 Amperes) Includes 30 - 34. | ||
| 1 | 278000343 | Fuse, 15 Amperes | 1 |
| 1 | 278001009 | Female Terminal | 1 |
| 1 | 278001007 | Insulated Sheath | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 293200030 | Gasket | ||
| 1 | 293730018 | Mount Dart | 1 |
| 278001091 | Starter Positive Cable, Red Includes 39 - 41. | ||
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” | 4 |
| 1 | 207302060 | Hex. Screw M10 X 20, Scotch Grip | 1 |
| 4 | 234151601 | Helical Lock Washer M5 | 4 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 | 3 |
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 278001418 | Box Support | ||
| 1 | 278001580 | BATTERY SUPPORT | 1 |
| 292000614 | Support Plate | ||
| 3 | 211000023 | Hex. Screw 10-14 X 7/8” | 3 |
| 3 | 234052600 | Flat Washer 5 mm, Stainless | 3 |
| 3 | 234151601 | Helical Lock Washer M5 | 3 |
| 2 | 293150037 | Avdel Rivet 3/16" | 2 |
| 278001234 | Battery Lower Pad | ||
| 1 | 278000712 | Battery | 1 |
| 2 | 211000045 | Battery Screw | 2 |
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 211100022 | Battery Nut M6 | 2 |
| 2 | 293850021 | Rubber Strap | 2 |
| 1 | 278000245 | 3 WIRE SUPPORT | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 278001016 | Temperature Sensor | 1 |
| 2 | 278000609 | Spark Plug, NGK BR8-ES | 2 |
| 278001490 | Battery Ground Cable, Black Includes 64 - 65. | ||
| 278001491 | Wire Cap (Black) | ||
| 1 | 234001600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 2 | 278000020 | PROTECTION CAP | 2 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
