Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.
Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

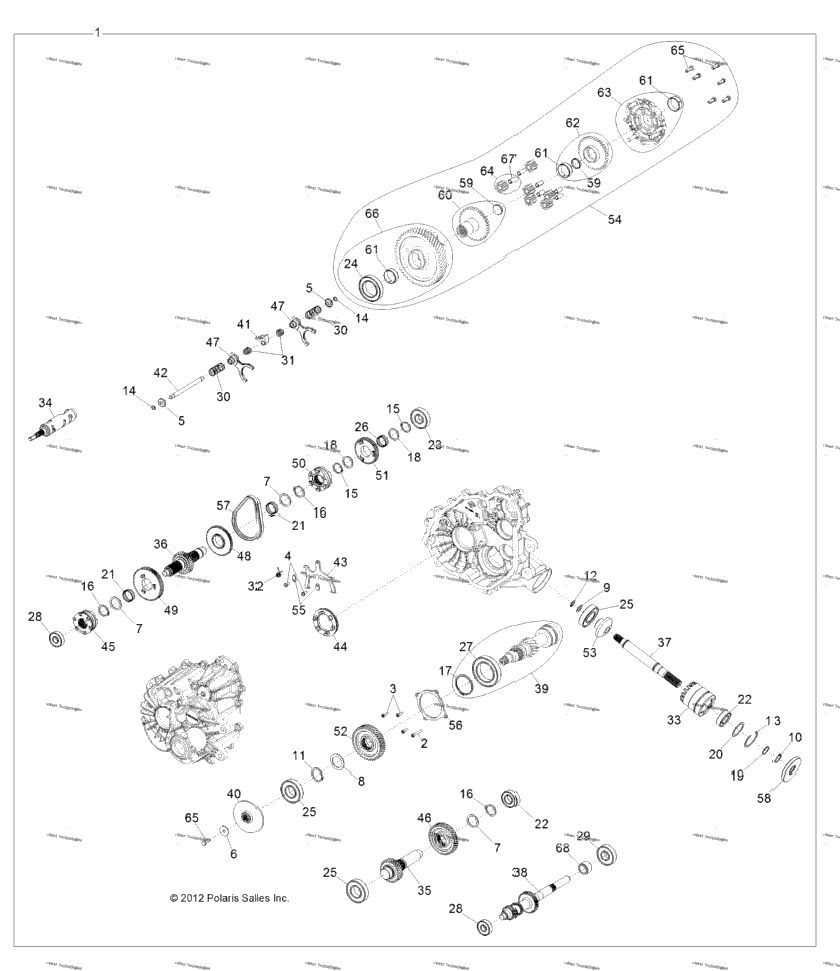

| 1333063 | ASM-GEARCASE,COMPLETE,DIFF [INCL. ALL] | ||
| 1 | 3235208 | SCREW, 6 MM X 1.0 MM 40 MM | 1 |
| 3 | 3235332 | SOCKET HEAD SCREW, 6 MM X 1 MM | 3 |
| 2 | 3234309 | SCREW, TORX PAN HD M6 X 1 X 16 | 2 |
| 2 | 3234091 | CUP WASHER | 2 |
| 1 | 3234952 | WASHER-FENDER,5/16-1.25 | 1 |
| 3 | 3235211 | WASHER | 3 |
| 1 | 3235212 | WASHER | 1 |
| 1 | 3235213 | WASHER | 1 |
| 1 | 3233106 | SNAP RING | 1 |
| 1 | 3233364 | RETAINING RING | 1 |
| 1 | 3234318 | EXTERNAL RETAINING RING | 1 |
| 1 | 3234269 | RING,RETAININGBASICINTRNL2.047 | 1 |
| 2 | 3234090 | RETAINING RING | 2 |
| 2 | 3234205 | RETAINING RING | 2 |
| 3 | 3235214 | RETAINING RING | 3 |
| 1 | 3235216 | RETAINING RING | 1 |
| 2 | 3233378 | THRUST WASHER | 2 |
| 1 | 3234272 | SHIM 1.180 X .995(9) | 1 |
| 1 | 3234273 | SHIM, 2.040 OD X 1.630 ID | 1 |
| 2 | 3233014 | NEEDLE BEARING | 2 |
| 2 | 3233019 | BEARING | 2 |
| 1 | 3233020 | BEARING | 1 |
| 1 | 3233268 | BALL BEARING | 1 |
| 3 | 3234065 | BALL BEARNING | 3 |
| 1 | 3233384 | NEEDLE BEARING | 1 |
| 1 | 3235218 | BALL BEARING | 1 |
| 2 | 3234652 | BALL BEARING | 2 |
| 1 | 3235328 | BALL BEARING | 1 |
| 2 | 3234078 | COMPRESSION SPRING | 2 |
| 2 | 3234089 | COMPRESSION SPRING | 2 |
| 1 | 3234276 | TORSION RETURN SPRING | 1 |
| 1 | 3234278 | SNORKLE TUBE | 1 |
| 1 | 3235463 | SHIFT DRUM | 1 |
| 1 | 3235223 | IDLER SHAFT, 29 TOOTH | 1 |
| 1 | 3235224 | REVERSE SHAFT, 29 TOOTH | 1 |
| 1 | 3235225 | OUTPUT SHAFT, FRONT | 1 |
| 1 | 3235371 | PINION SUBASSEMBLY | 1 |
| 1 | 3235372 | DISC BRAKE | 1 |
| 1 | 3234073 | SHIFT COLLAR | 1 |
| 1 | 3235542 | SHIFT RAIL, SHAFT | 1 |
| 1 | 3235455 | FORK SHIFT | 1 |
| 1 | 3234928 | ENGAGEMENT DOG | 1 |
| 1 | 3235457 | PARK/LOW SHIFT DOG | 1 |
| 1 | 3235229 | STAGE 2 GEAR, 44 TOOTH | 1 |
| 2 | 3235454 | SHIFT FORK SUBASSEMBLY | 2 |
| 1 | 3235231 | SPROCKET, 48 TOOTH, 6 FACE | 1 |
| 1 | 3235232 | LOW GEAR, 67 TOOTH | 1 |
| 1 | 3235233 | 6 FACE ENGAGEMENT DOG | 1 |
| 1 | 3235234 | GEAR, 53 TOOTH | 1 |
| 1 | 3235236 | STAGE 3 GEAR, 46 TOOTH | 1 |
| 1 | 3235237 | OUTPUT GEAR, FRONT, 13 TOOTH | 1 |
| 1 | 3235373 | LOCKING DIFFERENTIAL | 1 |
| 2 | 3234934 | FORK RETAINER | 2 |
| 1 | 3235241 | CENTER DRIVE BEARING COVER | 1 |
| 1 | 3234737 | SILENT CHAIN | 1 |
| 1 | 3235658 | HI TEMP TRI LIP SEAL, 25 X 80 X | 1 |
| 2 | 3234249 | EXPANSION PLUG, 1 1/4 | 2 |
| 1 | 3235374 | GEAR SUBASSEMBLY, 39 TOOTH, SID [INCL. PLUG] | 1 |
| 3 | 3234241 | PLAIN BEARING, 40 X 44 X 15 | 3 |
| 1 | 3235375 | GEAR SUBASSEMBLY, 39 TOOTH, SID [INCL. PLUG, BUSHING] | 1 |
| 1 | 3235376 | COVER SUBASSEMBLY [INCL. PLUG, BUSHING] | 1 |
| 6 | 3234469 | GEAR SUBASSEMBLY [INCL. BUSHING] | 6 |
| 7 | 3235096 | SCREW CAP, 8 MM X 1.25 MM X 20 | 7 |
| 1 | 3235378 | GEAR SUBASSEMBLY, 53 TOOTH [INCL. PIN, BUSHING, BEARING] | 1 |
| 6 | 3234239 | PLAIN BEARING, 10 X 12 X 25 | 6 |
| 1 | 3235465 | SLEEVE,INPUTSHAFT(150465) | 1 |
