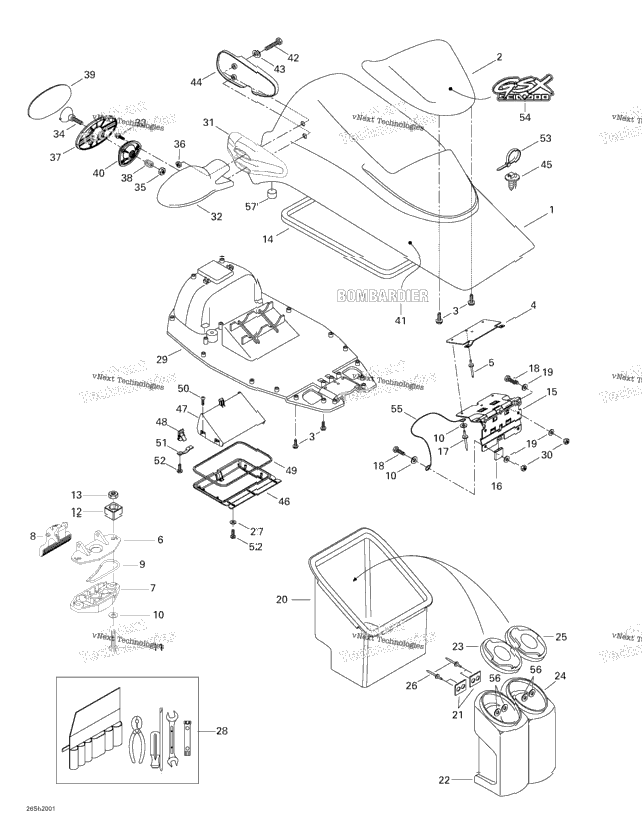

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269500629 | Upper Storage Cover | ||
| 269500630 | Deflector | ||
| 21 | 241141360 | Hex. Flange Screw K40 X 13 | 21 |
| 269500280 | Retainer Plate | ||
| 1 | 293150039 | Pop Rivet 3/16" | 1 |
| 1 | 269700020 | Latch Cover | 1 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 269000016 | Latch Lever | 1 |
| 269700017 | Latch Spring | ||
| 4 | 234061600 | Stainless, Flat Washer M6 | 4 |
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 2 | 269500252 | M6 Nut Housing Ass'y Includes 12 - 13. | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 269500613 | Hinge Ass'y | ||
| 293830046 | Protector Cap | ||
| 5 | 293150039 | Pop Rivet 3/16" | 5 |
| 205462060 | SOCKET SCREW M6 X 20 | ||
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 269500286 | Storage Tray | ||
| 4 | 293250037 | GASKET | 4 |
| 1 | 269500606 | EXTINGUISHER HOUSING | 1 |
| 1 | 269500603 | Extinguisher Cap | 1 |
| 1 | 269500605 | Housing Storage | 1 |
| 269500604 | Storage Cap | ||
| 293150033 | Pop Rivet 1/8'' | ||
| 3 | 234042600 | Flat Washer 4 mm, Stainless | 3 |
| 295000066 | Tool Kit | ||
| 269500655 | Lower Storage Cover | ||
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 269500400 | Support (Mirror) RH | ||
| 269500401 | Support (Mirror) LH | ||
| 269500418 | Mirror RH Ass'y Includes 32 - 40. | ||
| 269500419 | Mirror LH Ass'y | ||
| 6 | 241141660 | Hex. Flange Screw K40 X 16 | 6 |
| 269500079 | MIRROR BALL JOINT | ||
| 4 | 232081600 | Hex. Nut M8 | 4 |
| XXXX | Not Available As Spare Part - Mirror Frame | ||
| 2 | 269500453 | Mirror Spring | 2 |
| 2 | 269500454 | MIRROR | 2 |
| XXXX | Not Available As Spare Part - Mirror Housing Support | ||
| 219901564 | Bombardier Decal | ||
| 230084060 | Hex. Screw M8 x 140 | ||
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 269500383 | Spacer RH | ||
| 269500384 | Spacer LH | ||
| 1 | 293730018 | Mount Dart | 1 |
| 269500656 | GLOVE BOX INFERIOR | ||
| 269500519 | Glove Box Upper | ||
| 269500657 | Latch | ||
| 293250083 | Gasket | ||
| 4 | 241731260 | Oval Philipp Screw KA30 x 12 | 4 |
| 269500658 | Retainer Plate | ||
| 5 | 241141360 | Hex. Flange Screw K40 X 13 | 5 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 219901563 | <<GSX RFI>> Identification Decal | ||
| 1 | 269500524 | RETAINER CABLE | 1 |
| 4 | 234032600 | Flat Washer M3, Stainless | 4 |
| 2 | 293830005 | Rubber Bumper | 2 |
