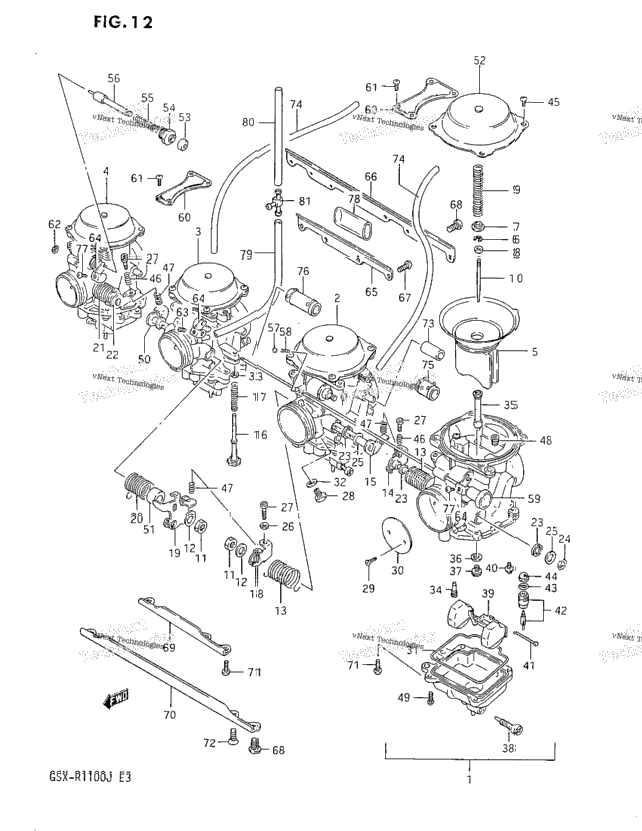

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 13201-06B10 | CARBURETOR ASSY, LH MODEL G/HOTHER THAN CALIFORNIA | ||
| 13201-06B70 | CARBURETOR ASSY, LH MODEL JOTHER THAN CALIFORNIA | ||
| 13201-06B20 | (CA) CARBURETOR ASSY, LH MODEL G/H CALIFORNIA ONLY | ||
| 13201-06B50 | (CA) CARBURETOR ASSY, LH MODEL J CALIFORNIA ONLY | ||
| 13202-06B10 | CARBURETOR ASSY, ML MODEL G/HOTHER THAN CALIFORNIA | ||
| 13202-06B70 | CARBURETOR ASSY, ML MODEL JOTHER THAN CALIFORNIA | ||
| 13202-06B20 | (CA) CARBURETOR ASSY, ML MODEL G/H CALIFORNIA ONLY | ||
| 13202-06B50 | (CA) CARBURETOR ASSY, ML MODEL J CALIFORNIA ONLY | ||
| 13203-06B10 | CARBURETOR ASSY, MR MODEL G/HOTHER THAN CALIFORNIA | ||
| 13203-06B70 | CARBURETOR ASSY, MR MODEL JOTHER THAN CALIFORNIA | ||
| 13203-06B20 | (CA) CARBURETOR ASSY, MR MODEL G/H CALIFORNIA ONLY | ||
| 13203-06B50 | (CA) CARBURETOR ASSY, MR MODEL J CALIFORNIA ONLY | ||
| 13204-06B10 | CARBURETOR ASSY, RH MODEL G/HOTHER THAN CALIFORNIA | ||
| 13204-06B70 | CARBURETOR ASSY, RH MODEL JOTHER THAN CALIFORNIA | ||
| 13204-06B20 | (CA) CARBURETOR ASSY, RH MODEL G/H CALIFORNIA ONLY | ||
| 13204-06B50 | (CA) CARBURETOR ASSY, RH MODEL J CALIFORNIA ONLY; Includes Item(s) 5 - 56 | ||
| 13500-06B00 | DIAPHRAGM | ||
| 4 | 13415-47070 | E RING | 4 |
| 4 | 13382-42A00 | RING | 4 |
| 4 | 13387-47010 | RING | 4 |
| 4 | 13417-42A00 | SPRING | 4 |
| 13383-06B10 | NEEDLE, JET (5D29-1) | ||
| 08310-21086 | NUT ML,MR | ||
| 13606-47070 | WASHER ML,MR | ||
| 13573-28A10 | SPRING LH,ML | ||
| 13550-28A30 | SHAFT ASSY LH | ||
| 13550-28A00 | SHAFT ASSY ML | ||
| 13567-28A10 | ADJUSTER MR | ||
| 13271-28A10 | SPRING MR | ||
| 13553-28A00 | LEVER ML | ||
| 13555-28A00 | LEVER MR | ||
| 13573-28A00 | SPRING MR | ||
| 13573-28A20 | SPRING RH | ||
| 13550-28A20 | SHAFT ASSY RH | ||
| 8 | 13651-51010 | SEAL | 8 |
| 2 | 13617-44080 | E RING LH,RH | 2 |
| 4 | 13557-47070 | WASHER | 4 |
| 13582-95216 | NUT ML | ||
| 13267-52012 | SCREW LH,ML,RH | ||
| 4 | 13605-73000 | SCREW OTHER THAN CALIFORNIA | 4 |
| 8 | 13604-42A00 | SCREW | 8 |
| 13551-06B10 | VALVE, THROTTLE (125) | ||
| 4 | 13251-42A00 | .O RING,FLOAT CHAMBER | 4 |
| 4 | 13249-78100 | WASHER OTHER THAN CALIFORNIA | 4 |
| 1 | 13432-47090 | WASHER MR | 1 |
| 4 | 09492-32006 | JET, PILOT (32.5) | 4 |
| 09494-00535 | JET, NEEDLE (P-2) | ||
| 4 | 13332-44080 | WASHER | 4 |
| 4 | 09491-26011 | JET, MAIN (130) | 4 |
| 4 | 13247-28A00 | SCREW, DRAIN | 4 |
| 4 | 13250-28A00 | FLOAT | 4 |
| 4 | 13602-43410 | SCREW | 4 |
| 4 | 13254-92311 | PIN | 4 |
| 4 | 13370-44500 | .NEEDLE VALVE | 4 |
| 4 | 66263-99050 | O RING | 4 |
| 4 | 13376-65010 | FILTER | 4 |
| 10 | 02112-04085 | SCREW MODEL G/H LH/MR:2,ML/RH:3MODEL J | 10 |
| 13271-28A00 | SPRING LH,RH | ||
| 3 | 13268-96110 | SPRING LH,ML,RH | 3 |
| 4 | 09493-27001 | .JET,AIR (#135) | 4 |
| 09493-23001 | (CA) JET, PILOR AIR (115) MODEL J CALIFORNIA ONLY | ||
| 16 | 13602-27A10 | SCREW | 16 |
| 13550-28A10 | SHAFT ASSY MR | ||
| 13574-28A00 | RING MR | ||
| 13502-28A00 | COVER, DIAPHRAGM | ||
| 4 | 13682-31210 | .CAP,STARTER VALVE | 4 |
| 4 | 13418-44080 | .HOLDER,GUIDE | 4 |
| 4 | 13417-43010 | .SPRING,STARTER VALVE | 4 |
| 4 | 13411-05320 | PLUNGER ASSY | 4 |
| 2 | 13596-93010 | BALL | 2 |
| 2 | 13434-06B00 | SPRING | 2 |
| 13410-28A00 | SHAFT ASSY, STARTER | ||
| 13628-28A00 | PLATE MODEL G/H | ||
| 8 | 02112-04085 | SCREW MODEL G/H | 8 |
| 1 | 13298-49000 | E RING MODEL G/H | 1 |
| 13605-49330 | SCREW | ||
| 13422-28A00 | LEVER | ||
| 13628-28A10 | PLATE MODEL G/H | ||
| 13628-19C10 | PLATE MODEL J | ||
| 4 | 02112-05128 | SCREW MODEL G/H | 4 |
| 14 | 02112-05128 | SCREW MODEL J | 14 |
| 13628-28A20 | PLATE MODEL G/H | ||
| 13628-19C00 | PLATE MODEL J | ||
| 8 | 02112-05168 | SCREW MODEL G/H | 8 |
| 02122-05148 | SCREW MODEL J | ||
| 2 | 13683-49160 | HOSE (6.5X10.5X400) L:400->18 | 2 |
| 2 | 13684-28A00 | HOSE (5X8X425) ML:425->400MR:425 | 2 |
| 13680-06B50 | (CA) HOSE MODEL J CALIFORNIA ONLY | ||
| 13680-27A00 | HOSE ASSY | ||
| 13680-28A00 | HOSE ASSY | ||
| 13605-34390 | SCREW | ||
| 13684-28A10 | HOSE | ||
| 1 | 13683-06A20 | HOSE (5X9X250) MODEL J CALIFORNIA ONLY | 1 |
| 1 | 13683-06A20 | (CA) HOSE (5X9X250->100) MODEL J CALIFORNIA ONLY | 1 |
| 1 | 13685-48B00 | NIPPLE MODEL J CALIFORNIA ONLY | 1 |
