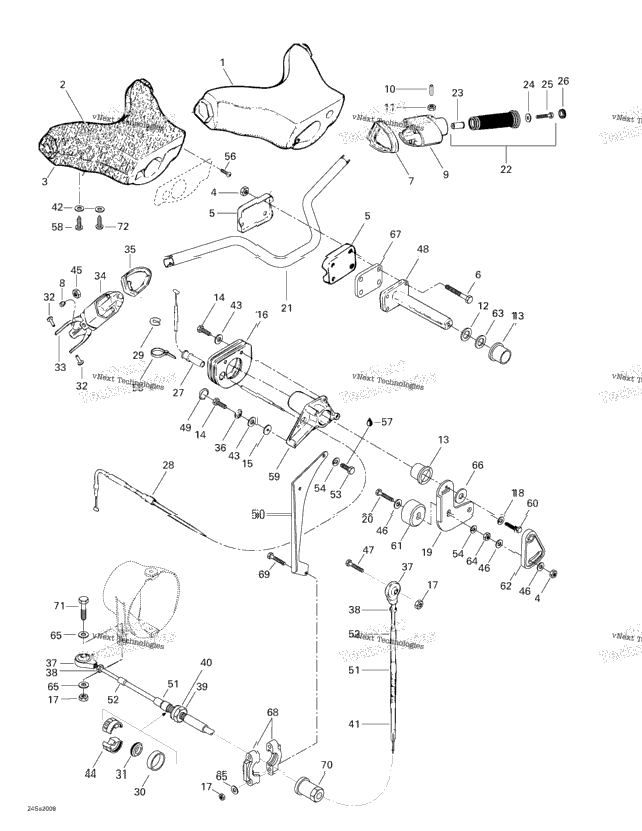

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 277000260 | Steering Cover | ||
| 1 | 277000145 | TOP FOAM | 1 |
| 277000146 | Bottom Foam | ||
| 5 | 232581650 | Elastic Stop Nut M8 | 5 |
| 277000142 | STEERING CLAMP | ||
| 4 | 207085560 | HEX. SCREW M8 X 55 | 4 |
| 277000341 | LH Adapter | ||
| 1 | 206561060 | SCREW-SET SOCKET DIN.916A2 | 1 |
| 1 | 277000221 | LH HOUSING ASS'Y Includes 9 - 11. | 1 |
| 216561060 | Set Screw M6 x 10 | ||
| 1 | 232160600 | Hex. Nut M6 | 1 |
| 211200008 | Spring Washer | ||
| 293900002 | Bushing | ||
| 4 | 207182560 | HEX. SCREW M8 X 25 | 4 |
| 277000100 | Plastic Washer | ||
| 277000091 | Collar (Black) | ||
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 1 | 234181601 | Lock Washer 8 mm, Stainless | 1 |
| 277000493 | Steering Stem Arm | ||
| 1 | 207084560 | Hex. Screw M8 X 45 | 1 |
| 277000824 | Handle Bar | ||
| 295500692 | Handle Grip Kit Includes 22 - 26. | ||
| XXXX | Not Available As Spare Part - Insert Grip | ||
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 2 | 277000310 | Cap | 2 |
| 293720014 | Grommet | ||
| 277000710 | Throttle Cable | ||
| 1 | 293370002 | Circlip 5 mm | 1 |
| 211100010 | Retaining Ring | ||
| 211100009 | RUBBER WASHER | ||
| 2 | 277000381 | PIN | 2 |
| 277000472 | Throttle Handle | ||
| 277000222 | THROTTLE HANDLE HOUSING | ||
| 277000084 | Throttle Adapter | ||
| 277000096 | Retaining Washer | ||
| 2 | 277000153 | BALL JOINT | 2 |
| 2 | 212100005 | Hex. Nut | 2 |
| 211100011 | Hex. Jam Nut 1/2-20 | ||
| 1 | 211200006 | FLAT WASHER, STAINLESS | 1 |
| 271000436 | Steering Cable | ||
| 4 | 234051600 | Flat Washer M5, Stainless | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 277000168 | Half-Ring | ||
| 3 | 234081600 | Stainless, Flat Washer 8 mm | 3 |
| 1 | 207063060 | Hex. Screw M6 X 30 | 1 |
| 277000223 | Steering Stem | ||
| 210000019 | Snap Cap | ||
| 277000457 | Cable Support | ||
| 277000473 | Boot, Large | ||
| 277000466 | Boot, Small | ||
| 207181660 | Hex. Screw M8 X 16 | ||
| 3 | 234181601 | Lock Washer 8 mm, Stainless | 3 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 2 | 209631360 | SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 211000021 | PHILLIPS SCREW #10 X 7/8 | 2 |
| 277000115400 | Steering Support | ||
| 1 | 207182560 | HEX. SCREW M8 X 25 | 1 |
| 277000097 | Stopper Bushing | ||
| 277000201 | Lock Plate | ||
| 1 | 293350006 | SHIM | 1 |
| 1 | 232081600 | Hex. Nut M8 | 1 |
| 4 | 234061600 | Stainless, Flat Washer M6 | 4 |
| 211200001 | Washer | ||
| 277000436 | Spacer | ||
| 2 | 277000162 | Support Thrust | 2 |
| 207766060 | Bolt-Carriage M6 x 60 | ||
| 1 | 277000167 | KNOB ADJUSTER | 1 |
| 1 | 207064060 | Hex. Screw M6 X 40 | 1 |
| 211000037 | Phillips Screw 10-14 X 7/8” |
