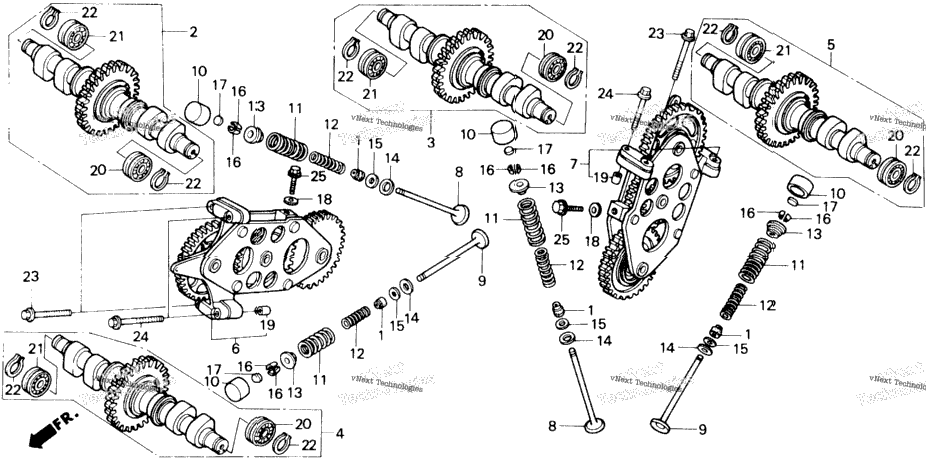

Список запчастей

№	Артикул	Название	Кол-во
16	14961-KT7-013	SHIM, TAPPET (2.700)	16
16	14962-KT7-000	SHIM, TAPPET (2.725)	16
16	14962-KT7-010	SHIM, TAPPET (2.725)	16
16	14962-KT7-013	SHIM, TAPPET (2.725)	16
16	14963-KT7-000	SHIM, TAPPET (2.750)	16
16	14963-KT7-010	SHIM, TAPPET (2.750)	16
16	14963-KT7-013	SHIM, TAPPET (2.750)	16
16	14964-KT7-000	SHIM, TAPPET (2.775)	16
16	14964-KT7-010	SHIM, TAPPET (2.775)	16
16	14964-KT7-013	SHIM, TAPPET (2.775)	16
16	14965-KT7-000	SHIM, TAPPET (2.800)	16
16	14965-KT7-010	SHIM, TAPPET (2.800)	16
16	14965-KT7-013	SHIM, TAPPET (2.800)	16
2	90441-ME9-000	WASHER, SEALING (8MM)	2
4	90702-GB6-910	PIN, DOWEL (8X12)	4
4	94301-08120	PIN A, DOWEL (8X12)	4
	91002-MR7-004	BEARING SET, RADIAL BALL (6903)
	91003-MR7-004	BEARING, RADIAL BALL (6903U)
8	94510-17000	CIRCLIP, OUTER (17MM)	8
4	95701-06032-08	BOLT, FLANGE (6X32)	4
4	95701-06040-08	BOLT, FLANGE (6X40)	4
2	95701-08022-07	BOLT, FLANGE (8X22)	2
16	12209-ML0-722	SEAL, VALVE STEM (ARAI)	16
	14110-MR7-000	CAMSHAFT, FR. IN.
	14120-MR7-000	CAMSHAFT, RR. IN.
	14130-MR7-000	CAMSHAFT, FR. EX.
	14140-MR7-000	CAMSHAFT, RR. EX.
1	14410-MR7-020	GEAR TRAIN, FR.	1
	14420-MR7-020	GEAR TRAIN, RR.
	14711-MR7-000	VALVE, IN.
	14721-MR7-000	VALVE, EX.
	14731-MR7-000	LIFTER, VALVE
	14751-MR7-003	SPRING, VALVE (OUTER) (NIPPON HATSUJO)
	14761-MR7-003	SPRING, VALVE (INNER) (NIPPON HATSUJO)
16	14771-KW3-900	RETAINER, VALVE SPRING	16
	14775-MR7-000	SEAT, VALVE SPRING (OUTER)
	14777-MR7-000	SEAT, VALVE SPRING (INNER)
32	14781-ML0-720	COTTER, VALVE	32
16	14901-KT7-000	SHIM, TAPPET (1.200)	16
16	14901-KT7-010	SHIM, TAPPET (1.200)	16
16	14901-KT7-013	SHIM, TAPPET (1.200)	16
16	14902-KT7-000	SHIM, TAPPET (1.225)	16
16	14902-KT7-010	SHIM, TAPPET (1.225)	16
16	14902-KT7-013	SHIM, TAPPET (1.225)	16
16	14903-KT7-000	SHIM, TAPPET (1.250)	16
16	14903-KT7-010	SHIM, TAPPET (1.250)	16
16	14903-KT7-013	SHIM, TAPPET (1.250)	16
16	14904-KT7-000	SHIM, TAPPET (1.275)	16
16	14904-KT7-010	SHIM, TAPPET (1.275)	16
16	14904-KT7-013	SHIM, TAPPET (1.275)	16
16	14905-KT7-000	SHIM, TAPPET (1.300)	16
16	14905-KT7-010	SHIM, TAPPET (1.300)	16
16	14905-KT7-013	SHIM, TAPPET (1.300)	16
16	14906-KT7-000	SHIM, TAPPET (1.325)	16
16	14906-KT7-010	SHIM, TAPPET (1.325)	16
16	14906-KT7-013	SHIM, TAPPET (1.325)	16
16	14907-KT7-000	SHIM, TAPPET (1.350)	16
16	14907-KT7-010	SHIM, TAPPET (1.350)	16
16	14907-KT7-013	SHIM, TAPPET (1.350)	16
16	14908-KT7-000	SHIM, TAPPET (1.375)	16
16	14908-KT7-010	SHIM, TAPPET (1.375)	16
16	14908-KT7-013	SHIM, TAPPET (1.375)	16
16	14909-KT7-000	SHIM, TAPPET (1.400)	16
16	14909-KT7-010	SHIM, TAPPET (1.400)	16
16	14909-KT7-013	SHIM, TAPPET (1.400)	16
16	14910-KT7-000	SHIM, TAPPET (1.425)	16
16	14910-KT7-013	SHIM, TAPPET (1.425)	16
16	14911-KT7-000	SHIM, TAPPET (1.450)	16
16	14911-KT7-010	SHIM, TAPPET (1.450)	16
16	14911-KT7-013	SHIM, TAPPET (1.450)	16
16	14912-KT7-000	SHIM, TAPPET (1.475)	16
16	14912-KT7-013	SHIM, TAPPET (1.475)	16
16	14913-KT7-000	SHIM, TAPPET (1.500)	16
16	14913-KT7-013	SHIM, TAPPET (1.500)	16
16	14914-KT7-000	SHIM, TAPPET (1.525)	16
16	14914-KT7-013	SHIM, TAPPET (1.525)	16
16	14915-KT7-000	SHIM, TAPPET (1.550)	16
16	14915-KT7-010	SHIM, TAPPET (1.550)	16
16	14915-KT7-013	SHIM, TAPPET (1.550)	16
16	14916-KT7-000	SHIM, TAPPET (1.575)	16
16	14916-KT7-010	SHIM, TAPPET (1.575)	16
16	14916-KT7-013	SHIM, TAPPET (1.575)	16
16	14917-KT7-000	SHIM, TAPPET (1.600)	16
16	14917-KT7-013	SHIM, TAPPET (1.600)	16
16	14918-KT7-000	SHIM, TAPPET (1.625)	16
16	14918-KT7-010	SHIM, TAPPET (1.625)	16
16	14918-KT7-013	SHIM, TAPPET (1.625)	16
16	14919-KT7-000	SHIM, TAPPET (1.650)	16
16	14919-KT7-010	SHIM, TAPPET (1.650)	16
16	14919-KT7-013	SHIM, TAPPET (1.650)	16
16	14920-KT7-000	SHIM, TAPPET (1.675)	16
16	14920-KT7-010	SHIM, TAPPET (1.675)	16
16	14920-KT7-013	SHIM, TAPPET (1.675)	16
16	14921-KT7-000	SHIM, TAPPET (1.700)	16
16	14921-KT7-013	SHIM, TAPPET (1.700)	16
16	14922-KT7-000	SHIM, TAPPET (1.725)	16
16	14922-KT7-010	SHIM, TAPPET (1.725)	16
16	14922-KT7-013	SHIM, TAPPET (1.725)	16
16	14923-KT7-000	SHIM, TAPPET (1.750)	16
16	14923-KT7-010	SHIM, TAPPET (1.750)	16
16	14923-KT7-013	SHIM, TAPPET (1.750)	16
16	14924-KT7-000	SHIM, TAPPET (1.775)	16
16	14924-KT7-013	SHIM, TAPPET (1.775)	16
16	14925-KT7-000	SHIM, TAPPET (1.800)	16
16	14925-KT7-010	SHIM, TAPPET (1.800)	16
16	14925-KT7-013	SHIM, TAPPET (1.800)	16
16	14926-KT7-000	SHIM, TAPPET (1.825)	16
16	14926-KT7-010	SHIM, TAPPET (1.825)	16
16	14926-KT7-013	SHIM, TAPPET (1.825)	16
16	14927-KT7-000	SHIM, TAPPET (1.850)	16
16	14927-KT7-013	SHIM, TAPPET (1.850)	16
16	14928-KT7-000	SHIM, TAPPET (1.875)	16
16	14928-KT7-010	SHIM, TAPPET (1.875)	16
16	14928-KT7-013	SHIM, TAPPET (1.875)	16
16	14929-KT7-000	SHIM, TAPPET (1.900)	16
16	14929-KT7-013	SHIM, TAPPET (1.900)	16
16	14930-KT7-000	SHIM, TAPPET (1.925)	16
16	14930-KT7-010	SHIM, TAPPET (1.925)	16
16	14930-KT7-013	SHIM, TAPPET (1.925)	16
16	14931-KT7-000	SHIM, TAPPET (1.950)	16
16	14931-KT7-013	SHIM, TAPPET (1.950)	16
16	14932-KT7-000	SHIM, TAPPET (1.975)	16
16	14932-KT7-010	SHIM, TAPPET (1.975)	16
16	14932-KT7-013	SHIM, TAPPET (1.975)	16
16	14933-KT7-000	SHIM, TAPPET (2.000)	16
16	14933-KT7-013	SHIM, TAPPET (2.000)	16
16	14934-KT7-000	SHIM, TAPPET (2.025)	16
16	14934-KT7-013	SHIM, TAPPET (2.025)	16
16	14935-KT7-000	SHIM, TAPPET (2.050)	16
16	14935-KT7-013	SHIM, TAPPET (2.050)	16
16	14936-KT7-000	SHIM, TAPPET (2.075)	16
16	14936-KT7-013	SHIM, TAPPET (2.075)	16
16	14937-KT7-000	SHIM, TAPPET (2.100)	16
16	14937-KT7-013	SHIM, TAPPET (2.100)	16
16	14938-KT7-000	SHIM, TAPPET (2.125)	16
16	14938-KT7-010	SHIM, TAPPET (2.125)	16
16	14938-KT7-013	SHIM, TAPPET (2.125)	16
16	14939-KT7-000	SHIM, TAPPET (2.150)	16
16	14939-KT7-013	SHIM, TAPPET (2.150)	16
16	14940-KT7-000	SHIM, TAPPET (2.175)	16
16	14940-KT7-013	SHIM, TAPPET (2.175)	16
16	14941-KT7-000	SHIM, TAPPET (2.200)	16
16	14941-KT7-010	SHIM, TAPPET (2.200)	16
16	14941-KT7-013	SHIM, TAPPET (2.200)	16
16	14942-KT7-000	SHIM, TAPPET (2.225)	16
16	14942-KT7-010	SHIM, TAPPET (2.225)	16
16	14942-KT7-013	SHIM, TAPPET (2.225)	16
16	14943-KT7-000	SHIM, TAPPET (2.250)	16
16	14943-KT7-013	SHIM, TAPPET (2.250)	16
16	14944-KT7-000	SHIM, TAPPET (2.275)	16
16	14944-KT7-013	SHIM, TAPPET (2.275)	16
16	14945-KT7-000	SHIM, TAPPET (2.300)	16
16	14945-KT7-013	SHIM, TAPPET (2.300)	16
16	14946-KT7-000	SHIM, TAPPET (2.325)	16
16	14946-KT7-013	SHIM, TAPPET (2.325)	16
16	14947-KT7-000	SHIM, TAPPET (2.350)	16
16	14947-KT7-013	SHIM, TAPPET (2.350)	16
16	14948-KT7-000	SHIM, TAPPET (2.375)	16
16	14948-KT7-013	SHIM, TAPPET (2.375)	16
16	14949-KT7-000	SHIM, TAPPET (2.400)	16
16	14949-KT7-010	SHIM, TAPPET (2.400)	16
16	14949-KT7-013	SHIM, TAPPET (2.400)	16
16	14950-KT7-000	SHIM, TAPPET (2.425)	16
16	14950-KT7-010	SHIM, TAPPET (2.425)	16
16	14950-KT7-013	SHIM, TAPPET (2.425)	16
16	14951-KT7-000	SHIM, TAPPET (2.450)	16
16	14951-KT7-013	SHIM, TAPPET (2.450)	16
16	14952-KT7-000	SHIM, TAPPET (2.475)	16
16	14952-KT7-013	SHIM, TAPPET (2.475)	16
16	14953-KT7-000	SHIM, TAPPET (2.500)	16
16	14953-KT7-013	SHIM, TAPPET (2.500)	16
16	14954-KT7-000	SHIM, TAPPET (2.525)	16
16	14954-KT7-013	SHIM, TAPPET (2.525)	16
16	14955-KT7-000	SHIM, TAPPET (2.550)	16
16	14955-KT7-010	SHIM, TAPPET (2.550)	16
16	14955-KT7-013	SHIM, TAPPET (2.550)	16
16	14956-KT7-000	SHIM, TAPPET (2.575)	16
16	14956-KT7-013	SHIM, TAPPET (2.575)	16
16	14957-KT7-000	SHIM, TAPPET (2.600)	16
16	14957-KT7-010	SHIM, TAPPET (2.600)	16
16	14957-KT7-013	SHIM, TAPPET (2.600)	16
16	14958-KT7-000	SHIM, TAPPET (2.625)	16
16	14958-KT7-013	SHIM, TAPPET (2.625)	16
16	14959-KT7-000	SHIM, TAPPET (2.650)	16
16	14959-KT7-010	SHIM, TAPPET (2.650)	16
16	14959-KT7-013	SHIM, TAPPET (2.650)	16
16	14960-KT7-000	SHIM, TAPPET (2.675)	16
16	14960-KT7-010	SHIM, TAPPET (2.675)	16
16	14960-KT7-013	SHIM, TAPPET (2.675)	16
16	14961-KT7-000	SHIM, TAPPET (2.700)	16
16	14961-KT7-010	SHIM, TAPPET (2.700)	16
