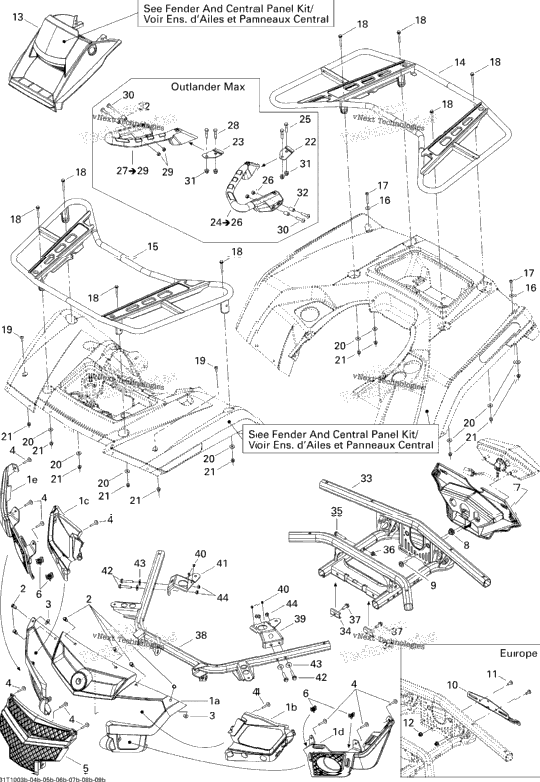

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705002778 | YELLOW FRONT FASCIA Yellow Model | 1 |
| 1 | 705003080 | RED FRONT FASCIA Red Model | 1 |
| 1 | 705003639 | Front Fascia, Black Black Model | 1 |
| 705003640 | FRONT FASCIA, GREEN Green Model | ||
| 1 | 705004033 | Front Fascia, Camo Camo Model | 1 |
| XXX | Not Available As Spare Parts Radiant Red Model | ||
| XXX | Not Available As Spare Parts Steel Grey Model | ||
| 1 | 705002825 | LH Head Lamp Support | 1 |
| 1 | 705002826 | RH Head Lamp Support | 1 |
| 1 | 705002780 | LH LOWER FRONT FACIA | 1 |
| 1 | 705002889 | LH LOWER FRONT FACIA Europe | 1 |
| 1 | 705002781 | RH LOWER FRONT FACIA | 1 |
| 1 | 705002890 | RH LOWER FRONT FACIA Europe | 1 |
| 6 | 293150089 | Tuflok Plastic Rivet | 6 |
| 4 | 506151252 | Washer | 4 |
| 11 | 250000101 | Plastite Screw Type K-40, M4 X 25 | 11 |
| 1 | 705002779 | UPPER GRILL | 1 |
| 4 | 517302785 | Edge Clip | 4 |
| 1 | 705003840 | Rear Facia | 1 |
| 2 | 705003666 | Rubber Grommet | 2 |
| 1 | 250000113 | Screw M4 X 16, Type K-40 | 1 |
| 1 | 705002499 | SUPPORT Europe | 1 |
| 2 | 250000261 | Torx Screw M6 X 16 Europe | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 Europe | 2 |
| 1 | 705001314 | Dashboard | 1 |
| 1 | 705002617 | Rear Luggage Rack | 1 |
| 1 | 705002616 | Front Luggage Rack | 1 |
| 2 | 250200040 | Flat Washer | 2 |
| 2 | 250000239 | Torx Truss Screw M6 X 50 | 2 |
| 8 | 207065544 | Hex. Screw M6 X 55 | 8 |
| 2 | 250000284 | Torx Screw M6 x 25 | 2 |
| 10 | 250200072 | Flat Washer | 10 |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 12 |
| XXX | Not Available As Spare Parts Max | ||
| XXX | Not Available As Spare Parts Includes 24 to 26, Max | ||
| XXX | Not Available As Spare Parts | ||
| XXX | Not Available As Spare Parts Includes 27 to 29, Max | ||
| 1 | 705003656 | Rear Support | 1 |
| 2 | 705003647 | U Reinforcement | 2 |
| 1 | 207685044 | Hex. Flange Screw M8 X 50 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 1 | 705003655 | FRONT SUPPORT | 1 |
| 1 | 705002995 | LH ANCHOR PLATE | 1 |
| 4 | 390402300 | Pop Rivet 3/16" | 4 |
| 1 | 705002997 | RH Anchor Plate | 1 |
| 4 | 207684544 | Hex. Flange Screw M8 X 45 | 4 |
| 4 | 234082410 | Flat Washer 8 mm | 4 |
| 4 | 232581414 | Hex. Elastic Stop Nut M8 | 4 |
