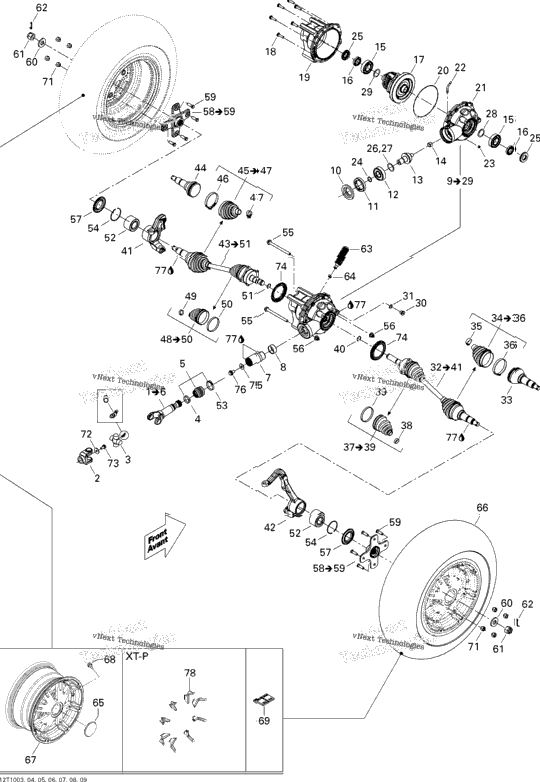

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705400551 | Front Drive Axle Ass'y | 1 |
| 705400391 | YOKE, FIXED JOINT | ||
| 1 | 703000024 | Unit Pack Kit | 1 |
| 1 | 293650138 | Oetiker Gear Clamp 44.0MM | 1 |
| 703500255 | Rubber Boot Kit | ||
| 715900067 | GREASE FITTING | ||
| 1 | 705400149 | Coupling Sleeve | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| 705400723 | Differential Ass'y STD, Includes 9 to 29 | ||
| 1 | 705400027 | Oil Seal | 1 |
| 1 | 705400661 | Nut | 1 |
| 1 | 705500260 | Ball Bearing | 1 |
| 705501051 | 10 TEETH PINION | ||
| 1 | 705500261 | Needle Bearing | 1 |
| 2 | 705500259 | Ball Bearing | 2 |
| 2 | 293350044 | Ball Bearing | 2 |
| 1 | 705400645 | Differential STD | 1 |
| 6 | 705500892 | SCREW | 6 |
| 1 | 705400297 | Front Cover | 1 |
| 1 | 705500265 | Seal | 1 |
| 705400646 | Front Cover | ||
| 1 | 705500893 | VENT VALVE | 1 |
| 1 | 705500894 | Drain Plug | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 2 | 705500255 | Oil Seal | 2 |
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 705500075 | Pinion Gear Shim .022" | ||
| 1 | 705501162 | Pinion Gear Shim | 1 |
| 1 | 703500288 | Differential Shim Spool Kit | 1 |
| 1 | 703500050 | Differential Shim Spool Kit | 1 |
| 1 | 250400041 | Screw Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 1 | 705400660 | RH Homocinetic Joint Includes 32 to 40 | 1 |
| 705500560 | CV Joint | ||
| 1 | 705400511 | Wheel Boot Kit Includes 34 to 36 | 1 |
| 1 | 293650194 | OETIKER CLAMP 70MM | 1 |
| 1 | 293650192 | OETIKER CLAMP 23MM | 1 |
| 1 | 705400512 | Differential Boot Kit Includes 37 to 39 | 1 |
| 1 | 293650193 | OETIKER CLAMP 67MM | 1 |
| 1 | 705400042 | CIRCLIP | 1 |
| 1 | 705400817 | LH KNUCKLE | 1 |
| 705400819 | RH KNUCKLE | ||
| 1 | 705400659 | LH Homocinetic Joint Includes 43 to 51 | 1 |
| 1 | 705400511 | Wheel Boot Kit Includes 45 to 47 | 1 |
| 1 | 705400512 | Differential Boot Kit Includes 48 to 50 | 1 |
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201416 | Hex. Flange Elastic Nut M10 | 2 |
| 2 | 705501121 | Wear Sleeve | 2 |
| 2 | 705501131 | Wheel Hub Ass'y Includes 58 to 59 | 2 |
| 4 | 250300034 | Wheel Stud | 4 |
| 2 | 250200049 | Spring Washer | 2 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 250400036 | Cotter Pin | 2 |
| 1 | 705400352 | Rubber Bellow | 1 |
| 1 | 293650042 | Oetiker Clamp | 1 |
| 2 | 705400680 | Wheel Cap | 2 |
| 2 | 705400431 | Front Tire XT, XT-P | 2 |
| 2 | 705400610 | Front Tire XT Europe (Except Camo), XT-P Europe | 2 |
| 2 | 705400382 | Front Tire STD | 2 |
| 2 | 705400614 | Front Tire STD Europe | 2 |
| 2 | 705400648 | RIM_12 INCH X 6 XT (Except Camo) | 2 |
| 2 | 705400853 | RIM_12 INCH X 6 STD | 2 |
| 2 | 705400687 | RIM_12 INCH X 6 XT Camo, XT-P | 2 |
| 1 | 705400193 | Rim Valve With Cap | 1 |
| 1 | 705500824 | ADHESIVE WEIGHT, 1/2 OZ | 1 |
| 8 | 250100082 | Chrome Wheel Nut M10 X 1.25 STD, XT (Except Camo) | 8 |
| 8 | 250100100 | Black Wheel Nut M10 X 1.25 XT Camo, XT-P | 8 |
| 1 | 211200041 | Washer | 1 |
| 1 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip | 1 |
| 2 | 705400780 | Wear Sleeve | 2 |
| 1 | 250200102 | Flat Washer M12 | 1 |
| 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 16 | 705400681 | FIN WHEEL MOULDING, YELLOW XT-P | 16 |
