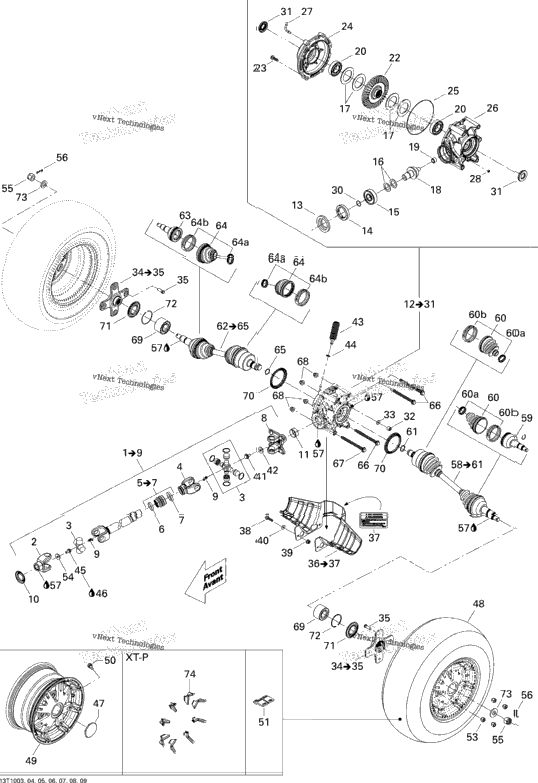

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 703500719 | Rear Propeller Shaft Kit Includes 1 to 9, OUTLANDER | 1 |
| 1 | 705500371 | Fix Joint | 1 |
| 2 | 703000022 | Unit Pack Kit | 2 |
| 1 | 705501072 | SLIDING JOINT | 1 |
| 703500255 | Rubber Boot Kit | ||
| XXXX | Not Available As Spare Part - Oetiker Clamp | ||
| 1 | 293650138 | Oetiker Gear Clamp 44.0MM | 1 |
| 705500526 | DISC JOINT | ||
| 1 | 705500841 | GREASE FITTING | 1 |
| 1 | 705501123 | Protector | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| 1 | 705501047 | Rear Differential Ass'y Includes 12 to 31 | 1 |
| 1 | 705400027 | Oil Seal | 1 |
| 1 | 705500987 | Nut | 1 |
| 1 | 705500260 | Ball Bearing | 1 |
| 705500075 | Pinion Gear Shim .022" | ||
| 705501163 | Pinion Gear Shim 2.12mm | ||
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 2 | 703500548 | Differential Shim Kit | 2 |
| 705501051 | 10 TEETH PINION | ||
| 1 | 705500261 | Needle Bearing | 1 |
| 1 | 705500749 | Ball Bearing | 1 |
| 705501048 | GEAR, 36 TOOTH | ||
| 4 | 705500892 | SCREW | 4 |
| 1 | 705501049 | Rear Differential Cover | 1 |
| 1 | 705500265 | Seal | 1 |
| 1 | 705501066 | Rear Cover | 1 |
| 1 | 705500893 | VENT VALVE | 1 |
| 1 | 705500894 | Drain Plug | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 2 | 705501196 | Oil Seal | 2 |
| 1 | 250400041 | Screw Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 2 | 705501131 | Wheel Hub Ass'y Includes 34 to 35 | 2 |
| 4 | 250300034 | Wheel Stud | 4 |
| 1 | 703500722 | Protector Kit Includes 36 to 37 | 1 |
| 1 | 704900009 | Warning Decal, Trailer | 1 |
| 4 | 207662544 | Hex. Flange Screw M6 X 25 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 4 | 250200082 | Flat Washer | 4 |
| 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP | ||
| 1 | 250200102 | Flat Washer M12 | 1 |
| 1 | 705400352 | Rubber Bellow | 1 |
| 1 | 293650042 | Oetiker Clamp | 1 |
| 1 | 250000359 | Hex Flange Screw M12 x 16 | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 2 | 705400680 | Wheel Cap | 2 |
| 2 | 705500606 | Rear Tire XT Europe (Except Camo), XT-P Europe | 2 |
| 2 | 705500685 | Rear Tire STD | 2 |
| 2 | 705500938 | Rear Tire STD Europe | 2 |
| 2 | 705500940 | Rear Tire XT, XT-P | 2 |
| 2 | 705500986 | RIM_12 INCH X 7,5 XT (Except Camo) | 2 |
| 2 | 705501019 | RIM_12 INCH X 7,5 XT Camo, XT-P | 2 |
| 2 | 705501188 | RIM_12 INCH X 7,5 STD | 2 |
| 1 | 705400193 | Rim Valve With Cap | 1 |
| 1 | 705500824 | ADHESIVE WEIGHT, 1/2 OZ | 1 |
| 8 | 250100100 | Black Wheel Nut M10 X 1.25 XT Camo, XT-P | 8 |
| 8 | 250100082 | Chrome Wheel Nut M10 X 1.25 STD, XT (Except Camo) | 8 |
| 1 | 250100047 | Hex. Castellated Nut M18 | 1 |
| 2 | 250400036 | Cotter Pin | 2 |
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 705500979 | LH CV Joint Ass'y Includes 58 to 61 | 1 |
| 705500980 | CV JOINT | ||
| 2 | 705500870 | Boot Kit | 2 |
| 1 | 293650204 | OETIKER CLAMP | 1 |
| 1 | 293650203 | Oetiker Clamp (27,5mm) | 1 |
| 1 | 705500845 | CIRCLIP | 1 |
| 1 | 705500983 | RH CV Joint Ass'y Includes 62 to 65 | 1 |
| 3 | 230603036 | HEX. FLANGED SCREW M10 X 130 | 3 |
| 230603536 | HEX. FLANGED SCREW M10 X 135 | ||
| 4 | 233201436 | Hex. Flange Elastic Nut M10 | 4 |
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 705501124 | Wear Ring | 2 |
| 2 | 705501121 | Wear Sleeve | 2 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 250200049 | Spring Washer | 2 |
| 16 | 705400681 | FIN WHEEL MOULDING, YELLOW XT-P | 16 |
