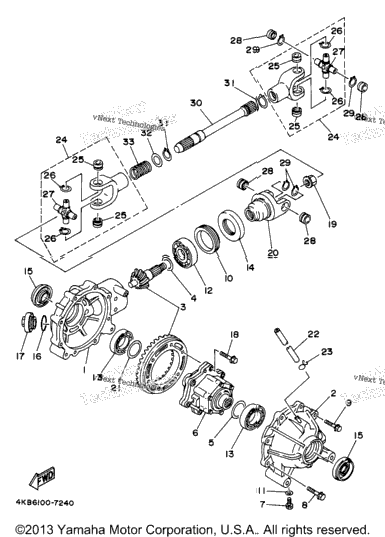

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4KB-46161-00-00 | Housing, Shaft Drive 2 | ||
| 1 | 4KB-46162-00-00 | Housing, Bearing 2 | 1 |
| 4KB-W4614-10-00 | Pinion Drive Gear Set | ||
| 4KB-46127-00-00 | Shim, Drive Pinion (1.82T) UR | ||
| 4KB-46127-60-00 | Shim, Drive Pinion (2.18T) UR | ||
| 4KB-46127-20-00 | Shim, Drive Pinion (1.94T) UR | ||
| 4KB-46127-30-00 | Shim, Drive Pinion (2.00T) UR | ||
| 4KB-46127-40-00 | Shim, Drive Pinion (2.06T) UR | ||
| 4KB-46127-50-00 | Shim, Drive Pinion (2.12T) UR | ||
| 4KB-46127-10-00 | Shim, Drive Pinion (1.88T) UR | ||
| 4KB-46117-60-00 | Shim, Ring Gear (0.80T) UR | ||
| 4KB-46117-50-00 | Shim, Ring Gear (0.75T) UR | ||
| 4KB-46117-40-00 | Shim, Ring Gear (0.70T) UR | ||
| 4KB-46117-30-00 | Shim, Ring Gear (0.65T) UR | ||
| 4KB-46117-20-00 | Shim, Ring Gear (0.60T) UR | ||
| 4KB-46117-10-00 | Shim, Ring Gear (0.55T) UR | ||
| 4KB-46117-00-00 | Shim, Ring Gear (0.50T) UR | ||
| 4KB-46117-70-00 | Shim, Ring Gear (0.85T) UR | ||
| 4KB-46117-N0-00 | Shim, Ring Gear (1.60T) UR | ||
| 4KB-46117-M0-00 | Shim, Ring Gear (1.55T) UR | ||
| 4KB-46117-80-00 | Shim, Ring Gear (0.90T) UR | ||
| 4KB-46117-90-00 | Shim, Ring Gear (0.95T) UR | ||
| 4KB-46117-A0-00 | Shim, Ring Gear (1.00T) UR | ||
| 4KB-46117-B0-00 | Shim, Ring Gear (1.05T) UR | ||
| 4KB-46117-C0-00 | Shim, Ring Gear (1.10T) UR | ||
| 4KB-46117-D0-00 | Shim, Ring Gear (1.15T) UR | ||
| 4KB-46117-E0-00 | Shim, Ring Gear (1.20T) UR | ||
| 4KB-46117-F0-00 | Shim, Ring Gear (1.25T) UR | ||
| 4KB-46117-G0-00 | Shim, Ring Gear (1.30T) UR | ||
| 4KB-46117-H0-00 | Shim, Ring Gear (1.35T) UR | ||
| 4KB-46117-J0-00 | Shim, Ring Gear (1.40T) UR | ||
| 4KB-46117-K0-00 | Shim, Ring Gear (1.45T) UR | ||
| 4KB-46117-L0-00 | Shim, Ring Gear (1.50T) UR | ||
| 4KB-46470-10-00 | Limited Slip Diff. Assembly | ||
| 1 | 90105-08759-00 | Bolt, Flange | 1 |
| 90105-082A7-00 | Bolt, Flange | ||
| 2 | 90105-102A8-00 | Bolt, Flange | 2 |
| 1 | 90179-60664-00 | Nut | 1 |
| 90201-086R7-00 | Washer, Plate | ||
| 1 | 93306-37210-00 | Bearing | 1 |
| 93306-07804-00 | Bearing | ||
| 1 | 93103-38178-00 | Oil Seal | 1 |
| 2 | 93105-22029-00 | Oil Seal | 2 |
| 93210-313A0-00 | O-Ring | ||
| 1 | 4KB-11186-00-00 | Cover, Cylinder Head Side 2 | 1 |
| 6 | 90105-08756-00 | Bolt, Flange | 6 |
| 1 | 90179-16671-00 | Nut | 1 |
| 1 | 4KB-46146-10-00 | Yoke, Joint 2 | 1 |
| 4KB-46119-A0-00 | Shim, Thrust (1.00T) UR | ||
| 4KB-46119-90-00 | Shim, Thrust (0.95T) UR | ||
| 4KB-46119-80-00 | Shim, Thrust (0.90T) UR | ||
| 4KB-46119-70-00 | Shim, Thrust (0.85T) UR | ||
| 4KB-46119-60-00 | Shim, Thrust (0.80T) UR | ||
| 4KB-46119-50-00 | Shim, Thrust (0.75T) UR | ||
| 4KB-46119-40-00 | Shim, Thrust (0.70T) UR | ||
| 4KB-46119-30-00 | Shim, Thrust (0.65T) UR | ||
| 4KB-46119-20-00 | Shim, Thrust (0.60T) UR | ||
| 4KB-46119-10-00 | Shim, Thrust (0.55T) UR | ||
| 1 | 4KB-46119-00-00 | Shim, Thrust (0.50T) UR | 1 |
| 4KB-46119-B0-00 | Shim, Thrust (1.05T) UR | ||
| 4KB-46119-N0-00 | Shim, Thrust (1.60T) UR | ||
| 4KB-46119-M0-00 | Shim, Thrust (1.55T) UR | ||
| 4KB-46119-L0-00 | Shim, Thrust (1.50T) UR | ||
| 4KB-46119-K0-00 | Shim, Thrust (1.45T) UR | ||
| 4KB-46119-J0-00 | Shim,Thrust (1.40T) UR | ||
| 4KB-46119-H0-00 | Shim,Thrust (1.35T) UR | ||
| 4KB-46119-G0-00 | Shim, Thrust (1.30T) UR | ||
| 4KB-46119-F0-00 | Shim, Thrust (1.25T) UR | ||
| 4KB-46119-E0-00 | Shim, Thrust (1.20T) UR | ||
| 4KB-46119-D0-00 | Shim, Thrust (1.10T) UR | ||
| 4KB-46119-C0-00 | Shim, Thrust (1.10T) UR | ||
| 1 | 90445-070J5-00 | Hose (L590) | 1 |
| 1 | 90467-06016-00 | Clip | 1 |
| 2 | 4GB-46108-10-00 | Cross Joint Comp. 3 | 2 |
| 2 | 93399-99926-00 | . Bearing | 2 |
| 2 | 93440-20088-00 | . Circlip | 2 |
| 1 | 2HR-46187-00-00 | . .Spider | 1 |
| 4 | 93399-99926-00 | Bearing | 4 |
| 4 | 93440-20088-00 | Circlip | 4 |
| 4KB-46173-00-00 | Shaft, Drive 2 | ||
| 2 | 93410-22039-00 | Circlip | 2 |
| 1 | 90201-225M9-00 | Washer, Plate | 1 |
| 1 | 90501-234F8-00 | Spring, Compression | 1 |
