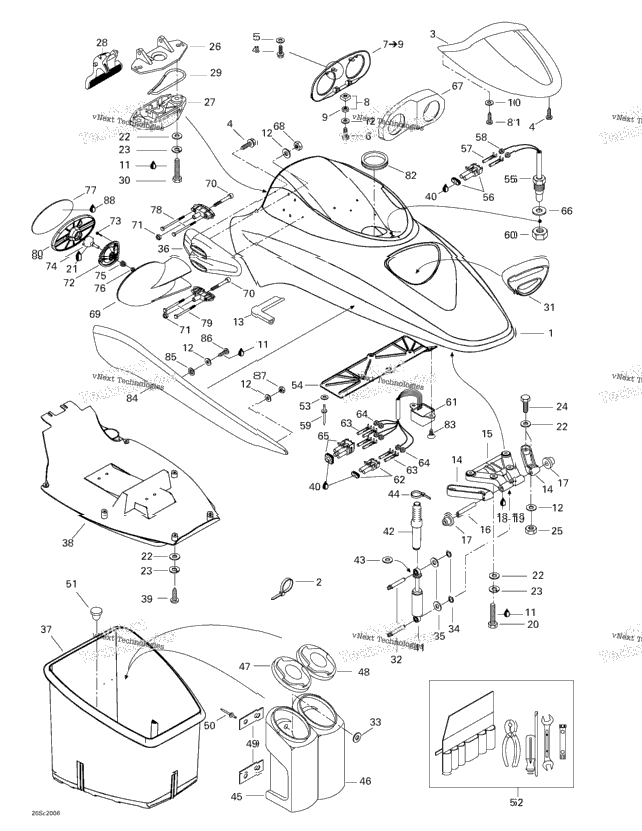

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269500768 | Storage Cover Upper (Mazalan Blue) | ||
| 6 | 293750002 | Tie Wrap 142 mm | 6 |
| 269500769 | Deflector | ||
| 7 | 241141660 | Hex. Flange Screw K40 X 16 | 7 |
| 2 | 234041600 | Flat Washer 4 mm, Stainless | 2 |
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 1 | 269500588 | DASH BOARD Includes 7 - 9. | 1 |
| 2 | 269500725 | M6 Nut Housing Ass'y Includes 8 - 9. | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 211200007 | Flat Washer | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 26 | 234062600 | Flat Washer M6, Stainless | 26 |
| 1 | 219704371 | Was 293250047 Neoprene Seal ( 3 M/pac ) | 1 |
| 269700022111 | RH HINGE | ||
| 269700023111 | LH HINGE | ||
| 1 | 269700038 | COVER HINGE | 1 |
| 269700024 | AXLE | ||
| 293350016 | CUSHION | ||
| 1 | 293800054 | Loctite 648, 50 ml | 1 |
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 4 | 207162060 | Hex. Forming Screw M6 X 20 | 4 |
| 293550010 | Synthetic Grease, 400 G | ||
| 12 | 234061600 | Stainless, Flat Washer M6 | 12 |
| 8 | 234161601 | Lock Washer Helical M6 | 8 |
| 4 | 207063560 | Hex. Screw M6 X 35 | 4 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 1 | 269700020 | Latch Cover | 1 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 269000016 | Latch Lever | 1 |
| 269700017 | Latch Spring | ||
| 269500746 | Intake Grille | ||
| 2 | 211400006 | SHORT PIN | 2 |
| 4 | 234032600 | Flat Washer M3, Stainless | 4 |
| 2 | 293370008 | CIRCLIP | 2 |
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 269500757 | RH Support Mirror | ||
| 269500759 | LH Support Mirror | ||
| 269500269 | Storage Tray | ||
| 269500660 | Lower Storage Cover | ||
| 208661660 | SCREW-PAN HD.PH.DIN.7985A-A2 | ||
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 269500261 | Gas Shock Ass'y Includes 41 - 44. | 1 |
| 291000919 | BELLOW | ||
| 211200034 | Washer | ||
| 2 | 293750001 | Tie Wrap 94 mm | 2 |
| 1 | 269500606 | EXTINGUISHER HOUSING | 1 |
| 1 | 269500605 | Housing Storage | 1 |
| 1 | 269500603 | Extinguisher Cap | 1 |
| 269500604 | Storage Cap | ||
| 4 | 293250037 | GASKET | 4 |
| 293150033 | Pop Rivet 1/8'' | ||
| 1 | 293830005 | Rubber Bumper | 1 |
| 295500783 | Owners Tool Kit | ||
| 3 | 234051500 | Flat Washer 5 mm | 3 |
| 278000857 | Mounting Plate | ||
| 278000851 | Temperature Sensor Includes 55 - 58. | ||
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 2 | 278000223 | Female Terminal | 2 |
| 2 | 278000218 | Wire Seal | 2 |
| 3 | 293150008 | Pop Rivet 3/16" | 3 |
| 1 | 250100004 | NUT-HEX.PLASTIC M10 X 1.5 | 1 |
| 278001243 | Compass Includes 61 - 65. | ||
| 6 | 278000223 | Female Terminal | 6 |
| 6 | 278000218 | Wire Seal | 6 |
| 1 | 278000891 | MALE CONNECTOR, 4 CIRCUITS | 1 |
| 1 | 234000600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 269500585 | GAUGE SUPPORT | 1 |
| 8 | 232561600 | Hex. Elastic Stop Nut M6 | 8 |
| 269500772 | RH Mirror Ass'y Includes 69 - 80. | ||
| 269500775 | LH Mirror Ass'y | ||
| 205087560 | Socket Head Screw M8 X 75 | ||
| 4 | 232581600 | Hex. Elastic Nut M8 | 4 |
| XXXX | Not Available As Spare Part - Housing Support | ||
| 6 | 241141660 | Hex. Flange Screw K40 X 16 | 6 |
| 269500079 | MIRROR BALL JOINT | ||
| 2 | 269500453 | Mirror Spring | 2 |
| 2 | 269500454 | MIRROR | 2 |
| 4 | 207068060 | Hex. Screw M6 x 80 | 4 |
| 4 | 207067060 | Hex. Screw M6 X 70 | 4 |
| XXXX | Not Available As Spare Part - Mirror Frame | ||
| 2 | 211000098 | Screw | 2 |
| 570276900 | Rubber Ring | ||
| 2 | 293730016 | Dart, Black | 2 |
| 269500713 | RH Moulding Includes 84 - 85. | ||
| 269500712 | LH Moulding | ||
| 10 | 293100003 | Nut Welded, M6 | 10 |
| 10 | 205461660 | Socket Screw M6 X 16 | 10 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
