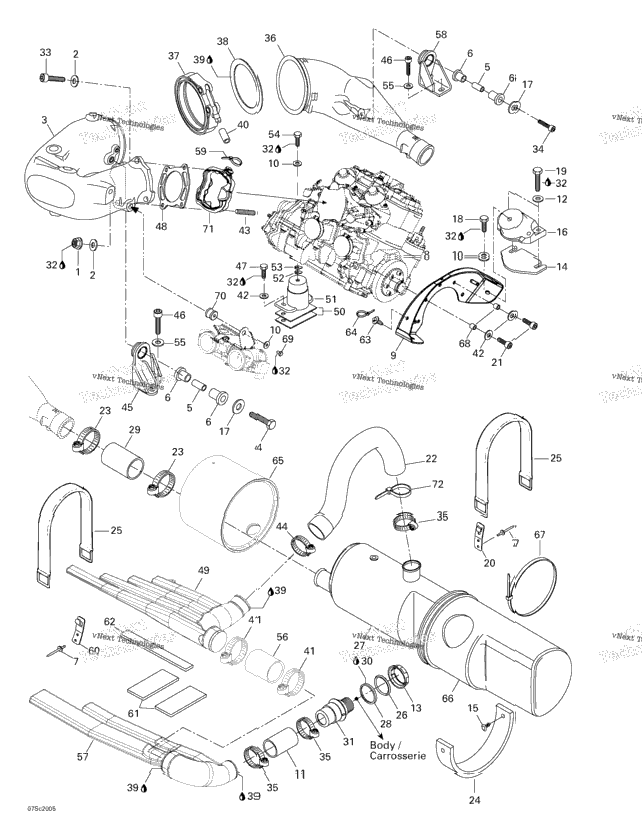

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 233101600 | Hex. Flange Nut M10 | 1 |
| 4 | 211200051 | Flat Washer | 4 |
| 274000767 | Head Pipe Ass'y | ||
| 207204060 | SCREW-HEX.CAP-DIN.931A2 S.GRIP | ||
| 274000861 | BUSHING | ||
| 293830065 | RUBBER BUSHING | ||
| 6 | 293150037 | Avdel Rivet 3/16" | 6 |
| 270000487 | Rotax Engine 947 (Silver) | ||
| 270000449 | Engine Support | ||
| 3 | 234082600 | Flat Washer 8 mm, Stainless | 3 |
| 274000616 | Exhaust Hose | ||
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 1 | 274000224 | Nut 72 mm | 1 |
| 270000122 | Shim 0.3 mm | ||
| 270000123 | SHIM 1.3 MM | ||
| 2 | 414644300 | Black, Dart | 2 |
| 270000421 | Rubber Mount, Black | ||
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 207181660 | Hex. Screw M8 X 16 | ||
| 4 | 207184060 | Hex. Screw M8 X 40 | 4 |
| 2 | 293850024 | STRAP CLIP | 2 |
| 5 | 205582560 | Socket Head Screw M8 X 25, Scotch Grip | 5 |
| 274000830 | Exhaust Hose | ||
| 2 | 293650064 | Tridon Clamp | 2 |
| 293830069 | Rubber Pad | ||
| 2 | 293850021 | Rubber Strap | 2 |
| 274000225 | STABILIZING WASHER | ||
| 274000826 | MUFFLER | ||
| 1 | 293250041 | GASKET | 1 |
| 274000875 | Exhaust Hose | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 274000843 | Exhaust Outlet | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 205503560 | Screw M10 x 35 (Scotch Grip) | ||
| 205504060 | SCREW-SOCKET DIN.912A2 S.GRIP | ||
| 3 | 293650064 | Tridon Clamp | 3 |
| 1 | 274000871 | EXHAUST CONE, BLACK | 1 |
| 274000510 | EXHAUST CLAMP | ||
| 1 | 274000511 | SEALING RING | 1 |
| 1 | 413710300 | Loctite 17914, Sealant, 80 ml | 1 |
| 1 | 219704412 | Polyurethane Hose 8 MM 3000MM Long | 1 |
| 2 | 204000079 | Tridon Clamp | 2 |
| 7 | 234081600 | Stainless, Flat Washer 8 mm | 7 |
| 250300008 | STUD M10 X 5.1 X 55, SCOTCH GRIP | ||
| 1 | 293650107 | Tridon Clamp | 1 |
| 274000662 | Support Pipe | ||
| 2 | 207184060 | Hex. Screw M8 X 40 | 2 |
| 295500815 | EXHAUST GASKET KIT | ||
| 1 | 274000700 | LH UPPER RESONATOR | 1 |
| 270000422 | Rubber Mount, Black | ||
| 1 | 270000024 | SHIM 0.4 MM | 1 |
| 1 | 270000025 | SHIM 1.3 MM | 1 |
| 207182060 | HEX. SCREW M8 X 20 | ||
| 5 | 250200012 | FLAT WASHER M8.4 | 5 |
| 1 | 274000726 | EXHAUST HOSE | 1 |
| 1 | 274000701 | RESONATOR EXTENSION | 1 |
| 274000777 | Pipe Support | ||
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 293850030 | Strap Clip | 1 |
| 2 | 274000752 | RUBBER PAD | 2 |
| 274000785 | Rubber Pad | ||
| 4 | 293730018 | Mount Dart | 4 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 274000796 | MUFFLER COVER, FRONT | 1 |
| 274000799 | Muffler Cover, Rear | ||
| 1 | 293750020 | WRAP_TIE 828 X 9 | 1 |
| 2 | 270000453 | BUSHING | 2 |
| 1 | 207181260 | HEX. SCREW M8 X 12 | 1 |
| 1 | 274000839 | Rubber Isolator | 1 |
| 274000862 | PICK UP ENVELOPE | ||
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
