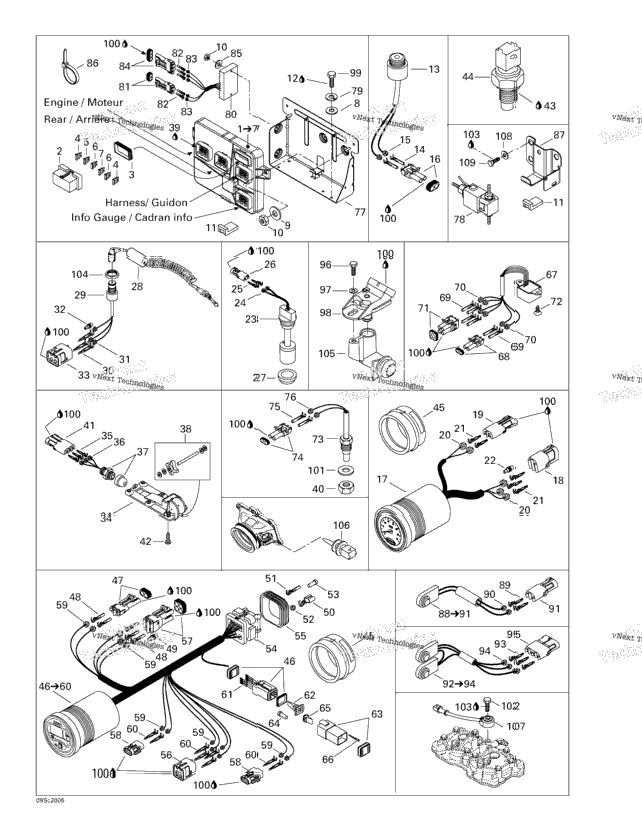

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001440 | Electronic Module Ass'y Includes 1 - 7. | ||
| 1 | 278001069 | Fuse Holder Cover | 1 |
| 278001070 | Cover Seal | ||
| 2 | 278000343 | Fuse, 15 Amperes | 2 |
| 1 | 278001442 | FUSE, 2 AMPERES | 1 |
| 2 | 278001443 | Fuse, 25 Amperes | 2 |
| 1 | 278000704 | FUSE, 7.5 AMPERES | 1 |
| 4 | 234052600 | Flat Washer 5 mm, Stainless | 4 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 2 | 278001166 | MODULE PROTECTOR | 2 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 278001531 | Buzzer Ass'y Includes 13 - 16. | ||
| 2 | 278000223 | Female Terminal | 2 |
| 2 | 278000218 | Wire Seal | 2 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 278001359 | Speedometer Includes 17 - 22. | ||
| 278000890 | FEMALE CONNECTOR, 4 CIRCUITS | ||
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 5 | 278001065 | Wire Seal | 5 |
| 5 | 278000222 | Male Terminal | 5 |
| 1 | 278000216 | Wire Seal | 1 |
| 1 | 278001515 | OIL SENSOR Includes 23 - 27. | 1 |
| 2 | 278000222 | Male Terminal | 2 |
| 1 | 293720008 | Grommet | 1 |
| 1 | 278001578 | Lanyard Safety | 1 |
| 278000977 | Safety Switch Includes 29 - 33. | ||
| 3 | 278000222 | Male Terminal | 3 |
| 3 | 278000218 | Wire Seal | 3 |
| 278000849 | Speed Sensor Includes 34 - 38. | ||
| 1 | 293710031 | ELECTRIC CONNECTION | 1 |
| 295500108 | Paddle Wheel Kit | ||
| 1 | 293550015 | Deoxit Lubricant, Spray | 1 |
| 1 | 250100004 | NUT-HEX.PLASTIC M10 X 1.5 | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 6 | 250000020 | Phillips Screw M5 X 10 | 6 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 2 | 278001016 | Temperature Sensor | 2 |
| 293720047 | Gauge Support | ||
| 278001559 | LCD Info Gauge Includes 46 - 60. | ||
| 1 | 278000736 | Male Connector, 6 Circuits | 1 |
| 5 | 278000223 | Female Terminal | 5 |
| 3 | 278000994 | FEMALE TERMINAL | 3 |
| 278000995 | FEMALE TERMINAL | ||
| 278000996 | WIRE SEAL | ||
| 10 | 293000070 | SEALING CAP | 10 |
| 278000993 | Male Connector, 26 Circuits Includes 54 - 55. | ||
| 1 | 278001307 | WIRE SEAL | 1 |
| 1 | 278000891 | MALE CONNECTOR, 4 CIRCUITS | 1 |
| 2 | 278000217 | Female Housing, 2 Circuits | 2 |
| 13 | 278001065 | Wire Seal | 13 |
| 8 | 278000222 | Male Terminal | 8 |
| 4 | 278000632 | Female Terminal | 4 |
| 1 | 278000737 | MALE LOCK, 6 CIRCUITS | 1 |
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 6 | 293000052 | Sealing Cap | 6 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 2 | 278000631 | Male Terminal | 2 |
| 278001243 | Compass Includes 67 - 71. | ||
| 6 | 278000223 | Female Terminal | 6 |
| 6 | 278000218 | Wire Seal | 6 |
| 2 | 293730016 | Dart, Black | 2 |
| 278000851 | Temperature Sensor Includes 73 - 76. | ||
| 278001447 | Module Support | ||
| 270600028 | SOLENOIDE VALVE | ||
| 4 | 234151601 | Helical Lock Washer M5 | 4 |
| 1 | 278001554 | Rectifier Ass’Y Includes 80 - 84. | 1 |
| 5 | 409007300 | Female Terminal | 5 |
| 5 | 278000218 | Wire Seal | 5 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 291001438 | Relay Support | ||
| 278001358 | Ignition Switch Ass'y (Stop / Start) Includes 88 - 91. | ||
| 278001534 | Mode/Set Switch Includes 92 - 94. | ||
| 3 | 278000223 | Female Terminal | 3 |
| 1 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 1 |
| 1 | 211200035 | Flat Washer | 1 |
| 270600001 | Pressure Sensor (5591/5592) | ||
| 4 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 4 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 234000600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 207183060 | Hex. Screw M8 X 30 | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 270600019 | VALVE ADAPTOR | 1 |
| 1 | 270600000 | AIR TEMPERATURE SENSOR | 1 |
| 1 | 270000484 | Noise Sensor | 1 |
| 2 | 207130860 | HEX. SCREW M3 X 08 | 2 |
| 2 | 234032600 | Flat Washer M3, Stainless | 2 |
