Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

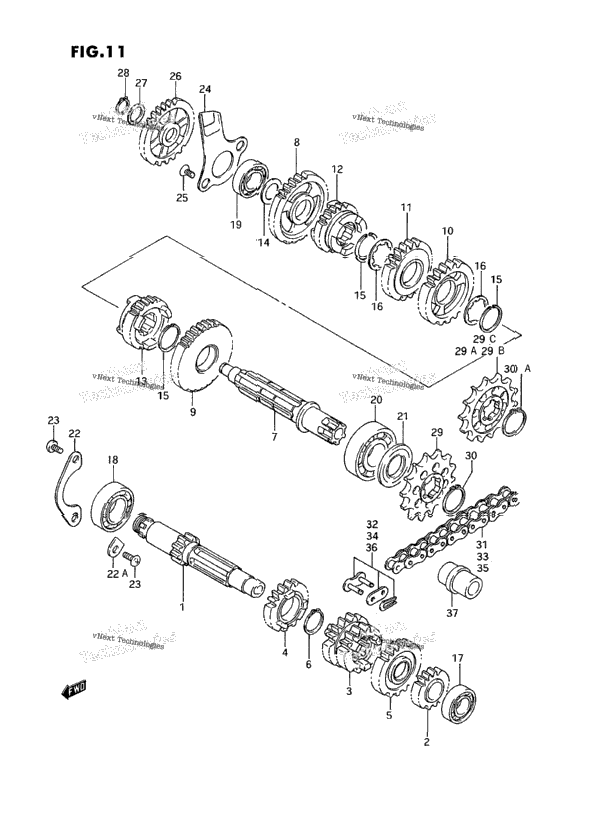

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 24121-02B02 | COUNTERSHAFT (NT:11) MODEL G/H/J | ||
| 1 | 24121-02B40 | COUNTERSHAFT (NT:11) MODEL K/L/M/N/P/R/S | 1 |
| 1 | 24221-02B01 | GEAR, 2ND DRIVE (NT:15) | 1 |
| 1 | 24231-02B02 | GEAR, 3/4 DRIVE (NT:14/15) | 1 |
| 1 | 24251-02B01 | GEAR, 5TH DRIVE (NT:18) | 1 |
| 1 | 24260-02B01 | GEAR, 6TH DRIVE (NT:22) | 1 |
| 1 | 09380-20009 | CIRCLIP | 1 |
| 1 | 24131-02B01 | DRIVE SHAFT | 1 |
| 1 | 24311-02B01 | GEAR, 1ST DRIVEN (NT:28) | 1 |
| 24321-02B01 | GEAR, 2ND DRIVEN (NT:29) | ||
| 1 | 24331-02B01 | GEAR, 3RD DRIVEN (NT:22) MODEL G/H/J/K/L | 1 |
| 1 | 24331-03B00 | GEAR, 3RD DRIVEN (NT:22) MODEL M/N/P/R/S | 1 |
| 1 | 24341-02B01 | GEAR, 4TH DRIVEN (NT:20) MODEL G/H/J/K/L | 1 |
| 1 | 24341-03B00 | GEAR, 4TH DRIVEN (NT:20) MODEL M/N/P/R/S | 1 |
| 1 | 24351-02B01 | GEAR, 5TH DRIVEN (NT:21) | 1 |
| 1 | 24361-02B02 | GEAR, 6TH DRIVEN (NT:23) | 1 |
| 1 | 08211-15261 | WASHER | 1 |
| 3 | 09380-22006 | CIRCLIP | 3 |
| 2 | 09167-22011 | LOCK WASHER | 2 |
| 08113-60027 | BEARING, LH MODEL G/H/J/N | ||
| 1 | 08123-62027 | BEARING, LH MODEL K/L/M | 1 |
| 1 | 08113-62027 | BEARING, LH MODEL P/R/S | 1 |
| 1 | 09262-20106 | BEARING, RH | 1 |
| 1 | 08113-62027 | BEARING, RH | 1 |
| 1 | 09262-20069 | BEARING, LH | 1 |
| 1 | 09283-20038 | OIL SEAL | 1 |
| 24741-48000 | RETAINER, BEARING MODEL G/H/J | ||
| 1 | 24741-21A00 | RETAINER, BEARING MODEL K/L/M/N/P/R/S | 1 |
| 2 | 02112-06128 | SCREW MODEL G/H/J | 2 |
| 1 | 02112-06123 | SCREW MODEL K/L/M/N/P/R/S | 1 |
| 24751-02B02 | RETAINER, BEARING MODEL G/H/J | ||
| 2 | 02122-06128 | SCREW MODEL G/H/J | 2 |
| 26260-02B00 | GEAR, KICK IDLE (NT:27) MODEL G/H/J | ||
| 1 | 26260-02B40 | GEAR, KICK STARTER IDLE MODEL K/L/M/N/P/R/S | 1 |
| 1 | 08221-12205 | WASHER | 1 |
| 1 | 08331-31126 | CIRCLIP | 1 |
| 27511-02B00 | SPROCKET, ENGINE (NT:14) MODEL G/H/J | ||
| 27511-04710 | SPROCKET, ENGINE (NT:13) MODEL G/H/J OPT | ||
| 1 | 27511-20420 | SPROCKET, ENGINE (NT:14) MODEL K/L | 1 |
| 1 | 27511-20421 | SPROCKET, ENGINE (NT:14) MODEL M/N/P/R/S | 1 |
| 1 | 27511-20401 | SPROCKET, ENGINE (NT:13) MODEL K/L/M/N/P/R/S OPT | 1 |
| 1 | 09380-20007 | CIRCLIP MODEL G/H/J | 1 |
| 1 | 09380-20009 | CIRCLIP MODEL K/L/M/N/P/R/S | 1 |
| 27600-02B11-120 | CHAIN, DRIVE (DID420MX120L) MODEL G/H/J; Includes Item(s) 32 | ||
| 27620-02B11 | JOINT (DID) MODEL G/H/J | ||
| 27620-02B20 | JOINT (RK) MODEL G/H/J | ||
| 1 | 27600-20931 | CHAIN, DRIVE (DID428X132L) 132->118L,MODEL K; Includes Item(s) 34 | 1 |
| 1 | 27620-20910 | JOINT (DID) MODEL K | 1 |
| 1 | 27620-05220 | JOINT (RK) MODEL K | 1 |
| 1 | 27600-02B40-118 | CHAIN, DRIVE (DID428G2X118L) MODEL K/L/M/N/P/R/S; Includes Item(s) 36 | 1 |
| 1 | 27620-02B40 | JOINT MODEL K/L/M/N/P/R/S | 1 |
| 09180-12116 | CUSHION, CHAIN MODEL G/H/J |
