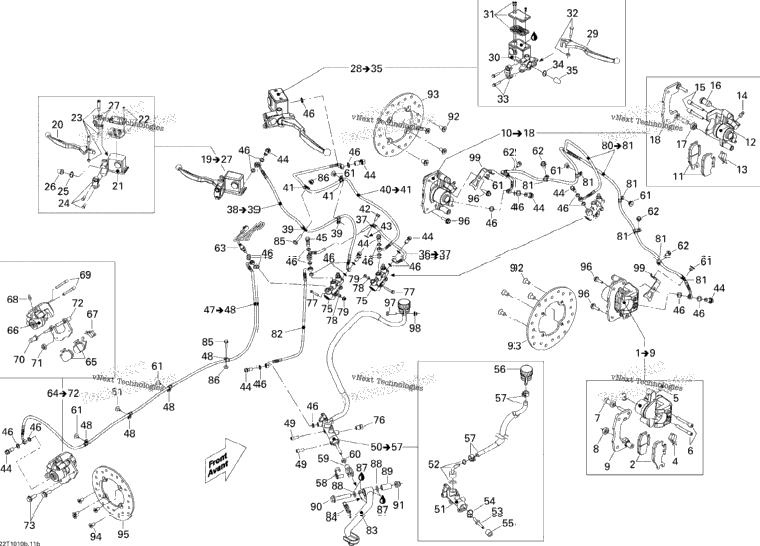

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705600593 | RH CALIPER Includes 1 to 9 | 1 |
| 1 | 705600004 | Brake Pad Kit | 1 |
| 1 | 705600078 | Piston Set | 1 |
| 1 | 705600079 | Spring | 1 |
| 1 | 705600080 | Bleeding Screw | 1 |
| 1 | 705600081 | Pin Set (2) | 1 |
| 1 | 705600082 | Compression Boot | 1 |
| 1 | 705600083 | Compression Boot | 1 |
| XXXX | Not Available As Spare Part - RH Caliper Support | ||
| 1 | 705600594 | LH CALIPER Includes 10 to 18 | 1 |
| 1 | 705600014 | Brake Pad Kit | 1 |
| XXXX | Not Available As Spare Part - LH Caliper Support | ||
| 1 | 705600595 | LH Front Master Cylinder Includes 19 to 27 | 1 |
| 1 | 705600243 | Lever Arm | 1 |
| XXXX | Not Available As Spare Part - Piston Kit | ||
| 1 | 705600084 | Cap Set | 1 |
| 1 | 705600246 | Brake Lever Bolt Kit | 1 |
| 1 | 705600087 | BRACKET KIT | 1 |
| 705600088 | CIRCLIP | ||
| 1 | 705600089 | COMPRESSION BOOT | 1 |
| 1 | 705600477 | PARKING KIT, BRAKE LEVER LOCK | 1 |
| 705600596 | RH FRONT MASTER CYLINDER Includes 28 to 35 | ||
| 1 | 705600629 | LEVER ARM | 1 |
| 1 | 705600086 | SWITCH KIT | 1 |
| 1 | 705600085 | BOLT KIT | 1 |
| 705600699 | Brake Hose, Front Includes 36 to 37 | ||
| 2 | 705600459 | Clamp | 2 |
| 1 | 705600761 | Brake Hose, Front LH Includes 38 to 39 | 1 |
| 1 | 705600459 | Clamp | 1 |
| 1 | 705600698 | BRAKE HOSE, FRONT RH Includes 40 to 41 | 1 |
| 1 | 210261680 | Hex. Flange Screw M6 X 16 | 1 |
| 1 | 224061121 | Flat Washer | 1 |
| 10 | 705600609 | Banjo Bolt (M10 x 1.25 thread) | 10 |
| 1 | 705600612 | Banjo Bolt | 1 |
| 26 | 705600310 | Copper Washer | 26 |
| 705600695 | BRAKE HOSE, REAR Includes 47 to 48 | ||
| 8 | 705600459 | Clamp | 8 |
| 2 | 250000136 | Socket Head Screw M8 X 20, Scotch Grip | 2 |
| 1 | 705600751 | Master Cylinder Includes 50 to 57 | 1 |
| 1 | 705600255 | Piston Set | 1 |
| 1 | 705600064 | PUSHER BRACKET, HOSE CONNECTOR | 1 |
| XXXX | Not Available As Spare Part - Rod Ass'y | ||
| 705600068 | Circlip | ||
| 705600090 | Compression Boot | ||
| 1 | 705600182 | Oil Tank, Brake Fluid Reservoir | 1 |
| 1 | 705600754 | Oil Housing Hose | 1 |
| 1 | 250400007 | Pin | 1 |
| 705600100 | Yoke | ||
| 1 | 232081414 | Hex. Nut M8 | 1 |
| 9 | 390406500 | Pop Rivet 3/16" | 9 |
| 4 | 210261040 | Hex. Flange Screw M6 X 10 | 4 |
| 1 | 705600798 | Brake Switch | 1 |
| 1 | 705600791 | REAR CALIPER Includes 63 to 72 | 1 |
| 1 | 705600398 | LH Brake Pad Kit | 1 |
| 2 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip | 2 |
| 2 | 705600800 | SPLITTER | 2 |
| 1 | 250100122 | HEX HEAD PIPE PLUG M10 DIN910 | 1 |
| 4 | 210264080 | HEX. SCREW M6 X 40 | 4 |
| 4 | 293900029 | Bushing | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 1 | 705600700 | BRAKE HOSE Includes 80 to 81 | 1 |
| 3 | 705600459 | Clamp | 3 |
| 705600701 | BRAKE HOSE, REAR | ||
| 1 | 705600784 | Brake Pedal, Black | 1 |
| 1 | 705600792 | Brake Pedal Spring | 1 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 2 | 293300144 | O-Ring | 2 |
| 1 | 705600815 | Inner Spacer | 1 |
| 1 | 207605544 | Hex. Flange Screw M10 X 55 | 1 |
| 1 | 233201414 | Hex. Flange Elastic Nut M10 | 1 |
| 8 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 8 |
| 2 | 705600604 | Disk Brake | 2 |
| 4 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 4 |
| 1 | 705600604 | Disk Brake | 1 |
| 4 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 4 |
| 1 | 207662544 | Hex. Flange Screw M6 X 25 | 1 |
| 705600795 | BRACKET |
