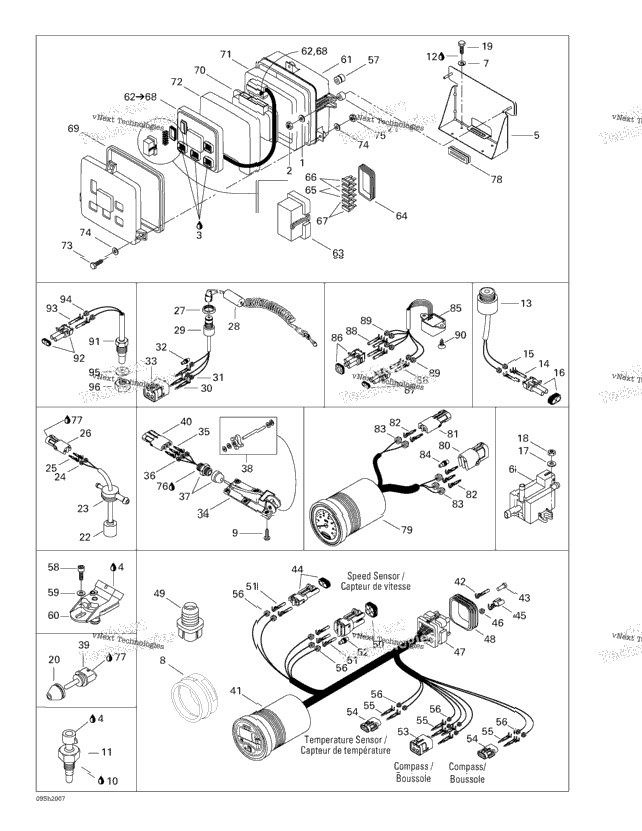

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 293550015 | Deoxit Lubricant, Spray | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 278001139 | Box Support Ass'y | ||
| 1 | 270600005 | Solenoid Valve | 1 |
| 4 | 234151601 | Helical Lock Washer M5 | 4 |
| 293720047 | Gauge Support | ||
| 6 | 250000020 | Phillips Screw M5 X 10 | 6 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 278001016 | Temperature Sensor | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 278001565 | Buzzer Ass'y Includes 13 - 16. GTX RFI 5648/5658 (GOLD). | ||
| 278000978 | Buzzer Ass'y GTX RFI 5515/5516 (COZUMEL). | ||
| 2 | 278000223 | Female Terminal | 2 |
| 2 | 278000218 | Wire Seal | 2 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 2 | 234051600 | Flat Washer M5, Stainless | 2 |
| 2 | 232551600 | Hex. Elastic Nut M5 | 2 |
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” | 4 |
| 1 | 278001054 | INSULATOR | 1 |
| 2 | 272000074 | SPACER | 2 |
| 278001401 | OIL LEVER SENSOR ASS'Y Includes 22 - 26. | ||
| 2 | 293720008 | Grommet | 2 |
| 2 | 278000222 | Male Terminal | 2 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 278001543 | Safety Lanyard | 1 |
| 278000977 | Safety Switch Includes 29 - 33. | ||
| 3 | 278000222 | Male Terminal | 3 |
| 3 | 278000218 | Wire Seal | 3 |
| 1 | 278000216 | Wire Seal | 1 |
| 278000890 | FEMALE CONNECTOR, 4 CIRCUITS | ||
| 278000849 | Speed Sensor Includes 34 - 38. | ||
| 1 | 293710031 | ELECTRIC CONNECTION | 1 |
| 295500108 | Paddle Wheel Kit | ||
| 1 | 270600000 | AIR TEMPERATURE SENSOR | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 1 | 278001541 | LCD INFO GAUGE Includes 41 - 56. | 1 |
| 278000995 | FEMALE TERMINAL | ||
| 10 | 293000070 | SEALING CAP | 10 |
| 3 | 278000994 | FEMALE TERMINAL | 3 |
| 278000996 | WIRE SEAL | ||
| 278000993 | Male Connector, 26 Circuits Includes 47 - 48. | ||
| 1 | 278001307 | WIRE SEAL | 1 |
| 1 | 293720042 | GROMMET | 1 |
| 1 | 278000891 | MALE CONNECTOR, 4 CIRCUITS | 1 |
| 5 | 278000223 | Female Terminal | 5 |
| 2 | 278000217 | Female Housing, 2 Circuits | 2 |
| 8 | 278000222 | Male Terminal | 8 |
| 13 | 278001065 | Wire Seal | 13 |
| 2 | 278001260 | UPPER INSULATOR | 2 |
| 1 | 205561260 | Socket Head Screw M6 X 12, Scotch Grip | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 270600040 | Pressure Sensor | 1 |
| XXXX | Not Available As Spare Part - Electronic Module Ass'y Includes 61 - 75. | ||
| 278000938 | Electronic Box Base | ||
| 278001529 | Electronic Module Includes 62 - 68. | ||
| 3 | 278000999 | Wire Seal | 3 |
| 1 | 278001069 | Fuse Holder Cover | 1 |
| 278001070 | Cover Seal | ||
| 2 | 278000344 | Fuse, 5 Amperes | 2 |
| 2 | 278000343 | Fuse, 15 Amperes | 2 |
| 2 | 278001197 | Fuse, 10 Amperes | 2 |
| 3 | 278000998 | Female Terminal | 3 |
| 293250063 | Gasket | ||
| 278001530 | Electronic Module | ||
| 278000941 | Lower Foam | ||
| 278001100 | Top Foam | ||
| 3 | 207063060 | Hex. Screw M6 X 30 | 3 |
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 | 3 |
| 1 | 219704454 | Was 293800013 Loctite 56765 | 1 |
| 278001259 | Insulator | ||
| 278001435 | Speedometer Ass'y Includes 79 - 84. | ||
| 5 | 278000222 | Male Terminal | 5 |
| 5 | 278001065 | Wire Seal | 5 |
| 278001243 | Compass Includes 85 - 86. | ||
| 6 | 278000223 | Female Terminal | 6 |
| 6 | 278000218 | Wire Seal | 6 |
| 2 | 293730016 | Dart, Black | 2 |
| 278000851 | Temperature Sensor Includes 91 - 94. | ||
| 1 | 234000600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 250100004 | NUT-HEX.PLASTIC M10 X 1.5 | 1 |
