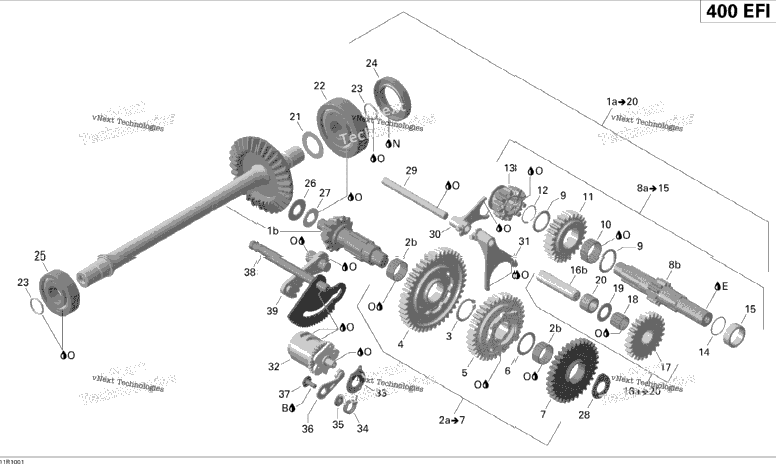

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 420684221 | DRIVE ASS'Y Includes 1a to 20 | ||
| 420296535 | BEVEL GEAR ASS?Y | ||
| 1 | 420281286 | Gear Wheel Set Includes 2a to 7 | 1 |
| 2 | 420632070 | Needle Bearing | 2 |
| 1 | 420245850 | Retaining Ring | 1 |
| XXXX | Not Available As Spare Part - Sliding Gear, 44 Teeth | ||
| XXXX | Not Available As Spare Part - Gear Pinion, 36 Teeth | ||
| XXXX | Not Available As Spare Part - Thrust Washer | ||
| XXXX | Not Available As Spare Part - Gear Pinion, 34 Teeth | ||
| 420620441 | Countershaft Ass'y, 11 Teeth Includes 8a to 15 | ||
| XXXX | Not Available As Spare Part - Countershaft, 11 Teeth | ||
| 1 | 420632070 | Needle Bearing | 1 |
| XXXX | Not Available As Spare Part - Gear Pinion, 25 Teeth | ||
| 1 | 420445300 | Circlip | 1 |
| XXXX | Not Available As Spare Part - Shift Gear, 16 Teeth | ||
| 1 | 420630040 | O-Ring | 1 |
| 420247110 | Distance Ring | ||
| 1 | 420635671 | Intermediate Gear Shaft Ass'y Includes 16a to 20 | 1 |
| 1 | 420229600 | Needle Pin | 1 |
| XXXX | Not Available As Spare Part - Intermediate Gear, 25 Teeth | ||
| 1 | 420432030 | Needle Cage | 1 |
| XXXX | Not Available As Spare Part - Distance Ring | ||
| 1 | 420281300 | Washer Thrust Set | 1 |
| 1 | 420632280 | Ball Bearing 6405 | 1 |
| 2 | 420430370 | O-Ring | 2 |
| 1 | 420650682 | Oil Seal | 1 |
| 1 | 420932825 | Ball Bearing | 1 |
| 1 | 420281306 | Thrust Washer Set, MAG Side | 1 |
| 1 | 420632300 | Axial Needle Bearing | 1 |
| 1 | 420281302 | Thrust Washer Set, CVT Side | 1 |
| 1 | 420229540 | Pin | 1 |
| 1 | 420257330 | Shift Fork | 1 |
| 1 | 420257340 | Shift Fork | 1 |
| 1 | 420257326 | Shift Drum Ass'y | 1 |
| 1 | 420627780 | ISOLATING WASHER | 1 |
| 1 | 420238290 | Index Spring | 1 |
| 1 | 420227710 | BUSHING | 1 |
| 1 | 703500254 | Index Lever Kit | 1 |
| 1 | 420241529 | Torx Screw M6 X 16 | 1 |
| 1 | 420620135 | Shift Shaft Ass'y | 1 |
| 1 | 420257315 | Parking Lock Lever Ass'y | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 293550030 | Grease, Super Lube | 1 |
| XXXX | Not Available As Spare Part - Engine Oil |
