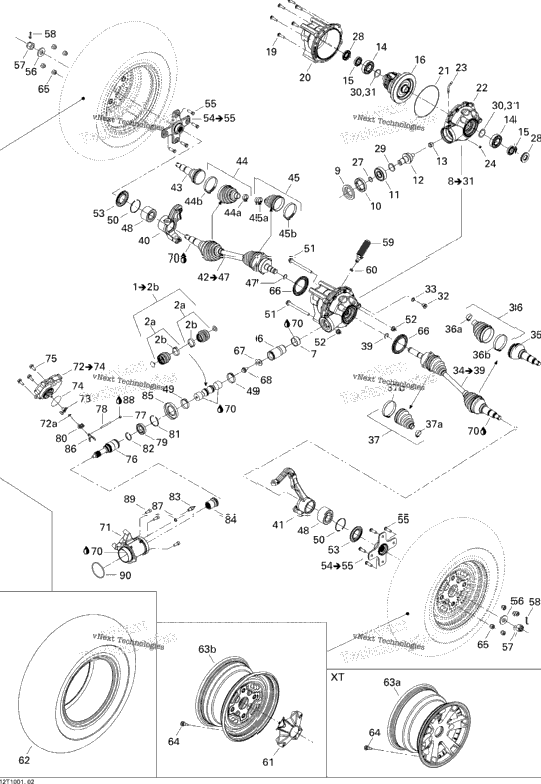

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705400337 | Front Drive Axle Ass'y Includes 1 to 2b | 1 |
| 703500255 | Rubber Boot Kit | ||
| 1 | 293650138 | Oetiker Gear Clamp 44.0MM | 1 |
| 1 | 705400149 | Coupling Sleeve | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| 705400723 | Differential Ass'y Includes 8 to 31 | ||
| 1 | 705400027 | Oil Seal | 1 |
| 1 | 705400661 | Nut | 1 |
| 1 | 705500260 | Ball Bearing | 1 |
| 705501051 | 10 TEETH PINION | ||
| 1 | 705500261 | Needle Bearing | 1 |
| 2 | 705500259 | Ball Bearing | 2 |
| 2 | 293350044 | Ball Bearing | 2 |
| 1 | 705400645 | Differential | 1 |
| 6 | 705500892 | SCREW | 6 |
| 1 | 705400297 | Front Cover | 1 |
| 1 | 705500265 | Seal | 1 |
| 705400646 | Front Cover | ||
| 1 | 705500893 | VENT VALVE | 1 |
| 1 | 705500894 | Drain Plug | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 2 | 705500255 | Oil Seal | 2 |
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 705500075 | Pinion Gear Shim .022" | ||
| 1 | 703500288 | Differential Shim Spool Kit | 1 |
| 1 | 703500050 | Differential Shim Spool Kit | 1 |
| 1 | 250400041 | Screw Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 1 | 705400660 | RH Homocinetic Joint Includes 34 to 39 | 1 |
| 705500560 | CV Joint | ||
| 1 | 705400511 | Wheel Boot Kit | 1 |
| 1 | 293650192 | OETIKER CLAMP 23MM | 1 |
| 1 | 293650194 | OETIKER CLAMP 70MM | 1 |
| 1 | 705400512 | Differential Boot Kit | 1 |
| 1 | 293650193 | OETIKER CLAMP 67MM | 1 |
| 1 | 705400042 | CIRCLIP | 1 |
| 1 | 705400816 | LH Knuckle | 1 |
| 1 | 705400818 | RH Knuckle | 1 |
| 1 | 705400659 | LH Homocinetic Joint Includes 42 to 47 | 1 |
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 293650138 | Oetiker Gear Clamp 44.0MM | 2 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 233201416 | Hex. Flange Elastic Nut M10 | 2 |
| 2 | 705501121 | Wear Sleeve | 2 |
| 2 | 705501131 | Wheel Hub Ass'y Includes 54 to 55 | 2 |
| 4 | 250300034 | Wheel Stud | 4 |
| 2 | 250200049 | Spring Washer | 2 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 250400036 | Cotter Pin | 2 |
| 1 | 705400552 | Rubber Bellow | 1 |
| 1 | 293650042 | Oetiker Clamp | 1 |
| 2 | 705400504 | WHEEL CAP XT | 2 |
| 2 | 705400563 | Wheel Cap STD | 2 |
| 2 | 705400009 | Front Tire STD | 2 |
| 2 | 705400326 | Front Tire XT Europe | 2 |
| 2 | 705400606 | Front Tire XT | 2 |
| 2 | 705400607 | Front Tire STD Europe | 2 |
| 705400666 | Front Rim XT Europe, International | ||
| 705400667 | Front Rim XT North America | ||
| 2 | 705400689 | RIM_12 INCH X 6 STD | 2 |
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 8 | 250100042 | Steel Wheel Nut STD | 8 |
| 8 | 250100082 | Chrome Wheel Nut M10 X 1.25 XT North America | 8 |
| 8 | 250100100 | Black Wheel Nut M10 X 1.25 XT Europe, International | 8 |
| 2 | 705400780 | Wear Sleeve | 2 |
| 1 | 250200102 | Flat Washer M12 | 1 |
| 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 705400169 | HOUSING | 1 |
| 1 | 705400581 | Actuator Ass'y Includes 72 to 74 | 1 |
| 1 | 415129176 | Circlip | 1 |
| 1 | 705400274 | Fork | 1 |
| 1 | 293300117 | O-Ring | 1 |
| 3 | 250000137 | Hex. Flange Screw M8 X 20, Scotch Grip | 3 |
| 1 | 705400172 | Union Shaft | 1 |
| 1 | 206580890 | Pressure Screw M8 X 8 | 1 |
| 1 | 250400025 | Dowell Pin | 1 |
| 1 | 705400249 | Ball Bearing | 1 |
| 1 | 705400538 | Slider | 1 |
| 1 | 293370029 | Circlip | 1 |
| 1 | 293370030 | Circlip | 1 |
| 1 | 710000324 | Switch | 1 |
| 1 | 705400389 | Coupling Sleeve | 1 |
| 1 | 293250138 | Oil Seal | 1 |
| 1 | 705400387 | Shifter Plate | 1 |
| 1 | 705600310 | Copper Washer | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 3 | 250000136 | Socket Head Screw M8 X 20, Scotch Grip | 3 |
| 1 | 293300091 | O-Ring | 1 |
