Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

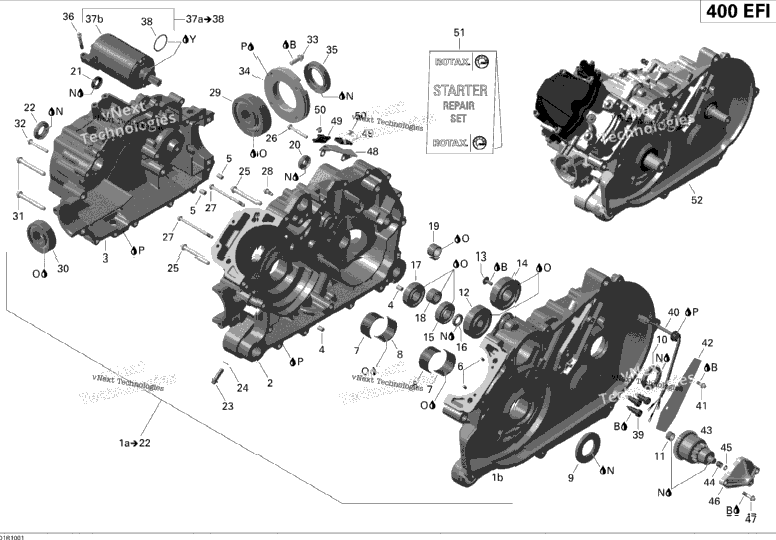

| 1 | 420296761 | CRANKCASE ASS'Y Includes 1a to 22 | 1 |
| XXXX | Not Available As Spare Part - Crankcase, CVT Side | ||
| XXXX | Not Available As Spare Part - Crankcase, MAG Side | ||
| XXXX | Not Available As Spare Part - Magneto Cover | ||
| 2 | 420632010 | Center Pin 8 X 12 | 2 |
| 2 | 420929650 | Drive Pin 5 X 10 | 2 |
| 2 | 420233960 | Plain Bearing | 2 |
| 2 | 420233965 | Plain Bearing | 2 |
| 1 | 420630152 | Oil Seal | 1 |
| 1 | 420950087 | Oil Seal | 1 |
| 1 | 420232480 | Needle Bushing | 1 |
| 1 | 420632290 | Ball Bearing | 1 |
| 1 | 420241529 | Torx Screw M6 X 16 | 1 |
| 1 | 420932825 | Ball Bearing | 1 |
| 1 | 420232291 | Ball Bearing 6302 | 1 |
| 1 | 420250130 | Oil Seal | 1 |
| 1 | 420932430 | Ball Bearing 6204 | 1 |
| 1 | 420232085 | Needle Bushing | 1 |
| 1 | 420832240 | Needle Bushing | 1 |
| 1 | 420250450 | Oil Seal | 1 |
| 1 | 420650315 | Oil Seal | 1 |
| 1 | 420930392 | Oil Seal | 1 |
| 1 | 420440372 | Torx Flange Screw M8 X 25 | 1 |
| 1 | 420950141 | Sealing Ring | 1 |
| 2 | 420440402 | Torx Flange Screw M8 X 65 | 2 |
| 14 | 420440322 | Torx Flange Screw M6 X 45 | 14 |
| 2 | 420440342 | Torx Flange Screw M6 X 85 | 2 |
| 1 | 420440162 | Torx Flange Screw M6 X 16 | 1 |
| 1 | 420632280 | Ball Bearing 6405 | 1 |
| 4 | 420440402 | Torx Flange Screw M8 X 65 | 4 |
| 12 | 420440322 | Torx Flange Screw M6 X 45 | 12 |
| 4 | 420440372 | Torx Flange Screw M8 X 25 | 4 |
| 1 | 420610243 | Bearing Cover | 1 |
| 1 | 420650682 | Oil Seal | 1 |
| 2 | 420440272 | Torx Flange Screw M6 X 35 | 2 |
| 1 | 420684282 | Electrical Starter Ass'y Includes 37a to 38 | 1 |
| XXXX | Not Available As Spare Part - Electrical Starter | ||
| XXXX | Not Available As Spare Part - O-Ring | ||
| 3 | 420241856 | Position Switch | 3 |
| 1 | 420265831 | Wiring Harness | 1 |
| 2 | 420440162 | Torx Flange Screw M6 X 16 | 2 |
| 1 | 420251290 | Cover Sheet | 1 |
| 1 | 420684050 | Starter Drive Ass'y | 1 |
| 1 | 420938204 | Spring | 1 |
| 1 | 420927571 | Washer | 1 |
| 1 | 420610891 | Reduction Cover Gear | 1 |
| 2 | 420240031 | Hex. Screw M6 X 25 | 2 |
| 1 | 420251490 | Retaining Plate | 1 |
| 2 | 420260590 | Connector Bracket | 2 |
| 2 | 420243010 | Blind Rivet | 2 |
| 1 | 420266307 | BRUSH KIT | 1 |
| 1 | 420040030 | Engine Long Block, 400 EFI | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 293550030 | Grease, Super Lube | 1 |
| XXXX | Not Available As Spare Part - Engine Oil | ||
| 1 | 293800081 | Loctite 5910, 300 ml | 1 |
| 1 | 219704464 | Was 420297616 Klueber Grease, 60g | 1 |
