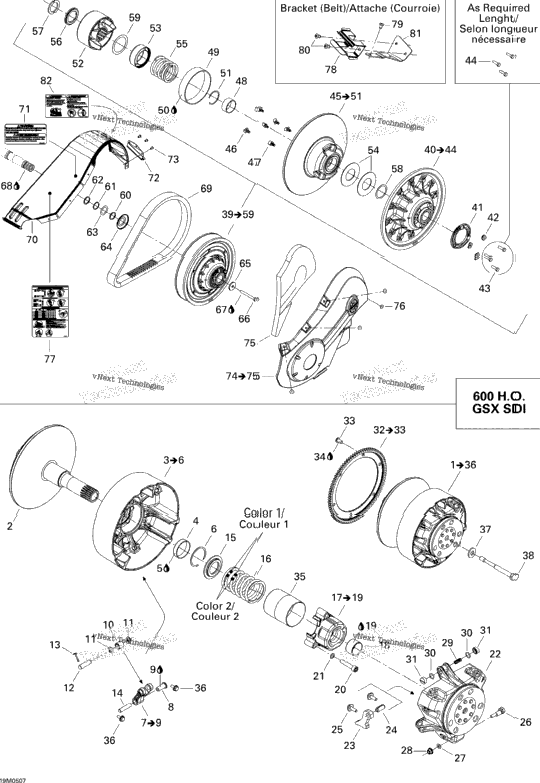

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Drive Pulley Ass'y Includes 1 to 36 | ||
| 1 | 417222294 | Fixed Flange Ass'y | 1 |
| 1 | 417222181 | Sliding Flange Ass'y Includes 3 to 6 | 1 |
| 1 | 417222758 | Bushing | 1 |
| 1 | 413703100 | Loctite 609, 10 ml | 1 |
| 1 | 293370037 | Circlip | 1 |
| 3 | 417222671 | Lever Includes 7 to 9 | 3 |
| 1 | 417222633 | Bushing | 1 |
| 3 | 417003900 | Roller Ass'y | 3 |
| 6 | 417004302 | Stopper Washer | 6 |
| 3 | 417004308 | Pin | 3 |
| 3 | 732958001 | Cotter Pin | 3 |
| 3 | 417009202 | Lever Axle | 3 |
| 1 | 417222312 | Spring Seat | 1 |
| 1 | 414689500 | Spring, Blue/yellow | 1 |
| 1 | 417007500 | Spring Cover Ass'y Includes 17 to 19 | 1 |
| 1 | 417009204 | Bushing | 1 |
| 3 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 3 |
| 3 | 250200009 | Lock Washer 8 mm | 3 |
| 417222213 | Governor Cup | ||
| 3 | 417222596 | RAMP 410 | 3 |
| 3 | 250400009 | Rolled Pin 10 X 22 | 3 |
| 6 | 250000059 | Hex. Flange Screw M6 X 18 | 6 |
| 3 | 417005500 | Calibration Screw | 3 |
| 3 | 417005600 | Washer | 3 |
| 3 | 233061414 | Hex. Flange Nut M6 | 3 |
| 3 | 417005700 | Spring | 3 |
| 6 | 732401030 | O-Ring | 6 |
| 6 | 417005800 | Slider Shoe | 6 |
| 1 | 861790500 | Gear Ring Kit Includes 32 to 33 | 1 |
| 6 | 236281684 | Hex. Screw M8 X 16 | 6 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 1 | 417009205 | Guard | 1 |
| 6 | 210361296 | Hex. Forming Screw M6 X 12 | 6 |
| 1 | 250200006 | Spring Washer 14 mm | 1 |
| 1 | 417120000 | Drive Pulley Bolt | 1 |
| XXXX | Not Available As Spare Part - Driven Pulley Ass'Y Includes 39 to 59 | ||
| 417126603 | Fixed Flange Ass'y Includes 40 to 44 | ||
| 415005800 | Adjustment Ring | ||
| 415005900 | Adjustment Shim | ||
| 3 | 207162544 | Hex. Screw M6 X 25 | 3 |
| 3 | 207162244 | HEX. SCREW M6 X 22 | 3 |
| 417126851 | Sliding Flange Ass'y Includes 45 to 51 | ||
| 417126373 | REAR CAM SLIDER SHOE, RED | ||
| 3 | 417126374 | Front Cam Slider Shoe, Black | 3 |
| XXXX | Not Available As Spare Part - Bushing | ||
| 414978100 | BUSHING | ||
| 371911200 | CIRCLIP | ||
| 417126385 | Cam Ass'y | ||
| 1 | 417126381 | GUARD | 1 |
| 2 | 504099600 | STOPPER WASHER | 2 |
| 417126687 | SPRING, BLACK | ||
| 417126733 | SPACER | ||
| 417126734 | HALF KEY | ||
| 1 | 504112300 | SHIM | 1 |
| 1 | 417126322 | SWIVEL ABUTMENT | 1 |
| 1 | 417300252 | Spacer | 1 |
| 1 | 417300265 | Spacer | 1 |
| 1 | 504112000 | Shim | 1 |
| 417300238 | PROTECTOR | ||
| 1 | 517302322 | Strength Washer | 1 |
| 1 | 207087544 | HEX. SCREW M8 X 75 | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 417300197 | Drive Belt | 1 |
| 1 | 417300213 | BELT GUARD | 1 |
| 1 | 516002670 | WARNING DECAL, SECURITY BELT GUARD | 1 |
| 417300216 | BELT GUARD BRACKET | ||
| 3 | 390909200 | Avex Rivet | 3 |
| 417300248 | Side Protector Ass'y Includes 74 to 75 | ||
| 417300246 | Foam | ||
| 4 | 293150103 | Pop Rivet 3/16" | 4 |
| 516001639 | Decal, Suspension Adjustment | ||
| 1 | 517281905 | Bracket | 1 |
| 1 | 390402200 | Pop Rivet 3/16" | 1 |
| 2 | 390402200 | Pop Rivet 3/16" | 2 |
| 417300282 | Bracket | ||
| 1 | 516002674 | EMERGENCY STARTING LABEL | 1 |
