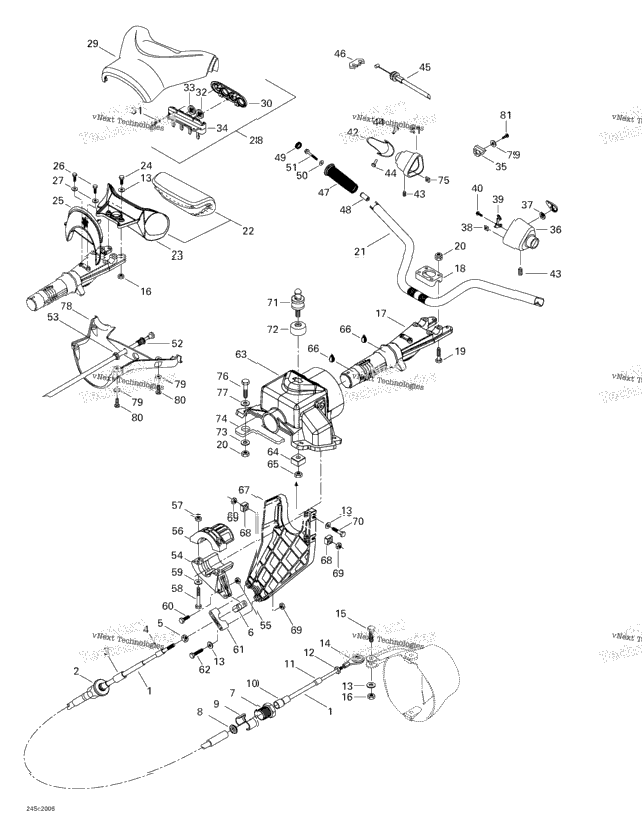

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 277000843 | Steering Cable Includes 1 - 5. | 1 |
| 1 | 277000782 | Ajustment Knob | 1 |
| 1 | 277000846 | Large Boot | 1 |
| 1 | 277000849 | Small Boot | 1 |
| 211000056 | Nut 1/4"-28 | ||
| 1 | 277000774 | Joint | 1 |
| 1 | 277000784 | Steering Cable Lock | 1 |
| 1 | 293830063 | Rubber Washer | 1 |
| 2 | 277000783 | Half-Ring | 2 |
| 212100056 | Nut 1/4"-28 | ||
| 8 | 234061600 | Stainless, Flat Washer M6 | 8 |
| 1 | 277000775 | Ball Joint | 1 |
| 1 | 207063560 | Hex. Screw M6 X 35 | 1 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 | 3 |
| 277000562400 | Steering Stem | ||
| 277000142 | STEERING CLAMP | ||
| 4 | 207085060 | Hex. Screw M8 X 50 | 4 |
| 8 | 232581650 | Elastic Stop Nut M8 | 8 |
| 277000824 | Handle Bar | ||
| 277000867 | Handle Pad Includes 22 - 23. | ||
| 277000687 | Handle Bar Pad Support | ||
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 1 | 277000549 | PLATE | 1 |
| 2 | 211000036 | HEX. FLANGED SCREW 1/4-20 X 1/2 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 277000753 | Upper Steering Cover Ass’Y Includes 28 - 34. | ||
| XXXX | Not Available As Spare Part - Upper Steering Cover | ||
| 1 | 277000688 | RETAINER PLATE | 1 |
| 3 | 241140060 | Screw K40 X 10 | 3 |
| 293000079 | Mode Knob | ||
| 293000080 | «Set» Knob | ||
| 277000563 | Switch Support | ||
| 2 | 293450153 | INSERT | 2 |
| 277000869 | LH HANDLE HOUSING ASS'Y Includes 36 - 38. | ||
| 277000306 | Switch Knob | ||
| 1 | 232860600 | SQUARE NUT M6 | 1 |
| 277000845 | Retainer Plate | ||
| 1 | 209631360 | SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 | 1 |
| 1 | 277000872 | THROTTLE HOUSING ASS'Y | 1 |
| 277000214 | Throttle Handle | ||
| 2 | 250000036 | Socket Head Screw M6 X 16 | 2 |
| 2 | 277000381 | PIN | 2 |
| 1 | 277000892 | THROTTLE CABLE | 1 |
| 1 | 277000279 | TAB LOCK | 1 |
| 1 | 295500691 | HANDLE GRIP KIT, BLACK Includes 47 - 51. | 1 |
| XXXX | Not Available As Spare Part - Grip Insert | ||
| 2 | 277000203 | Black, Cap | 2 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 1 | 270000383 | CHOKE CABLE Includes 52 - 53. | 1 |
| 211100030 | NUT-HEXAGONAL HI-LEX | ||
| 277000518 | Steering Stem Arm Includes 54 - 55. | ||
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 277000519 | Arm Thrust Includes 56 - 57. | ||
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 1 | 211000081 | Hex. Screw M6 X 30 | 1 |
| 1 | 277000162 | Support Thrust | 1 |
| 2 | 207065060 | Hex. Screw M6 X 50 | 2 |
| 1 | 277000898 | Steering Support Includes 63 - 65. | 1 |
| 271001115 | Nut Housing Ass’Y Includes 64 - 65. | ||
| 1 | 232001600 | HEX. NUT M10 | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 277000516 | CABLE SUPPORT Includes 67 - 69. | ||
| 3 | 269500252 | M6 Nut Housing Ass'y | 3 |
| 5 | 232561600 | Hex. Elastic Stop Nut M6 | 5 |
| 3 | 207162060 | Hex. Forming Screw M6 X 20 | 3 |
| 291001420 | Latch Stud | ||
| 1 | 293830078 | RUBBER PAD | 1 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 1 | 293250068 | Gasket | 1 |
| 4 | 207083560 | Hex. Screw M8 X 35 | 4 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 1 | 277000625 | LOWER STEERING COVER | 1 |
| 6 | 234051600 | Flat Washer M5, Stainless | 6 |
| 4 | 241141660 | Hex. Flange Screw K40 X 16 | 4 |
| 4 | 209630960 | PHILLIPS SCREW M3.9 X 9.5 | 4 |
