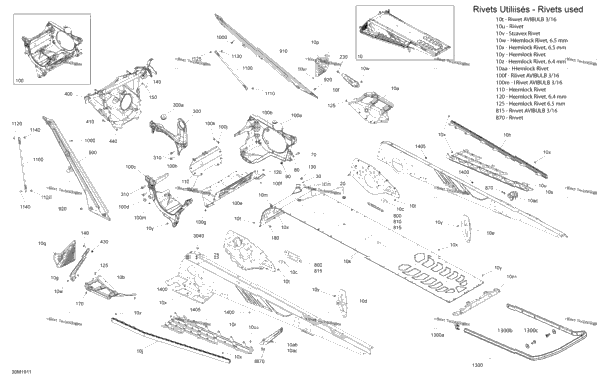

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 415130256 | Deep Black, Chassis Tunnel Module 175'' Black Frame | 1 |
| 415130257 | RED MODULE CHASSIS TUNNEL 175 INCH Red Frame | ||
| 1 | 518330680 | Deep Black, RH Footrest Reinforcement | 1 |
| 1 | 518330679 | Deep Black, LH Footrest Reinforcement | 1 |
| 2 | 518326647 | Reinforcement Plate | 2 |
| 1 | 518328830 | LH Suspension Bracket Rear | 1 |
| 1 | 518328828 | RH Suspension Bracket Rear | 1 |
| 1 | 518330072 | RH Footrest Reinforcement | 1 |
| 1 | 518329049 | LH Footrest Reinforcement | 1 |
| 1 | 518328737 | RH Roller | 1 |
| 1 | 518328738 | LH Roller | 1 |
| 1 | 415130273 | Radiator Tunnel 175 inches | 1 |
| 2 | 250300027 | Clinch Stud M6 X 20 | 2 |
| 1 | 518328990 | Rear Cap | 1 |
| 1 | 518328460 | RH Footrest | 1 |
| 1 | 518328463 | LH Footrest | 1 |
| 1 | 518328471 | LH Footrest | 1 |
| 1 | 518328473 | RH Footrest | 1 |
| 1 | 293150203 | Rivet AVIBULB 3/16 | 1 |
| 2 | 293150183 | Rivet | 2 |
| 4 | 293150144 | Stavex Rivet | 4 |
| 4 | 293150096 | Hemlock Rivet, 6.5 mm | 4 |
| 14 | 293150119 | Hemlock Rivet, 6.5 mm | 14 |
| 2 | 293150147 | Hemlock Rivet | 2 |
| 10 | 293150174 | Hemlock Rivet, 6.4 mm | 10 |
| 4 | 293150147 | Hemlock Rivet | 4 |
| 1 | 518329123 | Black - LH Roller Link Black Frame | 1 |
| 1 | 518330523 | Red, LH Rear Footrest Reinforcement Red Frame | 1 |
| 1 | 518329124 | Black, RH Roller Link Black Frame | 1 |
| 1 | 518330522 | Red, RH Rear Footrest Reinforcement Red Frame | 1 |
| 2 | 293730052 | Black, Plug | 2 |
| 4 | 250100199 | Insert Half Hex Body M6 x 1.0 | 4 |
| 2 | 506151252 | Washer | 2 |
| 2 | 250000942 | Hex Screw M8 X 30 | 2 |
| 2 | 234081410 | Flat Washer 8 mm | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 1 | 518330635 | Engine Chassis Module Ass'y Includes 100 to 100m | 1 |
| 1 | 518330554 | RH Side Member Ass'y Includes 100a to 100b | 1 |
| 1 | 505073317 | Leg Cushion | 1 |
| 1 | 518330557 | LH Side Member Ass'y Includes 100c to 100d | 1 |
| 1 | 518330074 | Bottom Plate | 1 |
| 14 | 293150203 | Rivet AVIBULB 3/16 | 14 |
| 1 | 293450268 | Insert M5 X 0.8 | 1 |
| 1 | 518330100 | Front Member | 1 |
| 4 | 207662046 | Hex. Flange Screw M6 X 20 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 2 | 293150203 | Rivet AVIBULB 3/16 | 2 |
| 3 | 293150147 | Hemlock Rivet | 3 |
| 2 | 293150174 | Hemlock Rivet, 6.4 mm | 2 |
| 2 | 293150120 | Hemlock Rivet 6.5 mm | 2 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 1 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 1 |
| 1 | 518328693 | Brace Ass'y Includes 300 to 300a | 1 |
| 1 | 512060295 | Rubber Mount | 1 |
| 4 | 250001060 | Screw-Pan HD.Torx M8X30 | 4 |
| 1 | 518330573 | S Module | 1 |
| 2 | 250001051 | Screw-Forming Hex.HD.FL. M6 X 16 | 2 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 6 | 207661646 | Hex. Flange Screw M6 X 16 | 6 |
| 2 | 518329480 | Member Fixation Plate North America | 2 |
| 1 | 518330299 | LH Member Fixation Plate Europe | 1 |
| 1 | 518330300 | RH Member Fixation Plate Europe | 1 |
| 4 | 293150203 | Rivet AVIBULB 3/16 | 4 |
| 4 | 293150183 | Rivet | 4 |
| 518329077 | Black, LH Member Black Item | ||
| 1 | 518330136 | Blue, LH Member Blue Item | 1 |
| 518330879 | Red, LH Member Red Item | ||
| 1 | 518330880 | Black, RH Member Ass'y Black Item | 1 |
| 518330884 | Red, RH Member Red Item | ||
| 1 | 518330887 | Gulfstream Blue, RH Member Blue Item | 1 |
| 4 | 250000887 | Pan Head Torx Screw M8 X 12 | 4 |
| 2 | 250300629 | Stud M5 X 20 | 2 |
| 2 | 518329974 | Upper Colomn Support | 2 |
| 1 | 233261416 | Elastic Flange Nut M6 X 1.0 | 1 |
| 1 | 207662544 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 518328834 | Rear Bumper 175 Includes 1300 to 1300a | 1 |
| 2 | 520001612 | Cap | 2 |
| 10 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip | 10 |
| 10 | 224061201 | Flat Washer | 10 |
| 3 | 293730047 | Black, Dart 8 mm | 3 |
| 2 | 293730060 | Black, Dart 10 mm | 2 |
| 2 | 293730079 | Dart | 2 |
