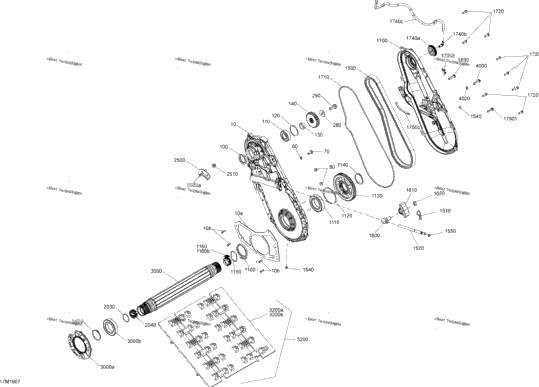

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 504153617 | Chaincase Ass'y Includes 10 to 10b | 1 |
| 1 | 504153560 | Plate Ass'y | 1 |
| 4 | 233261434 | Flange Elastic Nut M6 | 4 |
| 1 | 504082900 | Washer | 1 |
| 1 | 250000740 | Torx Screw M8 X 20, Scotch Grip | 1 |
| 2 | 233261434 | Flange Elastic Nut M6 | 2 |
| 1 | 293200168 | Oil Seal | 1 |
| 1 | 293350115 | Ball Bearing | 1 |
| 1 | 504152576 | Circlip | 1 |
| 1 | 504152628 | Shim | 1 |
| 1 | 504096200 | Sprocket, 21 Teeth | 1 |
| 1 | 504152784 | Spring Washer M10 | 1 |
| 1 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip | 1 |
| 1 | 293200159 | Oil Seal | 1 |
| 1 | 293350059 | Ball Bearing | 1 |
| 1 | 504152582 | Circlip | 1 |
| 1 | 504152581 | Sprocket, 49 Teeth SKU CDKF | 1 |
| 1 | 504152971 | Sprocket, 51 Teeth SKU CEKK | 1 |
| 1 | 504153778 | Sprocket, 53 Teeth SKU CFKK | 1 |
| 1 | 504152572 | Circlip | 1 |
| 1 | 293300201 | O-Ring | 1 |
| 1 | 504153696 | Magnetic Cap Ass'y Includes 1160 to 1160a | 1 |
| 1 | 504153697 | Magnetic Cap | 1 |
| 1 | 504153393 | Drive Chain, 114 Links SKU CDKF | 1 |
| 1 | 504153397 | Drive Chain 116 Links SKU CEKK - CFKK | 1 |
| 1 | 414575600 | Hair Pin | 1 |
| 1 | 504153760 | Adjustment Screw | 1 |
| 1 | 250500012 | Allen Drive Plug 1/8-27 PTF | 1 |
| 1 | 504153704 | Magnetic Plug | 1 |
| 1 | 293300202 | O-Ring | 1 |
| 1 | 504153559 | Tensioner | 1 |
| 1 | 504153312 | Slider Chain | 1 |
| 1 | 293370105 | Circlip | 1 |
| 1 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 | 1 |
| 1 | 504153897 | Chain Case Cover Ass'y Includes 1700 to 1700c | 1 |
| 1 | 515178223 | Clip Connector | 1 |
| 1 | 415130141 | Braided Sleeve | 1 |
| 1 | 293300200 | O-Ring | 1 |
| 8 | 250001012 | Torx T-30 Pan HD Taptite M6X20 | 8 |
| 504153535 | Cap Ass'y Includes 1740 to 1740c | ||
| 1 | 504152860 | Cap | 1 |
| 1 | 414580700 | Male Connector | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 250001015 | Hex. Flange Screw M6 X 35 | 1 |
| 1 | 504153695 | Bearing Housing Ass'y Includes 2500 to 2500a | 1 |
| 1 | 250300028 | Clinch Stud, M8 X 25 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 504153830 | Axle Drive Ass'y SKU CDKF | 1 |
| 1 | 504153426 | Retaining Ring SKU CDKF | 1 |
| 1 | 293350059 | Ball Bearing SKU CDKF | 1 |
| 1 | 504153836 | Axle Drive Ass'y SKU CEKK - CFKK | 1 |
| 1 | 504153426 | Retaining Ring SKU CEKK - CFKK | 1 |
| 1 | 293350059 | Ball Bearing SKU CEKK - CFKK | 1 |
| 1 | 504153198 | Track Ass'y 16" X 146" X 2.50" SKU CDKF | 1 |
| 1 | 415129528 | Track Guide SKU CDKF | 1 |
| 1 | 415129529 | Cleat SKU CDKF | 1 |
| 1 | 504153791 | Track Ass'y 16" X 154" X 2.50" SKU CEKK | 1 |
| 1 | 415130083 | Track Guide SKU CEKK | 1 |
| 1 | 415130084 | Cleat SKU CEKK | 1 |
| 1 | 504153792 | Track 16'' X 165'' X 2.50'' SKU CFKK | 1 |
| 1 | 415130083 | Track Guide SKU CFKK | 1 |
| 1 | 415130084 | Cleat SKU CFKK | 1 |
