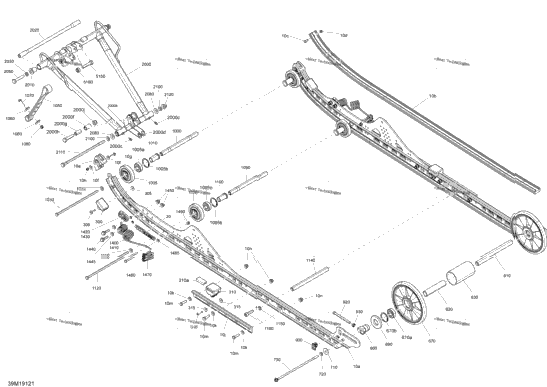

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 503195141 | Black, Runner 175 | 1 |
| 1 | 503194413 | Slider 175 | 1 |
| 2 | 208562531 | Phillips Screw M6 X 25 | 2 |
| 2 | 232561414 | Elastic Stop Nut M6 | 2 |
| 2 | 503194249 | Protector | 2 |
| 2 | 250200140 | Washer | 2 |
| 2 | 207652544 | Hex. Flange Screw M5 X 25 | 2 |
| 2 | 233251434 | Flange Elastic Nut M5 | 2 |
| 1 | 503193853 | Black Runner Reinforcement | 1 |
| 3 | 503192494 | Washer | 3 |
| 3 | 207183054 | Hex. Cap Screw M8 X 30 | 3 |
| 3 | 233281466 | Elastic Flange Nut M8 | 3 |
| 2 | 516006381 | Runner Decal | 2 |
| 2 | 503190576 | Rubber Stopper | 2 |
| 2 | 503191273 | Washer | 2 |
| 2 | 293150224 | Pop Rivet 3/16 | 2 |
| 2 | 503193717 | Rubber Stopper Ass'y | 2 |
| 1 | 572084800 | Reinforcement Stopper | 1 |
| 4 | 503191273 | Washer | 4 |
| 2 | 293150013 | Pop Rivet 3/16" | 2 |
| 1 | 503194261 | Rear Axle | 1 |
| 1 | 503194280 | Spacer | 1 |
| 1 | 503194286 | Bushing | 1 |
| 2 | 503194747 | Tip | 2 |
| 2 | 503193098 | Black, Wheel Ass'y 200 mm Includes 670 to 670b | 2 |
| 1 | 503190396 | Ball Bearing | 1 |
| 1 | 415129371 | Retaining Ring | 1 |
| 2 | 503190434 | Labyrinth Seal | 2 |
| 2 | 503194264 | Washer | 2 |
| 2 | 503192494 | Washer | 2 |
| 1 | 503194265 | Bolt | 1 |
| 2 | 503194266 | Tensioner | 2 |
| 2 | 503194267 | Hex. Cap Screw M8 X 95 | 2 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 1 | 503194939 | Axle | 1 |
| 4 | 503195125 | Black, Wheel Ass'y IS | 4 |
| 1 | 503194917 | Ball Bearing | 1 |
| 2 | 503191259 | Center Bushing | 2 |
| 1 | 503192440 | Bolt M8 X 248mm | 1 |
| 1 | 503194679 | Stopper Strap | 1 |
| 2 | 503193995 | Washer | 2 |
| 1 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 | 1 |
| 1 | 233261466 | Hex. Flange Elastic Nut M6 | 1 |
| 1 | 503195522 | Pivot Axle | 1 |
| 2 | 503195125 | Black, Wheel Ass'y Includes 1095 to 1095b | 2 |
| 4 | 503192494 | Washer | 4 |
| 1 | 503191260 | Axle Strap | 1 |
| 2 | 503192496 | Washer | 2 |
| 2 | 205503554 | Socket Head Screw M10 X 35 | 2 |
| 1 | 503194900 | LH Spring | 1 |
| 1 | 503194901 | RH Spring | 1 |
| 1 | 503194294 | LH Support | 1 |
| 1 | 503194295 | RH Support | 1 |
| 4 | 207683054 | Hex. Flange Screw M8 X 30 | 4 |
| 4 | 233281466 | Elastic Flange Nut M8 | 4 |
| 2 | 503195087 | Hook Ass'y | 2 |
| 2 | 207167054 | Hex. Cap Screw M6 X 70 | 2 |
| 2 | 250200039 | Flat Washer | 2 |
| 2 | 233261466 | Hex. Flange Elastic Nut M6 | 2 |
| 1 | 503195197 | Front Arm Ass'y Includes 2000 to 2000j | 1 |
| 2 | 408200700 | Grease Fitting | 2 |
| 1 | 503193464 | Rocker | 1 |
| 1 | 503193037 | Bushing | 1 |
| 1 | 503189282 | Bushing | 1 |
| 1 | 207005044 | Hex. Screw M10 X 1.5 X 50 | 1 |
| 1 | 233601416 | Elastic Locking Nut M10 X 1.5 | 1 |
| 1 | 503194466 | Spacer | 1 |
| 2 | 503194970 | Bushing | 2 |
| 1 | 503193441 | Upper Shaft | 1 |
| 2 | 250000605 | Hex. Screw S.Grip M10 X 55 | 2 |
| 2 | 250200032 | Washer | 2 |
| 2 | 250200143 | Flat Washer | 2 |
| 1 | 503193227 | Bolt M10 X 251MM | 1 |
| 1 | 233201466 | Flange Elastic Nut M10 | 1 |
| 1 | 233601466 | Elastic Locking Nut M10 | 1 |
