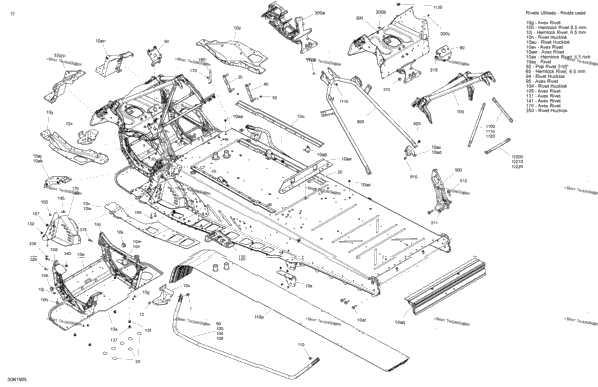

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 518329694 | Black, Frame Includes 10 to 10ay | 1 |
| 1 | 518329691 | Module E Includes 10a to 10m | 1 |
| 1 | 518326795 | RH Member | 1 |
| 1 | 518326796 | LH Member | 1 |
| 1 | 518326198 | Front Member | 1 |
| 4 | 605636002 | Clinch Nut Hexsert M8 | 4 |
| 5 | 390909100 | Avex Rivet | 5 |
| 2 | 293150120 | Hemlock Rivet 6.5 mm | 2 |
| 4 | 293150119 | Hemlock Rivet, 6.5 mm | 4 |
| 2 | 505072690 | Leg Bushing | 2 |
| 1 | 518328194 | Muffler Support | 1 |
| 1 | 293150163 | Rivet Hucklok | 1 |
| 1 | 509000976 | Tunnel Radiator | 1 |
| 2 | 518329083 | Rear Arm Bracket | 2 |
| 2 | 518326107 | Fastening rail | 2 |
| 1 | 518328821 | LH Footrest | 1 |
| 1 | 518328822 | RH Footrest | 1 |
| 1 | 605355235 | Fastening Bracket | 1 |
| 1 | 518328016 | LH Drive Axle Cover | 1 |
| 1 | 518328017 | RH Drive Axle Cover | 1 |
| 1 | 518325986 | Battery support plate | 1 |
| 2 | 518329164 | Seat Box Bracket | 2 |
| 1 | 518329109 | LH Support Tube Bracket | 1 |
| 1 | 518329110 | RH Support Tube Bracket | 1 |
| 10 | 605636003 | Clinch Nut M6 Hexsert | 10 |
| 1 | 518326430 | Clinch Nut plate | 1 |
| 250100065 | Clinching Nut Hexert M8 | ||
| 1 | 518325524 | LH Frame Corner | 1 |
| 1 | 518328024 | RH Frame Corner | 1 |
| 1 | 518328748 | Rear Profile | 1 |
| 6 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 6 |
| 14 | 293150163 | Rivet Hucklok | 14 |
| 1 | 390909100 | Avex Rivet | 1 |
| 1 | 390909200 | Avex Rivet | 1 |
| 1 | 293150119 | Hemlock Rivet, 6.5 mm | 1 |
| 13 | 293150183 | Rivet | 13 |
| 2 | 518325560 | Adhesive Patch | 2 |
| 1 | 518326123 | Gearbox Front Plate | 1 |
| 1 | 518326124 | Gearbox Rear Plate | 1 |
| 2 | 390402200 | Pop Rivet 3/16" | 2 |
| 1 | 518325943 | MAG Engine Support | 1 |
| 2 | 293150119 | Hemlock Rivet, 6.5 mm | 2 |
| 1 | 518326963 | LH Footboard Support Tube | 1 |
| 8 | 390909100 | Avex Rivet | 8 |
| 1 | 518326964 | RH Footboard Support Tube | 1 |
| 2 | 207662056 | Hex. Flange Screw M6 x 20 | 2 |
| 2 | 520001208 | Black Rear Footrest | 2 |
| 1 | 518327375 | Toe hold L.H. Package SE | 1 |
| 1 | 518327374 | Black, LH Toe Hook Package LE | 1 |
| 1 | 605636003 | Clinch Nut M6 Hexsert | 1 |
| 4 | 414644300 | Black, Dart Package LE | 4 |
| 1 | 518327376 | Black RH Toe Hook | 1 |
| 2 | 390909200 | Avex Rivet | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 4 | 250000717 | Torx Head Screw M6 X 16 | 4 |
| 1 | 514054846 | Spring Bracket | 1 |
| 1 | 518328392 | Cross Member Package LE | 1 |
| 1 | 518328396 | Cross Member Package SE | 1 |
| 1 | 518327487 | Front Suspension Support | 1 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 2 | 210262050 | Hexagonal Head Screw | 2 |
| 1 | 207662544 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 6 | 293150163 | Rivet Hucklok | 6 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 | 2 |
| 1 | 518328434 | Pulley Support | 1 |
| 1 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 1 |
| 2 | 207583086 | Hex. Flange Screw M8 X 30, Scotch Grip | 2 |
| 1 | 518326970 | Front Member | 1 |
| 1 | 518329105 | Upper Support Tube | 1 |
| 2 | 207182044 | Hex. Screw M8 X 20 | 2 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 2 | 518325114 | Upper Lateral Column Support | 2 |
| 2 | 233261416 | Elastic Flange Nut M6 X 1.0 | 2 |
| 1 | 414227300 | Clip | 1 |
| 1 | 518325115 | Center Column Support | 1 |
| 2 | 207662556 | Hex. Flange Screw M6 X 25 | 2 |
