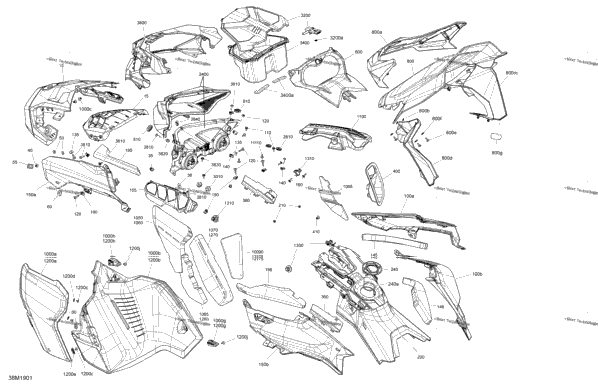

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 517306288 | Deep Black, Center Hood | 1 |
| 1 | 517306424 | Center Hood Grille | 1 |
| 2 | 250000958 | Panel Nut M5 X 0.8 | 2 |
| 2 | 250200166 | Washer | 2 |
| 6 | 293150104 | Pop Rivet 3/16" | 6 |
| 1 | 517124300 | Washer | 1 |
| 1 | 517305109 | Rivet Plate | 1 |
| 1 | 508000853 | Push Nut | 1 |
| 1 | 517306546 | RH Front Hood | 1 |
| 1 | 517306547 | RH Rear Hood | 1 |
| 3 | 250000725 | Screw M4 X 16 | 3 |
| 1 | 250000587 | Torx Screw M5 X 26 | 1 |
| 1 | 250200166 | Washer | 1 |
| 1 | 517305763 | RH Front Hood Foam | 1 |
| 1 | 517306001 | RH Hood Foam | 1 |
| 1 | 517306549 | LH Front Hood | 1 |
| 1 | 517306550 | LH Rear Hood | 1 |
| 1 | 517306690 | LH Hood Trim | 1 |
| 1 | 250000725 | Screw M4 X 16 | 1 |
| 1 | 250000958 | Panel Nut M5 X 0.8 | 1 |
| 1 | 517305764 | LH Front Hood Foam | 1 |
| 1 | 517306002 | LH Hood Foam | 1 |
| 1 | 517306830 | Rear Console | 1 |
| 2 | 233251434 | Flange Elastic Nut M5 | 2 |
| 1 | 517306602 | Console Nut Includes 240 to 240a | 1 |
| 1 | 706002839 | O-Ring | 1 |
| 1 | 517306582 | LH Front Console | 1 |
| 1 | 517306302 | Reverse Lever Trim | 1 |
| 1 | 293150104 | Pop Rivet 3/16" | 1 |
| 1 | 517306660 | Indicator Support | 1 |
| 1 | 517306900 | Windshield 585 MM Ass'y Includes 800 to 800g | 1 |
| 1 | 517306183 | Deep Black, Windshield Support | 1 |
| 8 | 732610072 | Push Nut | 8 |
| 1 | 517306063 | Deflector RH, Black 63% Light Transm. | 1 |
| 1 | 517306064 | Deflector LH, Black 63% Light Transm. | 1 |
| 6 | 250000889 | Screw M4 X 16 | 6 |
| 6 | 250200024 | Rubber Washer 5 mm | 6 |
| 1 | 516009227 | Decal | 1 |
| 2 | 517303756 | Grommet | 2 |
| 1 | 517306557 | RH Front Panel | 1 |
| 1 | 517306904 | RH Rear Panel | 1 |
| 1 | 517305773 | RH Rear Latch | 1 |
| 1 | 517305979 | RH Front Latch | 1 |
| 1 | 517306461 | Foam | 1 |
| 1 | 517306495 | Foam | 1 |
| 1 | 517306462 | Foam | 1 |
| 517306915 | Foam | ||
| 1 | 517306307 | Grill | 1 |
| 2 | 250000725 | Screw M4 X 16 | 2 |
| 1 | 517306560 | LH Front Panel | 1 |
| 1 | 517306296 | LH Rear Panel | 1 |
| 3 | 293150104 | Pop Rivet 3/16" | 3 |
| 2 | 517124300 | Washer | 2 |
| 1 | 517305774 | LH Rear Latch | 1 |
| 1 | 517305980 | LH Front Latch | 1 |
| 1 | 517306463 | Foam | 1 |
| 1 | 517306464 | Foam | 1 |
| 1 | 517306465 | Foam | 1 |
| 1 | 517306496 | LH Rear Panel Foam | 1 |
| 2 | 517305985 | Rear Stud | 2 |
| 2 | 517305988 | Front Stud | 2 |
| 1 | 517305752 | Headlamp | 1 |
| 1 | 415130081 | Bulb | 1 |
| 2 | 517302841 | Grommet | 2 |
| 1 | 517305871 | Deep Black, Cover Ass'y Includes 3200 to 3200a | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 1 | 517306058 | Trunk Ass'y Includes 3400 to 3400a | 1 |
| 2 | 517305157 | Seal Joint | 2 |
| 1 | 517306301 | Headlamp Fairing | 1 |
| 4 | 250000528 | Torx Screw M5 X 20 | 4 |
| 4 | 250000958 | Panel Nut M5 X 0.8 | 4 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
