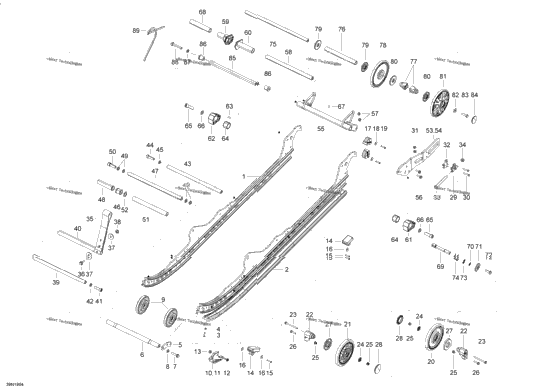

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 503194351 | Black Runner Includes 10 to 10a | 2 |
| 1 | 503194188 | Runner | 1 |
| 2 | 503192618 | Black Slider, 154" | 2 |
| 4 | 208562531 | Phillips Screw M6 X 25 | 4 |
| 4 | 232561414 | Elastic Stop Nut M6 | 4 |
| 2 | 503192612 | Plate | 2 |
| 1 | 503192643 | Axle | 1 |
| 2 | 207583586 | Hex. Flange Screw M8 X 35, Scotch Grip Sub 250000986 | 2 |
| 2 | 503189157 | Washer | 2 |
| 2 | 503192611 | Black, Wheel Ass'y, 100 mm Includes 9 to 9a | 2 |
| 1 | 503190396 | Ball Bearing Not Shown | 1 |
| 1 | 503192610 | RH Protector | 1 |
| 1 | 503192609 | LH Protector | 1 |
| 2 | 207684044 | Hex. Flange Screw M8 X 40 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 4 | 503190576 | Rubber Stopper | 4 |
| 4 | 293150224 | Pop Rivet 3/16 | 4 |
| 4 | 503191273 | Washer | 4 |
| 4 | 503191291 | Rubber Stopper | 4 |
| 4 | 503191311 | Black, Wheel Ass'y 147 mm | 4 |
| 4 | 503191152 | Black, Wheel Ass'y 147 mm | 4 |
| 8 | 503193894 | Casted Support | 8 |
| 8 | 207667056 | Hex. Flange Screw M6 X 70 | 8 |
| 8 | 503191820 | Wheel Cup M6 | 8 |
| 16 | 233261466 | Hex. Flange Elastic Nut M6 | 16 |
| 8 | 207662556 | Hex. Flange Screw M6 X 25 | 8 |
| 8 | 503190434 | Labyrinth Seal | 8 |
| 8 | 503192771 | Black, Wheel Cap | 8 |
| 2 | 503192583 | Tensioner | 2 |
| 4 | 207063054 | Hex. Cap Screw M6 X 30 | 4 |
| 4 | 233261466 | Hex. Flange Elastic Nut M6 | 4 |
| 2 | 503193250 | Spacer | 2 |
| 2 | 230100054 | Hex Screw M10 x 100 | 2 |
| 2 | 233601466 | Elastic Locking Nut M10 | 2 |
| 2 | 503192360 | Stopper Strap | 2 |
| 2 | 207683044 | Hex. Flange Screw M8 X 30 | 2 |
| 4 | 224081301 | Flat Washer | 4 |
| 1 | 503192623 | Axle Strap | 1 |
| 1 | 503192679 | Spacer | 1 |
| 2 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip | 2 |
| 2 | 503189564 | Washer | 2 |
| 1 | 503191418 | Axle Strap | 1 |
| 1 | 503193967 | Shaft | 1 |
| 1 | 503191259 | Center Bushing | 1 |
| 4 | 503189276 | Washer | 4 |
| 2 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip | 2 |
| 1 | 503191421 | Spacer | 1 |
| 1 | 503189273 | Washer | 1 |
| 1 | 503193970 | RH Rail Pivot | 1 |
| 1 | 503193969 | LH Rail Pivot | 1 |
| 1 | 503191414 | Welded Pivot | 1 |
| 4 | 232581414 | Hex. Elastic Stop Nut M8 | 4 |
| 1 | 503191711 | Cam Axle | 1 |
| 1 | 503191190 | RH Spring Cam | 1 |
| 1 | 503191668 | LH Spring Cam | 1 |
| 1 | 503192426 | LH Block | 1 |
| 1 | 503192427 | RH Block | 1 |
| 1 | 250400005 | DOWEL PIN 4 X 8 MM | 1 |
| 2 | 503189488 | Block Guide | 2 |
| 2 | 503189148 | Washer | 2 |
| 1 | 408200700 | Grease Fitting | 1 |
| 1 | 503191713 | Spacer | 1 |
| 1 | 503192437 | Rode | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 503192438 | Handle | 1 |
| 1 | 250000742 | Torx Screw M5 X 14 | 1 |
| 1 | 293370068 | Circlip | 1 |
| 1 | 503192436 | Compression Spring | 1 |
| 1 | 503191408 | Rear Axle | 1 |
| 1 | 503191409 | Spacer | 1 |
| 4 | 503190428 | Rear Wheel Spacer | 4 |
| 2 | 503192140 | Black, Wheel Ass'y, 165 mm Includes 78 to 78b | 2 |
| 1 | 415129371 | Retaining Ring Not Shown | 1 |
| 2 | 503190682 | Labyrinth Seal | 2 |
| 4 | 503190434 | Labyrinth Seal | 4 |
| 2 | 503192128 | Deep Black, Wheel Ass'y, 165 mm | 2 |
| 2 | 503190439 | Washer | 2 |
| 2 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 | 2 |
| 2 | 503192771 | Black, Wheel Cap | 2 |
| 1 | 503191390 | Lower Shaft | 1 |
| 2 | 503189324 | Bushing | 2 |
| 2 | 503192496 | Washer | 2 |
| 2 | 250000605 | Hex. Screw S.Grip M10 X 55 | 2 |
| 1 | 503194624 | Spring | 1 |
