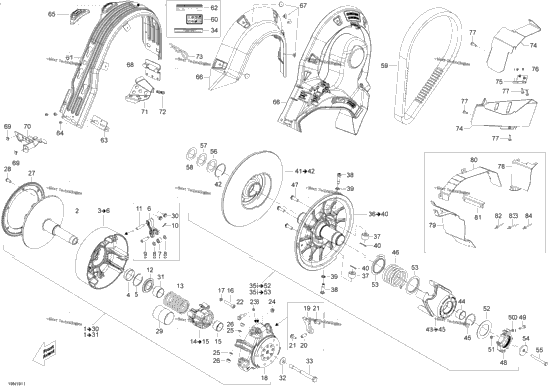

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 417223232 | Fixed Flange Ass'y | 1 |
| 1 | 417223444 | Sliding Flange Ass'y Includes 3 to 5 | 1 |
| 1 | 417223086 | Bushing | 1 |
| 1 | 293370071 | Circlip | 1 |
| 3 | 417222671 | Lever | 3 |
| 3 | 417222947 | Roller | 3 |
| 6 | 417004302 | Stopper Washer | 6 |
| 3 | 417222594 | Pin | 3 |
| 3 | 250400060 | Cotter Pin | 3 |
| 3 | 417223164 | Lever Axle | 3 |
| 1 | 417222312 | Spring Seat | 1 |
| 1 | 414742100 | SPRING YELLOW/GREEN | 1 |
| 1 | 417222759 | Spring Cover Ass'y Includes 14 to 15 | 1 |
| 1 | 417009204 | Bushing | 1 |
| 3 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 3 |
| 3 | 250200009 | Lock Washer 8 mm | 3 |
| 1 | 417223666 | Governor Cup Ass'y | 1 |
| 3 | 417222508 | Ramp 413 Europe | 3 |
| 3 | 417224238 | Ramp 450 North America | 3 |
| 3 | 250400050 | Spring Pin M10 X 22 | 3 |
| 6 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip | 6 |
| 3 | 417223501 | Calibration Screw | 3 |
| 3 | 417005600 | Washer | 3 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 6 | 732401030 | O-Ring | 6 |
| 6 | 417223271 | Slider Shoe | 6 |
| 1 | 417223739 | Ring Gear | 1 |
| 6 | 250000533 | Hex. Flange Screw M8 X 1.25 X 16 | 6 |
| 1 | 417009205 | Guard | 1 |
| 6 | 250000416 | Serrated Hex. Flange Bolt M6 | 6 |
| 1 | 417223471 | Bushing | 1 |
| 1 | 250200144 | Conical Spring Washer M14 | 1 |
| 1 | 417300409 | TRA 7 Bolt (M14 X 153.5 mm) | 1 |
| 1 | 516005503 | Decal English | 1 |
| 1 | 417127433 | Fixed Flange Ass'y | 1 |
| 1 | 417127366 | Slider Flange Ass'y | 1 |
| 1 | 417127411 | Cam Ass'y | 1 |
| 1 | 417127039 | Black, Spring | 1 |
| 2 | 417127116 | Swivel Abutment | 2 |
| 4 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr | 4 |
| 1 | 415129604 | Calibration Ass'y | 1 |
| 1 | 205052544 | Socket Screw M5 X 25 | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 232551414 | Elastic Stop Nut M5 | 1 |
| 1 | 417127155 | Washer | 1 |
| 1 | 517302322 | Strength Washer | 1 |
| 1 | 207287544 | Hex. Cap Screw M8 X 75 | 1 |
| 1 | 417300252 | Spacer | 1 |
| 1 | 417300265 | Spacer | 1 |
| 1 | 504112000 | Shim | 1 |
| 1 | 417300531 | Drive Belt | 1 |
| 1 | 516003919 | Warning Decal Europe | 1 |
| 1 | 417300357 | Belt Guard | 1 |
| 1 | 516006900 | Security Label, Belt Guard | 1 |
| 1 | 417300380 | Reinforcement | 1 |
| 2 | 390909200 | Avex Rivet | 2 |
| 1 | 417300381 | Guide | 1 |
| 1 | 417300441 | CVT Air Duct | 1 |
| 5 | 293150103 | Pop Rivet 3/16" | 5 |
| 1 | 293150103 | Pop Rivet 3/16" | 1 |
| 1 | 417300518 | Air Duct Extreme CVT North America | 1 |
| 1 | 417300527 | Air Duct Extreme CVT North America | 1 |
| 1 | 417300520 | Air Duct Extreme CVT North America | 1 |
| 1 | 417300521 | Air Duct Extreme CVT North America | 1 |
| 1 | 390909100 | Avex Rivet North America | 1 |
| 7 | 390909200 | Avex Rivet North America | 7 |
| 3 | 293150103 | Pop Rivet 3/16" North America | 3 |
| 1 | 417300363 | Belt Guard Bracket | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 1 | 417300364 | Belt Guard Bracket | 1 |
| 1 | 518325626 | Brake Hose Cover | 1 |
| 2 | 293150163 | Rivet Hucklok | 2 |
| 1 | 114045200 | Hair Pin | 1 |
| 1 | 417300461 | Air Duct Includes 550 to 550a | 1 |
| 2 | 605636003 | Clinch Nut M6 Hexsert | 2 |
| 1 | 417300497 | Air Duct Bracket | 1 |
| 2 | 293150102 | Rivet 3/16" | 2 |
| 4 | 250000722 | Torx Screw M6 X 20 | 4 |
| 1 | 293150096 | Hemlock Rivet, 6.5 mm Europe | 1 |
| 2 | 232561414 | Elastic Stop Nut M6 | 2 |
