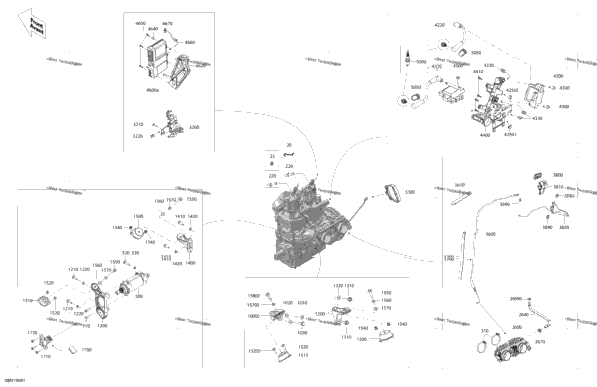

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 515177770 | Locker | 1 |
| 2 | 732610072 | Push Nut | 2 |
| 2 | 420924724 | Hose Nipple | 2 |
| 1 | 420889202 | Throttle Body | 1 |
| 2 | 512060943 | Gemi Clamp | 2 |
| 1 | 515178187 | Electric Starter Includes 500 to 500a | 1 |
| 2 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip | 2 |
| 1 | 207583544 | Hex Flange Screw M8 X 35, Scotch Grip | 1 |
| 1 | 250200008 | Flat Washer With Teflon 8 mm | 1 |
| 1 | 512060478 | Rear Support, PTO | 1 |
| 1 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip | 1 |
| 2 | 250200146 | Conical Spring Washer M8 | 2 |
| 1 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 1 |
| 1 | 512060714 | Front Support, PTO | 1 |
| 2 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 2 |
| 2 | 234281474 | Conical Spring Washer M8 | 2 |
| 1 | 512060559 | Rear Support, MAG | 1 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 1 | 234281474 | Conical Spring Washer M8 | 1 |
| 1 | 512060469 | Front Support, MAG | 1 |
| 2 | 512060729 | Rubber Mount | 2 |
| 1 | 512060387 | Rubber Mount | 1 |
| 1 | 512060448 | Rubber Mount | 1 |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 3 | 207683044 | Hex. Flange Screw M8 X 30 | 3 |
| 3 | 503183200 | Yellow, Washer | 3 |
| 4 | 234281474 | Conical Spring Washer M8 | 4 |
| 1 | 250000796 | Hex. Flange Screw M8 X 1.25 X 25 | 1 |
| 1 | 512060766 | Stopper | 1 |
| 1 | 512060576 | Stopper Support | 1 |
| 3 | 207562544 | Hex. Flange Screw M6 X 25 | 3 |
| 1 | 512060944 | Bleeder's Collector Outlet Hose | 1 |
| 1 | 293650172 | Tridon Gear Clamp | 1 |
| 1 | 293650046 | Oetiker Clamp | 1 |
| 1 | 512060298 | Solenoid Support | 1 |
| 1 | 207652044 | Hex.Flange Screw M5 X 20 | 1 |
| 1 | 250000958 | Panel Nut M5 X 0.8 | 1 |
| 1 | 512060633 | Throttle Cable | 1 |
| 1 | 293850117 | Rubber Strap | 1 |
| 1 | 414274500 | Circlip | 1 |
| 1 | 219704399 | Was 409901700 Tubing (9 mm) | 1 |
| 1 | 512060859 | Upper Housing | 1 |
| 1 | 512060860 | Lower Housing | 1 |
| 1 | 512061250 | Handle Ass'y | 1 |
| 2 | 732601143 | Flange Screw | 2 |
| 2 | 512060953 | Ignition Coil | 2 |
| 2 | 512061126 | Ignition Cable, 177mm long | 2 |
| 2 | 710000992 | Clip | 2 |
| 3 | 250000253 | Hex. Flange Screw M6 X 1.0 X 30 | 3 |
| 3 | 293100003 | Nut Welded, M6 | 3 |
| 1 | 512060888 | Ignition Coils Support | 1 |
| 4 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 4 |
| 1 | 512060756 | Calibrated Module | 1 |
| 1 | 512060858 | Calibrated Module Support | 1 |
| 1 | 250200040 | Flat Washer | 1 |
| 3 | 250000760 | Torx Screw Truss Head K50X20 T20 | 3 |
| 1 | 219704409 | Was 415080100 Fuel Line Primer 3,2mm | 1 |
| 1 | 414814100 | Male Connector | 1 |
| 512060553 | Spark Plug 800-TEC | ||
| 2 | 512060993 | Clamp | 2 |
| 1 | 512060136 | Starter Grip Package LTD | 1 |
