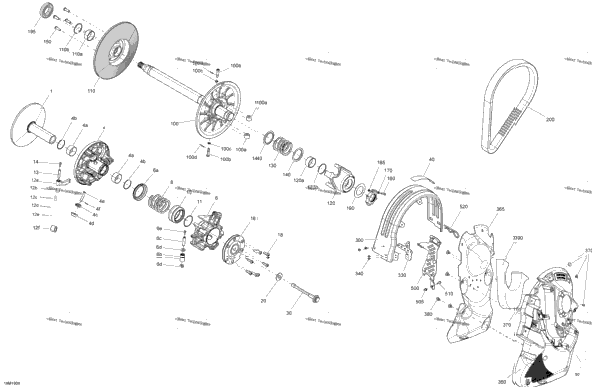

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 417224278 | Fixed Flange Ass'y | 1 |
| 1 | 417224457 | Sheave Drive Pulley Sliding Ass'y Includes 4 to 4f | 1 |
| 2 | 293250389 | Bushing | 2 |
| 2 | 293370117 | Circlip | 2 |
| 3 | 417224153 | Back Torque Roller | 3 |
| 3 | 417224458 | Roller Pulley Ext | 3 |
| 3 | 417224277 | Axle - 8mm | 3 |
| 3 | 250400074 | Spring Pin 3/32" X 3/4" | 3 |
| 1 | 417224389 | Spider Ass'y Includes 6 to 6e | 1 |
| 1 | 417224002 | Spring Guide | 1 |
| 3 | 417223808 | Roller Ass'y | 3 |
| 3 | 417223989 | Axle - 10mm | 3 |
| 6 | 417224009 | Washer-Thrust | 6 |
| 3 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip | 3 |
| 1 | 417224172 | Clutch Spring | 1 |
| 1 | 417224003 | Seat Spring | 1 |
| 1 | 293370116 | Circlip | 1 |
| 1 | 417224227 | Ramp 968 | 1 |
| 1 | 417224113 | Molded Cam | 1 |
| 1 | 417224086 | RH Lever | 1 |
| 1 | 417224114 | LH Lever | 1 |
| 1 | 417224221 | Pivot 33mm | 1 |
| 3 | 417223631 | Axle - 8mm | 3 |
| 1 | 417224201 | Drive Cushion | 1 |
| 6 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr | 6 |
| 1 | 250200144 | Conical Spring Washer M14 | 1 |
| 1 | 417300522 | Pulley Drive Bolt M14 X 144 | 1 |
| 1 | 516007667 | Warning Decal | 1 |
| 1 | 516009265 | Decal Ramp Clicker | 1 |
| 1 | 417127595 | Fixed Flange Ass'y Includes 100 to 100d | 1 |
| 2 | 417127016 | Pulley Roller | 2 |
| 2 | 417127294 | Pivot Stud | 2 |
| 2 | 250200009 | Lock Washer 8 mm | 2 |
| 2 | 250400070 | Spring Pin | 2 |
| 1 | 417127317 | Sliding Flange Ass'y Includes 110 to 110b | 1 |
| 1 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L | 1 |
| 1 | 293370049 | Circlip | 1 |
| 1 | 417127325 | Cam Ass'y Includes 120 to 120c | 1 |
| 1 | 417127137 | Green, Spring | 1 |
| 2 | 417127116 | Swivel Abutment | 2 |
| 4 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr | 4 |
| 1 | 415129604 | Calibration Ass'y | 1 |
| 1 | 250000981 | Socket Screw M5 X 25 | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 232551414 | Elastic Stop Nut M5 | 1 |
| 1 | 417127155 | Washer | 1 |
| 1 | 504152574 | Ball Bearing | 1 |
| 1 | 417300571 | Drive Belt | 1 |
| 1 | 417300479 | Belt Guard | 1 |
| 1 | 417300561 | Front Retaining Hook | 1 |
| 3 | 390909200 | Avex Rivet | 3 |
| 1 | 417300553 | CVT Duct Cooling | 1 |
| 1 | 414575600 | Hair Pin | 1 |
| 1 | 417300542 | Acoustic Panel | 1 |
| 5 | 293150103 | Pop Rivet 3/16" | 5 |
| 3 | 414644300 | Black, Dart | 3 |
| 1 | 417300514 | Support Guard | 1 |
| 1 | 233261466 | Hex. Flange Elastic Nut M6 | 1 |
| 1 | 250000755 | Torx Screw M6 X 16 | 1 |
| 1 | 114045200 | Hair Pin | 1 |
