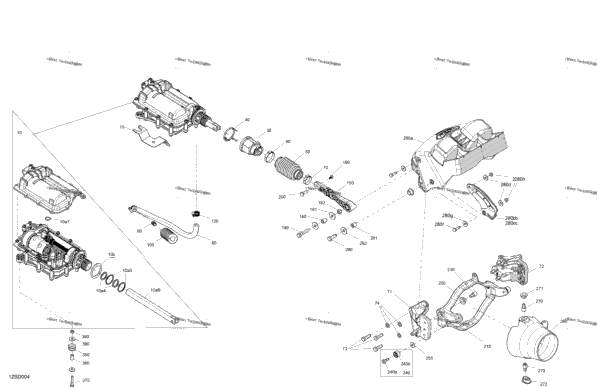

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 278004394 | Actuator Reverse Ass'y Includes 10 to 10c | 1 |
| 2 | 279000108 | O-Ring | 2 |
| 2 | 293300107 | O-Ring | 2 |
| 1 | 293300187 | O-Ring | 1 |
| 1 | 278003027 | Output Shaft | 1 |
| 1 | 268000208 | Gasket | 1 |
| 1 | 268000210 | Actuator Support | 1 |
| 1 | 268000308 | IBR Nut | 1 |
| 1 | 277001977 | Rubber Gasket | 1 |
| 1 | 268000186 | Boot | 1 |
| 1 | 509000529 | Oetiker Gear Clamp, 36.5-706R | 1 |
| 1 | 293650099 | Crimp Clamp | 1 |
| 1 | 268000163 | LH Reverse Support Includes 71 to 71a1 | 1 |
| 1 | 268000166 | RH Reverse Support Includes 72 to 72a1 | 1 |
| 6 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 6 |
| 6 | 234080600 | Flat Washer M8, Stainless | 6 |
| 1 | 219704420 | Was 509000407 Hose 8 mm | 1 |
| 1 | 293710157 | Fitting-Straig | 1 |
| 1 | 268000211 | Inner Boot | 1 |
| 2 | 293650285 | Clamp Gear | 2 |
| 1 | 271001039 | Spacer | 1 |
| 1 | 268000187 | Reverse Rod | 1 |
| 1 | 207084560 | Hex. Screw M8 X 45 | 1 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 1 | 232581200 | Hex. Elastic Nut M8 Brass | 1 |
| 1 | 250000565 | Hexalob Screw M4 X 10 | 1 |
| 1 | 268000309 | Shoulder Pin | 1 |
| 1 | 268000179 | Trimming Ring Includes 210 to 210a1 | 1 |
| 2 | 293900007 | Venturi Bushing | 2 |
| 2 | 268000141 | Socket Head Screw M8 X 13 | 2 |
| 2 | 295501160 | Roller Bushing Kit Includes 240 to 240b | 2 |
| 1 | 250000775 | Screw-Socket Shoulder M8X8 | 1 |
| 1 | 295501160 | Roller Bushing Kit | 1 |
| 2 | 250000775 | Screw-Socket Shoulder M8X8 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 267000705 | Nozzle Includes 260 to 260a1 | 1 |
| 1 | 293900007 | Venturi Bushing | 1 |
| 1 | 293900010 | Plastic Bushing | 1 |
| 1 | 268000325 | Reverse Gate | 1 |
| 295501169 | Kit Trim Ramp Includes 280b to 280b | ||
| 295501169 | Kit Trim Ramp Includes 280c to 280c | ||
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 4 | 207362060 | Hex. Screw M6 X 20, Scotch Grip | 4 |
| 4 | 232561200 | Elastic Stop Nut M6, Brass | 4 |
| 2 | 271001039 | Spacer | 2 |
| 2 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 2 |
| 1 | 293720104 | Grommet | 1 |
| 1 | 271001020 | Spacer | 1 |
| 1 | 207063560 | Hex. Screw M6 X 35 | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
