Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

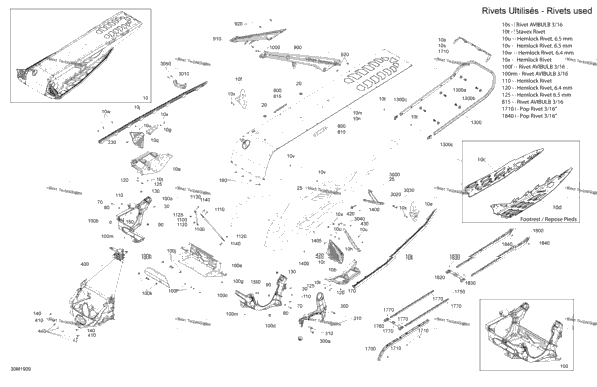

| 415130245 | TEAL MODULE CHASSIS TUNNEL 137 INCH Includes 10 to 10x | ||
| 1 | 518330680 | Deep Black, RH Footrest Reinforcement | 1 |
| 1 | 518330679 | Deep Black, LH Footrest Reinforcement | 1 |
| 1 | 518329619 | RH Footrest | 1 |
| 1 | 518329620 | LH Footrest | 1 |
| 1 | 518329625 | RH Suspension Bracket | 1 |
| 1 | 518329626 | LH Suspension Bracket | 1 |
| 1 | 518330072 | RH Footrest Reinforcement | 1 |
| 1 | 518329049 | LH Footrest Reinforcement | 1 |
| 1 | 518329023 | RH Roller | 1 |
| 1 | 518329024 | LH Roller | 1 |
| 1 | 415130269 | Kit Radiator Tunnel 137" Includes 10m to 10n | 1 |
| 2 | 250300027 | Clinch Stud M6 X 20 | 2 |
| 1 | 518328990 | Rear Cap | 1 |
| 1 | 518328460 | RH Footrest | 1 |
| 1 | 518328463 | LH Footrest | 1 |
| 1 | 293150203 | Rivet AVIBULB 3/16 | 1 |
| 4 | 293150144 | Stavex Rivet | 4 |
| 4 | 293150096 | Hemlock Rivet, 6.5 mm | 4 |
| 8 | 293150119 | Hemlock Rivet, 6.5 mm | 8 |
| 14 | 293150174 | Hemlock Rivet, 6.4 mm | 14 |
| 16 | 293150147 | Hemlock Rivet | 16 |
| 2 | 293730052 | Black, Plug | 2 |
| 4 | 250100199 | Insert Half Hex Body M6 x 1.0 | 4 |
| 2 | 506151252 | Washer | 2 |
| 2 | 250000942 | Hex Screw M8 X 30 | 2 |
| 2 | 234081410 | Flat Washer 8 mm | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 1 | 518330635 | Engine Chassis Module Ass'y Includes 100 to 100m | 1 |
| 1 | 518330554 | RH Side Member Ass'y Includes 100a to 100b | 1 |
| 1 | 505073317 | Leg Cushion | 1 |
| 1 | 518330557 | LH Side Member Ass'y Includes 100c to 100d | 1 |
| 1 | 518330074 | Bottom Plate | 1 |
| 14 | 293150203 | Rivet AVIBULB 3/16 | 14 |
| 1 | 293450268 | Insert M5 X 0.8 | 1 |
| 1 | 518330100 | Front Member | 1 |
| 4 | 207662046 | Hex. Flange Screw M6 X 20 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 2 | 293150203 | Rivet AVIBULB 3/16 | 2 |
| 3 | 293150147 | Hemlock Rivet | 3 |
| 2 | 293150174 | Hemlock Rivet, 6.4 mm | 2 |
| 2 | 293150120 | Hemlock Rivet 6.5 mm | 2 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 1 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 1 |
| 1 | 518328693 | Brace Ass'y Includes 300 to 300a | 1 |
| 1 | 512060295 | Rubber Mount | 1 |
| 4 | 250001060 | Screw-Pan HD.Torx M8X30 | 4 |
| 1 | 518330573 | S Module | 1 |
| 2 | 250001051 | Screw-Forming Hex.HD.FL. M6 X 16 | 2 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 6 | 207661646 | Hex. Flange Screw M6 X 16 | 6 |
| 2 | 518329480 | Member Fixation Plate North America | 2 |
| 1 | 518330299 | LH Member Fixation Plate Europe | 1 |
| 1 | 518330300 | RH Member Fixation Plate Europe | 1 |
| 4 | 293150203 | Rivet AVIBULB 3/16 | 4 |
| 1 | 518330878 | Blue, LH Member | 1 |
| 518330882 | Blue, RH Member | ||
| 4 | 250000887 | Pan Head Torx Screw M8 X 12 | 4 |
| 2 | 250300629 | Stud M5 X 20 | 2 |
| 2 | 518329974 | Upper Colomn Support | 2 |
| 1 | 233261416 | Elastic Flange Nut M6 X 1.0 | 1 |
| 1 | 207662544 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 518328746 | Rear Bumper Includes 1300 to 1300c | 1 |
| 2 | 520001612 | Cap | 2 |
| 10 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip | 10 |
| 10 | 224061201 | Flat Washer | 10 |
| 3 | 293730047 | Black, Dart 8 mm | 3 |
| 2 | 293730060 | Black, Dart 10 mm | 2 |
| 1 | 518329982 | Front Protector | 1 |
| 3 | 293150108 | Pop Rivet 3/16” | 3 |
| 2 | 518329980 | Rear Protector TR15X137X1.6IC | 2 |
| 1 | 518329981 | Front Support Protector TR15X137X1.6IC | 1 |
| 5 | 250000577 | Torx Truss Screw K40 X 12 TR15X137X1.6IC | 5 |
| 2 | 518329979 | Rear Protector TR15X137X1.6IC | 2 |
| 1 | 520001545 | Support TR15X137X1.6IC | 1 |
| 2 | 250000577 | Torx Truss Screw K40 X 12 TR15X137X1.6IC | 2 |
| 2 | 293150108 | Pop Rivet 3/16” TR15X137X1.6IC | 2 |
| 1 | 518330358 | Black Toe-hold | 1 |
| 1 | 518329134 | Toe Hold | 1 |
| 1 | 250000793 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 1 |
| 2 | 293730079 | Dart | 2 |
| 2 | 210262550 | Hex. Flange Forming Screw M6 X 25 | 2 |
