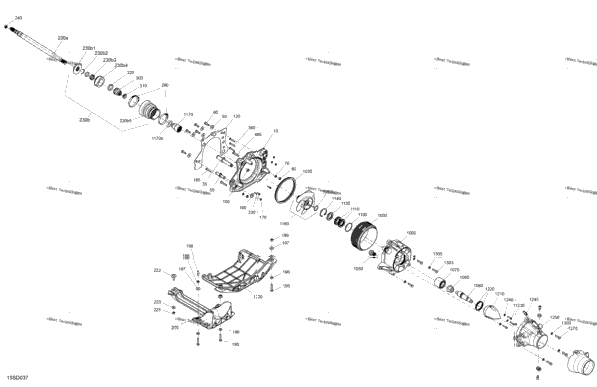

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 271001956 | Anodized Pump Support | 1 |
| 1 | 271002377 | Through Hull Fitting | 1 |
| 5 | 279000336 | Flat Washer | 5 |
| 5 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 5 |
| 2 | 250000230 | Hex. Screw M8 X 40, Scotch Grip | 2 |
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 1 | 271002378 | Through Hull Fitting | 1 |
| 1 | 293300006 | O-Ring | 1 |
| 1 | 271001840 | Riding Plate | 1 |
| 1 | 271001958 | Gasket | 1 |
| 1 | 271001920 | Anode Zinc | 1 |
| 1 | 207363560 | Screw Hex. M6 X 35, Scotch Grip | 1 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 2 | 207184060 | Hex. Screw M8 X 40 | 2 |
| 4 | 293050001 | Flat Washer M8.5 x 18 | 4 |
| 4 | 279000336 | Flat Washer | 4 |
| 1 | 293000105 | Cap Plug | 1 |
| 4 | 232581200 | Hex. Elastic Nut M8 Brass | 4 |
| 1 | 271002011 | Pump Grate | 1 |
| 1 | 250000967 | Hex Sems Screw M8 X 30 | 1 |
| 1 | 293050001 | Flat Washer M8.5 x 18 | 1 |
| 1 | 232581200 | Hex. Elastic Nut M8 Brass | 1 |
| 1 | 271002205 | Propeller Shaft | 1 |
| 1 | 295501209 | Carbon Ring Kit Includes 230b to 230b5 | 1 |
| 271002206 | Rotary Ring | ||
| 1 | 271001575 | C-Clip | 1 |
| 2 | 293300219 | O-Ring | 2 |
| 271002109 | Carbon Ring | ||
| 1 | 271002168 | Bellow Ass'y | 1 |
| 1 | 271002113 | Drive Shaft Plug | 1 |
| 2 | 293650179 | Tridon Clamp | 2 |
| 1 | 271002126 | Protector Sleeve | 1 |
| 1 | 509000442 | Oeticker Gear Clamp, 25.6-706R | 1 |
| 1 | 509000529 | Oetiker Gear Clamp, 36.5-706R | 1 |
| 2 | 211000023 | Hex. Screw 10-14 X 7/8” | 2 |
| 2 | 207363560 | Screw Hex. M6 X 35, Scotch Grip | 2 |
| 1 | 267000856 | Impeller Housing | 1 |
| 1 | 267000925 | Wear Ring | 1 |
| 1 | 293200134 | Neoprene Seal | 1 |
| 1 | 267000282 | Plug | 1 |
| 1 | 267000581 | Impeller Shaft | 1 |
| 1 | 271002183 | Angle Bearing | 1 |
| 1 | 250100104 | Elastic Flange Nut M20 | 1 |
| 1 | 293300090 | O-Ring | 1 |
| 2 | 271002071 | Seal | 2 |
| 1 | 293200089 | Oil Seal | 1 |
| 1 | 293370038 | Circlip | 1 |
| 1 | 267001070 | Impeller Ass'y | 1 |
| 1 | 293300044 | O-Ring | 1 |
| 1 | 267000829 | Boot Impeller Includes 1170 to 1170b | 1 |
| 1 | 267000829 | Boot Impeller | 1 |
| 1 | 267000769 | Impeller Cover | 1 |
| 2 | 293300096 | O-Ring | 2 |
| 3 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip | 3 |
| 3 | 234061600 | Stainless, Flat Washer M6 | 3 |
| 1 | 267000782 | Siphon Tube | 1 |
| 1 | 267000909 | Venturi | 1 |
| 3 | 250000526 | Hex. Screw M8 X 30, Scotch Grip | 3 |
| 3 | 234080600 | Flat Washer M8, Stainless | 3 |
