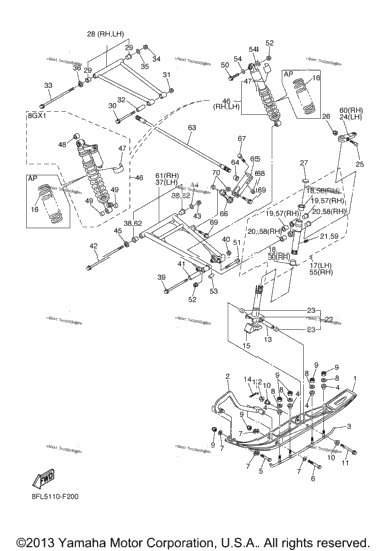

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 8ES-F3711-00-00 | Ski 1 | ||
| 8EK-F3712-00-00 | Reinforcement, Head RSG90W (8FL5) | ||
| 8DM-F3712-00-00 | Reinforcement, Head RSG90GTW (8GX1) | ||
| 8EK-F3731-00-00 | Runner 1 | ||
| 8 | 8EK-F3751-00-00 | Bush, Ski 1 | 8 |
| 2 | 9702M-08055-00 | Bolt | 2 |
| 2 | 9702M-08100-00 | Bolt | 2 |
| 8 | 90201-08784-00 | Washer, Plate | 8 |
| 8 | 90201-086P8-00 | Washer, Plate | 8 |
| 12 | 9570M-08300-00 | Nut, Nylon | 12 |
| 8EX-F3754-00-00 | Collar, 1 | ||
| 2 | 90105-10070-00 | Bolt, Flange | 2 |
| 2 | 95607-10200-00 | Nut, U Flange | 2 |
| 2 | 90387-1012H-00 | Collar | 2 |
| 2 | 91401-20020-00 | Pin, Cotter | 2 |
| 2 | 8CR-23743-10-00 | Stopper 1 | 2 |
| 1 | 8FA-23760-00-00 | Spring Assy 1 (K=21N/Mm) AP | 1 |
| 1 | 8FA-23760-10-00 | Spring Assy 1 (K=19N/Mm) AP | 1 |
| 1 | 8FA-23760-20-00 | Spring Assy 1 (K=17N/Mm) AP | 1 |
| 1 | 8ES-23760-00-00 | Spring Assy 1 (K=24.5N/Mm) AP | 1 |
| 1 | 8ES-23760-10-00 | Spring Assy 1 (K=20.6N/Mm) AP | 1 |
| 8ES-23501-00-00 | Steering Knuckle Assy (Left) RSG90W (8FL5) | ||
| 1 | 8ES-23501-10-00 | Steering Knuckle Assy (Left) RSG90GTW (8GX1) | 1 |
| 2 | 90381-25115-00 | . .Bush, Solid | 2 |
| 2 | 90381-15N50-00 | . .Bush, Solid | 2 |
| 2 | 90381-18N51-00 | . .Bush, Solid | 2 |
| 1 | 93700-06004-00 | . Nipple, Grease | 1 |
| 2 | 8ES-23803-00-00 | Column, Ski Assy | 2 |
| 2 | 90384-16N51-00 | . .Bush, Bimetal Formed | 2 |
| 1 | 8FA-23851-00-00 | Arm, Outside 1 | 1 |
| 2 | 90110-08N53-00 | Bolt, Hexagon Socket Head | 2 |
| 2 | 95607-08200-00 | Nut, Self-Locking | 2 |
| 2 | 3YK-22472-40-00 | Cap, Case | 2 |
| 8ES-23540-30-00 | Front Upper Arm Comp RSG90W (8FL5) | ||
| 2 | 8ES-23540-20-00 | Front Upper Arm Comp RSG90GTW (8GX1) | 2 |
| 2 | 90105-10N51-00 | Bolt, Flange | 2 |
| 2 | 90387-10N58-00 | Collar | 2 |
| 2 | 90105-10N54-00 | Bolt, Flange | 2 |
| 2 | 90201-106F2-00 | Washer, Plate | 2 |
| 4 | 90209-15N50-00 | Washer | 4 |
| 1 | 8ES-23570-30-00 | Front Lower Arm Comp. (Left) RSG90W (8FL5) | 1 |
| 1 | 8ES-23570-20-00 | Front Lower Arm Comp. (Left) RSG90GTW (8GX1) | 1 |
| 2 | 90381-16N51-00 | . .Bush, Solid | 2 |
| 2 | 90105-12N54-00 | Bolt, Flange | 2 |
| 2 | 95607-12200-00 | Nut, Self-Locking | 2 |
| 2 | 90387-12N54-00 | Collar | 2 |
| 2 | 90105-10N55-00 | Bolt, Flange | 2 |
| 2 | 8GG-2376A-00-00 | Absorber Assy 1 RSG90GTW (8GX1) | 2 |
| 2 | 8ES-2376A-C0-00 | Absorber Assy 1 RSG90W (8FL5) | 2 |
| 1 | 4AA-22259-60-00 | . .Label, Warning RSG90GTW (8GX1) | 1 |
| 1 | 4AA-22259-70-00 | . .Label, Warning RSG90W (8FL5) | 1 |
| 1 | 8FA-2331R-00-00 | . .Damper, Bush B | 1 |
| 2 | 90384-15N51-00 | . .Bush, Bimetal Formed | 2 |
| 2 | 90105-10232-00 | Bolt, Flange | 2 |
| 2 | 90105-10392-00 | Bolt, Flange | 2 |
| 4 | 95607-10200-00 | Nut, U Flange | 4 |
| 2 | 90387-10N59-00 | Collar | 2 |
| 4 | 90201-106F2-00 | Washer, Plate | 4 |
| 8ES-23502-00-00 | Steering Knuckle Assy (Right) RSG90W (8FL5) | ||
| 1 | 8ES-23502-10-00 | Steering Knuckle Assy (Right) RSG90GTW (8GX1) | 1 |
| 1 | 8FA-23852-00-00 | Arm, Outside 2 | 1 |
| 1 | 8ES-23580-30-00 | Front Lower Arm Comp. (Right) RSG90W (8FL5) | 1 |
| 1 | 8ES-23580-20-00 | Front Lower Arm Comp. (Right) RSG90GTW (8GX1) | 1 |
| 1 | 8FG-2386E-00-00 | Bar, Stabilizer Front | 1 |
| 2 | 8FG-2386G-00-00 | Bush, Stabilizer Front | 2 |
| 2 | 8FG-2386L-00-00 | Arm, Stabilizer | 2 |
| 2 | 8ES-2385L-00-00 | Joint, Stabilizer 1 | 2 |
| 2 | 90101-06765-00 | Bolt | 2 |
| 2 | 95604-06200-00 | .Nut, U Flange | 2 |
| 4 | 95814-08030-00 | Bolt, Flange | 4 |
| 4 | 95604-08200-00 | Nut, U Flange | 4 |
