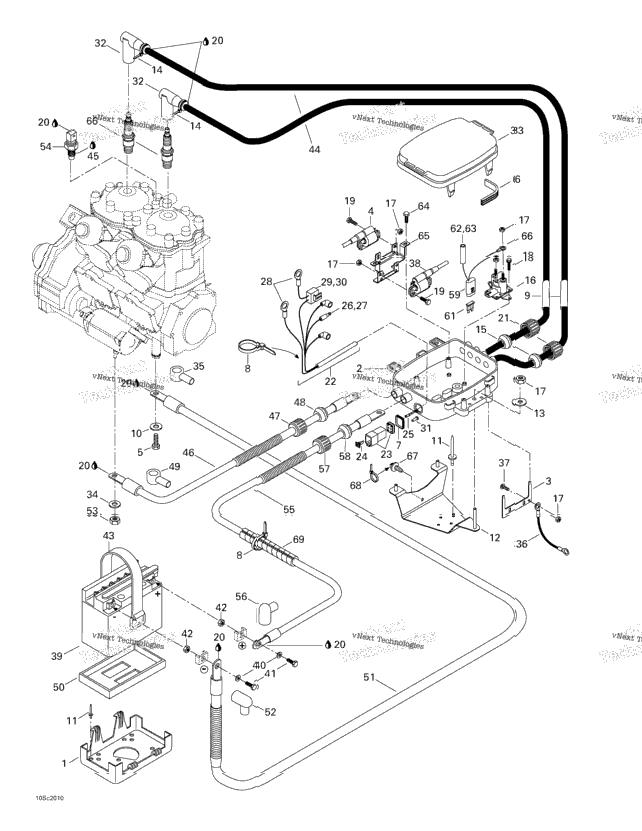

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001430 | Battery Support | ||
| 278001425 | ELECTRIC BOX BASE | ||
| 278000732 | Ground Plate | ||
| 278001416 | Ignition Coil (MAG) | ||
| 1 | 207302060 | Hex. Screw M10 X 20, Scotch Grip | 1 |
| 278001173 | GASKET | ||
| 293200030 | Gasket | ||
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 219704412 | Polyurethane Hose 8 MM 3000MM Long | 1 |
| 1 | 234001600 | Flat Washer 10 mm, Stainless | 1 |
| 7 | 293150011 | Pop Rivet 3/16" | 7 |
| 278001426 | Electric Box Support Ass'y | ||
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 278000682 | Grommet | ||
| 1 | 278001376 | Starter Relay | 1 |
| 10 | 232561600 | Hex. Elastic Stop Nut M6 | 10 |
| 2 | 210261040 | Hex. Flange Screw M6 X 10 | 2 |
| 4 | 207162060 | Hex. Forming Screw M6 X 20 | 4 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 278000100 | Electric Wire Cap | ||
| 1 | 278001423 | REAR ELECTRIC BOX HARNESS Includes 22 - 31. | 1 |
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 5 | 278000631 | Male Terminal | 5 |
| 1 | 278000230 | Male Terminal | 1 |
| 1 | 278001008 | Insulated Sheath | 1 |
| 2 | 278000992 | Open Barrel | 2 |
| 1 | 278001113 | Male Connector, 2 Circuits | 1 |
| 2 | 278001114 | Female Terminal | 2 |
| 1 | 293000052 | Sealing Cap | 1 |
| 2 | 278000237 | Spark Plug Cap | 2 |
| 1 | 278001433 | ELECTRIC BOX COVER | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 278000020 | PROTECTION CAP | 1 |
| 278001501 | Ground Wire | ||
| 1 | 205461060 | Socket Head Screw M6 X 10 | 1 |
| 278001414 | COIL-IGNITION | ||
| 1 | 278000712 | Battery | 1 |
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 211000045 | Battery Screw | 2 |
| 2 | 211100022 | Battery Nut M6 | 2 |
| 2 | 293850021 | Rubber Strap | 2 |
| 1 | 278001268 | Spark Plug Wire | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 278001437 | STARTER RED CABLE Includes 46 - 49. | 1 |
| 278000098 | GROMMET | ||
| 278001234 | Battery Lower Pad | ||
| 278001439 | Battery Ground Cable Includes 51 - 52. | ||
| 278001491 | Wire Cap (Black) | ||
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 278001016 | Temperature Sensor | 1 |
| 1 | 204470286 | POSITIVE CABLE ASS'Y Includes 55 - 58. | 1 |
| 1 | 204470269 | RED BOOT | 1 |
| 278001212 | Fuse Harness (15 Amperes) Includes 59 - 63. | ||
| 278000300 | Ring Terminal | ||
| 1 | 278000343 | Fuse, 15 Amperes | 1 |
| 1 | 278001009 | Female Terminal | 1 |
| 1 | 278001007 | Insulated Sheath | 1 |
| 209561640 | Hex. Screw M6 X 16 | ||
| 278001421 | Ignition Coil Support | ||
| 2 | 278000609 | Spark Plug, NGK BR8-ES | 2 |
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 204050326 | SPLIT LOOM 3/8, METER | 1 |
