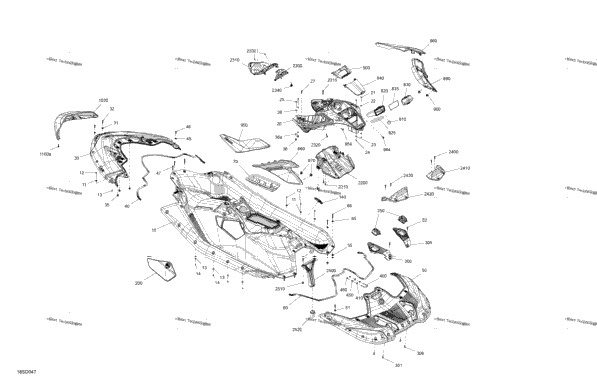

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 291005936 | Deep Black, Central Deck | 1 |
| 12 | 291006387 | Oval Washer | 12 |
| 12 | 250000827 | Screw-Torx Truss Cone HD.M6X50 | 12 |
| 12 | 234062600 | Flat Washer M6, Stainless | 12 |
| 12 | 232561200 | Elastic Stop Nut M6, Brass | 12 |
| 1 | 291005937 | Deep Black, Console | 1 |
| 2 | 250000827 | Screw-Torx Truss Cone HD.M6X50 | 2 |
| 2 | 250200150 | Flat Washer M6, Stainless | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 232561200 | Elastic Stop Nut M6, Brass | 2 |
| 4 | 250000827 | Screw-Torx Truss Cone HD.M6X50 | 4 |
| 4 | 250200150 | Flat Washer M6, Stainless | 4 |
| 2 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 | 2 |
| 1 | 291006136 | Vapor Blue, Front Deck | 1 |
| 8 | 291006387 | Oval Washer | 8 |
| 8 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 | 8 |
| 5 | 291003793 | Insert | 5 |
| 4 | 269502544 | Nut Housing M6 Includes 36 to 36a | 4 |
| 1 | 232561200 | Elastic Stop Nut M6, Brass | 1 |
| 1 | 293250608 | Gasket | 1 |
| 5 | 291006387 | Oval Washer | 5 |
| 3 | 250001283 | Screw-Plastite Torx Cone M6.81X50 | 3 |
| 1 | 291006139 | Deck Rear Vapor Blue, | 1 |
| 18 | 291006387 | Oval Washer | 18 |
| 18 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 | 18 |
| 4 | 291003793 | Insert | 4 |
| 1 | 293250609 | Gasket | 1 |
| 6 | 291006387 | Oval Washer | 6 |
| 4 | 250001283 | Screw-Plastite Torx Cone M6.81X50 | 4 |
| 2 | 250001283 | Screw-Plastite Torx Cone M6.81X50 | 2 |
| 1 | 291006167 | Upper Access Cover Ass'y | 1 |
| 1 | 291006039 | RH Rear Access Cover Ass'y | 1 |
| 1 | 291005940 | LH Front Access Cover Ass'y | 1 |
| 2 | 295100858 | LinQ Bases Kit | 2 |
| 1 | 291005979 | LH LINQ Support | 1 |
| 3 | 250000978 | Hexagonal Cap Screw M6 X 25 | 3 |
| 1 | 291006029 | RH LINQ Support | 1 |
| 1 | 292000933 | U-Clamp | 1 |
| 2 | 293050001 | Flat Washer M8.5 x 18 | 2 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 1 | 291006007 | Deep Black, Console Panel | 1 |
| 1 | 269502324 | USB Plug | 1 |
| 1 | 291006037 | Storage Box | 1 |
| 1 | 264000159 | Box Storage Foam | 1 |
| 1 | 291006028 | Box Cover | 1 |
| 1 | 293250605 | Gasket | 1 |
| 1 | 291006006 | Deep Black, Box Cover | 1 |
| 1 | 291006144 | Neon Yellow, LH Knee Pad | 1 |
| 2 | 705018553 | Oval Washer | 2 |
| 1 | 291006145 | Neon Yellow, RH Knee Pad | 1 |
| 1 | 291006146 | Neon Yellow, LH Body Panel | 1 |
| 1 | 250000978 | Hexagonal Cap Screw M6 X 25 | 1 |
| 1 | 291006147 | Neon Yellow, RH Body Panel | 1 |
| 1 | 291006242 | Front Bumper Kit | 1 |
| 4 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 | 4 |
| 1 | 291005957 | Under Console Trim | 1 |
| 10 | 250000879 | Plastite Torx Screw M6.81X30 | 10 |
| 1 | 269502524 | Latch | 1 |
| 1 | 269502525 | Deep Black, System Audio Support | 1 |
| 2 | 250001279 | Screw-Plastite Torx Cone Hd. M6.81X | 2 |
| 3 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 | 3 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 1 | 269502534 | Torsion Spring | 1 |
| 1 | 291006034 | RH Footrest Ass'y | 1 |
| 1 | 291006031 | LH Footrest Ass'y | 1 |
| 1 | 291006030 | Rear Support | 1 |
| 2 | 291003793 | Insert | 2 |
| 1 | 291003694 | Rear Support Mount | 1 |
