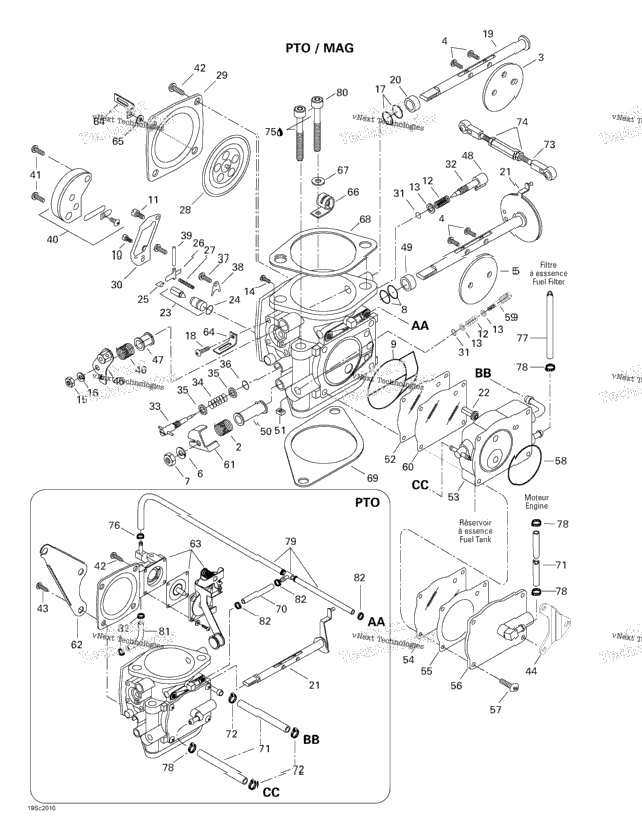

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 270500417 | Carburetor BN46i-42-12 (P.T.O Side) Includes 1 - 69. LRV PTO 5688. | ||
| 270500416 | Carburetor BN46i-42-11 (MAG Side) | ||
| 270500413 | Spring LRV PTO 5688. | ||
| 270500319 | Carburator Linkage LRV MAG 5688. | ||
| XXXX | Not Available As Spare Part - Choke Valve | ||
| 5 | 270500156 | SCREW | 5 |
| XXXX | Not Available As Spare Part - Throttle Valve | ||
| 1 | 270500011 | SPRING WASHER | 1 |
| 270500376 | Nut | ||
| 270500222 | Sealing Ring | ||
| 1 | 270500370 | O-RING | 1 |
| 270500427 | PILOT JET 75 | ||
| 270500371 | Main Jet 162.5 | ||
| 2 | 270500091 | SPRING | 2 |
| 270500136 | Washer | ||
| 270500228 | Screw | ||
| 1 | 270500229 | NUT | 1 |
| 270500230 | Spring Washer | ||
| 2 | 270500234 | SEALING RING | 2 |
| 270500358 | Screw LRV MAG 5688. | ||
| XXXX | Not Available As Spare Part - Choke Shaft Ass'y | ||
| 1 | 270500239 | RING | 1 |
| XXXX | Not Available As Spare Part - Throttle Shaft Ass'y (PTO) LRV PTO 5688. | ||
| XXXX | Not Available As Spare Part - Throttle Shaft Ass'y (MAG) LRV MAG 5688. | ||
| 1 | 270500115 | FUEL FILTER | 1 |
| 1 | 270500208 | Needle Valve 2.0 | 1 |
| 1 | 270500127 | O-RING | 1 |
| 1 | 270500129 | CLIP | 1 |
| 1 | 270500128 | NEEDLE VALVE LEVER | 1 |
| 270500313 | Spring | ||
| 1 | 270500132 | DIAPHRAGM ASS'Y | 1 |
| 1 | 270500133 | COVER LRV MAG 5688. | 1 |
| 1 | 270500131 | GASKET | 1 |
| 2 | 270500144 | O-RING | 2 |
| 270500113 | Adjuster Screw | ||
| 1 | 270500020 | IDLE ADJUSTING SCREW | 1 |
| 270500019 | SPRING | ||
| 270500018 | Washer | ||
| 270500119 | O-RING | ||
| 270500155 | Screw And Spring Washer | ||
| 1 | 270500125 | PLATE | 1 |
| 270500038 | Pin | ||
| 1 | 270500124 | VALVE ASS'Y | 1 |
| 2 | 270500123 | SCREW | 2 |
| 270500243 | Screw LRV MAG 5688. | ||
| 270500322 | Screw LRV PTO 5688. | ||
| 2 | 270500238 | SCREW LRV PTO 5688. | 2 |
| 270500462 | Cable Support LRV MAG 5688. | ||
| 270500431 | Choke lever | ||
| 270500382 | Spring | ||
| 270500381 | Ring | ||
| 270500154 | Cap | ||
| 270500353 | Ring LRV MAG 5688. | ||
| 270500435 | Ring LRV PTO 5688. | ||
| 270500378 | Ring | ||
| 270500249 | Nut LRV MAG 5688. | ||
| 1 | 270500369 | DIAPHRAGM LRV MAG 5688. | 1 |
| 270500410 | Body Pump Ass'y LRV MAG 5688. | ||
| 270500366 | DIAPHRAGM LRV MAG 5688. | ||
| 1 | 270500365 | GASKET LRV MAG 5688. | 1 |
| 270500405 | Pump Cover LRV PTO 5688. | ||
| 270500409 | Pump Cover LRV MAG 5688. | ||
| 270500303 | Screw LRV MAG 5688. | ||
| 270500363 | O-Ring LRV MAG 5688. | ||
| 270500288 | Adjuster Screw LRV MAG 5688. | ||
| 270500368 | DIAPHRAGM LRV MAG 5688. | ||
| 270500412 | Throttle Lever LRV PTO 5688. | ||
| 270500436 | Throttle Lever LRV MAG 5688. | ||
| 270500403 | Bracket LRV PTO 5688. | ||
| 270500433 | Diaphragm Cover LRV PTO 5688. | ||
| 270500359 | Plate LRV MAG 5688. | ||
| 270500402 | Washer LRV MAG 5688. | ||
| 293850018 | Clip LRV MAG 5688. | ||
| 1 | 234081600 | Stainless, Flat Washer 8 mm LRV MAG 5688. | 1 |
| 1 | 270500384 | GASKET | 1 |
| 293250066 | Gasket | ||
| 270500308 | Hose 90 mm | ||
| 1 | 219704396 | HOSE-6MM. 5000MM LONG | 1 |
| 4 | 293650042 | Oetiker Clamp | 4 |
| 270500319 | Carburator Linkage Includes 73 - 74. | ||
| 270500351 | Nut | ||
| 270500352 | Nut | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 293650071 | OETIKER CLAMP | 1 |
| 293500345 | Hose | ||
| 4 | 293650038 | Oetiker Clamp | 4 |
| 270500406 | Hose Ass'y | ||
| 231182060 | SOCKET HEAD SCREW M8 X 120, SCOTCHGRIP | ||
| 270500432 | Hose | ||
| 1 | 270500401 | Clip | 1 |
