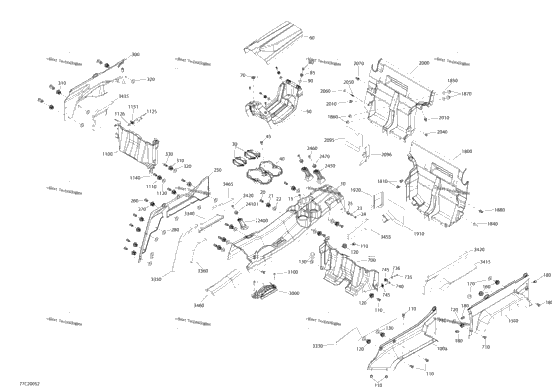

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 715005503 | Front Console Ass'y | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 8 | 293150230 | Tuflok Plastic Rivet | 8 |
| 7 | 707900133 | Insert | 7 |
| 7 | 503189273 | Washer | 7 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 1 | 250000957 | Extruded Panel Nut M6 | 1 |
| 4 | 707900036 | Cup Retainer | 4 |
| 1 | 707900100 | Cup Holder | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 707900075 | Rear Central Console | 1 |
| 1 | 707900229 | Rear Console Cover Kit North America | 1 |
| 1 | 715007085 | Rear Console Cover Kit International | 1 |
| 1 | 517303756 | Grommet | 1 |
| 5 | 293150230 | Tuflok Plastic Rivet | 5 |
| 3 | 707900133 | Insert | 3 |
| 3 | 503189273 | Washer | 3 |
| 1 | 707900001 | LH Side Console | 1 |
| 7 | 293150230 | Tuflok Plastic Rivet | 7 |
| 4 | 707900133 | Insert | 4 |
| 4 | 503189273 | Washer | 4 |
| 1 | 707900633 | Rear Left Dash | 1 |
| 2 | 707900133 | Insert | 2 |
| 2 | 503189273 | Washer | 2 |
| 4 | 293150230 | Tuflok Plastic Rivet | 4 |
| 1 | 707900002 | RH Side Console | 1 |
| 1 | 707900080 | RH Rear Console Panel | 1 |
| 1 | 707900082 | LH Rear Upper Floor Cover | 1 |
| 1 | 707900133 | Insert | 1 |
| 1 | 503189273 | Washer | 1 |
| 1 | 250000758 | Torx Screw M6 X 25 | 1 |
| 2 | 250000957 | Extruded Panel Nut M6 | 2 |
| 1 | 707900083 | Seat Cover | 1 |
| 2 | 250000722 | Torx Screw M6 X 20 | 2 |
| 3 | 250000957 | Extruded Panel Nut M6 | 3 |
| 1 | 707900220 | DEFLECTOR_BODY PANEL REAR L | 1 |
| 2 | 293150230 | Tuflok Plastic Rivet | 2 |
| 1 | 250000720 | Torx Screw K50 X 16 | 1 |
| 2 | 250200040 | Flat Washer | 2 |
| 2 | 250000712 | Torx Screw M6 X 20 | 2 |
| 2 | 233261494 | Hex. Elastic Flange Nut M6 | 2 |
| 1 | 707900182 | Heat Shield | 1 |
| 1 | 707900183 | Heat Shield | 1 |
| 1 | 707900219 | DEFLECTOR_BODY PANEL REAR R | 1 |
| 1 | 250000760 | Torx Screw Truss Head K50X20 T20 | 1 |
| 1 | 707900167 | Heat Shield | 1 |
| 1 | 707900184 | Heat Shield | 1 |
| 1 | 707900011 | Passenger Handle | 1 |
| 1 | 707900048 | Connector Tube | 1 |
| 2 | 707900103 | Handle | 2 |
| 2 | 707900048 | Connector Tube | 2 |
| 1 | 707900088 | Shift Lever Indicator | 1 |
| 2 | 250000728 | Torx Screw M6 X 25 | 2 |
| 1 | 707900621 | LH Lower Lateral Console Foam | 1 |
| 1 | 707900622 | RH Lateral Console Foam | 1 |
| 1 | 707900623 | RH Lateral Console Foam | 1 |
| 1 | 707900624 | RH Lateral Console Foam | 1 |
| 1 | 707900625 | LH Rear Lateral Foam | 1 |
| 1 | 707900626 | LH Rear Lateral Foam | 1 |
| 1 | 707900627 | RH Rear Lateral Foam | 1 |
| 1 | 707900628 | Front Central Foam | 1 |
| 1 | 707900629 | Front Central Foam | 1 |
| 1 | 707900630 | Front Central Foam | 1 |
| 14 | 250000742 | Torx Screw M5 X 14 | 14 |
| 4 | 250200040 | Flat Washer | 4 |
| 2 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 | 2 |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
