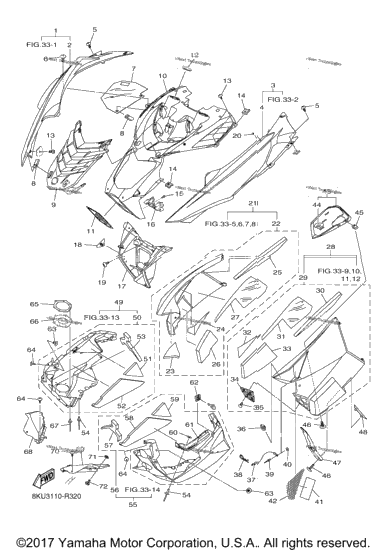

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 8JP-F198A-60-00 | Hood Assy 4 UR FOR YB | 1 |
| 8JP-F198A-70-00 | Hood Assy 4 UR FOR VRC1 | ||
| 0 | 8JP-K7122-00-00 | . . .Hood 2 UR FOR VRC1 | 0 |
| 1 | 8JP-K7122-00-00 | . . .Hood 2 UR FOR YB | 1 |
| 8JP-F197A-60-00 | Hood Assy 3 UR FOR YB | ||
| 8JP-F197A-70-00 | Hood Assy 3 UR FOR VRC1 | ||
| 8JP-K7121-00-00 | . . .Hood 1 UR FOR VRC1 | ||
| 8JP-K7121-00-00 | . . .Hood 1 UR FOR YB | ||
| 6 | 8JP-RA290-00-00 | Screw, 10-12X3/4 | 6 |
| 2 | 8JP-RA288-00-00 | Screw, 10-12X1.00 | 2 |
| 1 | 8JP-F199H-00-00 | Shield, Heat | 1 |
| 4 | 8JP-RA351-00-00 | Nut, Clip 10 | 4 |
| 1 | 8JP-F837L-00-00 | Panel, Console 1 | 1 |
| 8JP-K7111-00-00 | Shroud | ||
| 1 | 8JP-K815R-00-00 | Grill, Front | 1 |
| 2 | 8JP-H2371-00-00 | Cap, Plug | 2 |
| 4 | 8JM-RA208-00-00 | Screw, 10-12X1/2 | 4 |
| 4 | 8JP-RA352-00-00 | ..Nut, Clip 10 | 4 |
| 2 | 8JP-RA2A2-00-00 | Screw, 13 | 2 |
| 1 | 8JP-F194X-00-00 | Bracket 1 | 1 |
| 1 | 8JP-R1311-01-00 | Duct, Intake | 1 |
| 2 | 8JP-H5133-00-00 | Tape, Reflector | 2 |
| 4 | 8JM-RA201-00-00 | Screw, Tapping 10-12X5/8 | 4 |
| 2 | 8KG-RA506-00-00 | Rivet, 1 | 2 |
| 1 | 8JP-K810G-30-00 | Side Panel Comp. (R.H) UR FOR YB | 1 |
| 8JP-K810G-40-00 | Side Panel Comp.( R.H) UR FOR VRC1 | ||
| 1 | 8JP-K8140-00-00 | . . Shell Side Panel Assy 2 UR FOR YB | 1 |
| 8JW-K8140-10-00 | . . Shell Side Panel Assy 2 UR FOR VRC1 | ||
| 1 | 8JP-K7277-00-00 | . . ..Damper, Noise 17 | 1 |
| 1 | 8JP-K7551-00-00 | . . ..Protector 1 | 1 |
| 1 | 8JP-K7279-00-00 | . . ..Damper, Noise 19 | 1 |
| 1 | 8JP-K7278-00-00 | . . ..Damper, Noise 18 | 1 |
| 1 | 8JP-K7552-00-00 | . . ..Protector 2 | 1 |
| 8JP-K810F-30-00 | Side Panel Comp. (L.H) UR FOR YB | ||
| 0 | 8JP-K810F-40-00 | Side Panel Comp. (L.H) UR FOR VRC1 | 0 |
| 8JP-K8130-00-00 | . . Shell Side Panel Assy 1 UR FOR YB | ||
| 0 | 8JW-K8130-10-00 | . . Shell Side Panel Assy 1 UR FOR VRC1 | 0 |
| 1 | 8JP-K7273-00-00 | . . ..Damper, Noise 13 | 1 |
| 1 | 8JP-K7274-00-00 | . . ..Damper, Noise 14 | 1 |
| 1 | 8JP-K7275-00-00 | . . ..Damper, Noise 15 | 1 |
| 1 | 8JP-K7276-00-00 | . . ..Damper, Noise 16 | 1 |
| 1 | 8JP-F6234-00-00 | . . ..Screen | 1 |
| 8 | 8JP-RA510-00-00 | . . ..Rivet, 1 | 8 |
| 1 | 8JP-RA353-00-00 | Nut, Clip M5 | 1 |
| 2 | 8JP-F1654-00-00 | Wire | 2 |
| 2 | 8JP-RAC14-00-00 | Clip, 5 | 2 |
| 2 | 8JP-RA515-00-00 | Rivet, 6 | 2 |
| 2 | 8JP-RA451-00-00 | Washer, 8X0.375X0.049 | 2 |
| 1 | 8JM-F199H-00-00 | Shield, Heat | 1 |
| 1 | 8JR-K717J-00-00 | Tape, 5 | 1 |
| 1 | 8JP-K7194-00-00 | Duct | 1 |
| 1 | 8JP-K7553-00-00 | . .Protector 3 | 1 |
| 2 | 8JP-RA351-00-00 | Nut, Clip 10 | 2 |
| 8JP-F4131-00-00 | Deflector 1 | ||
| 1 | 8JP-F4132-00-00 | Deflector 2 | 1 |
| 8JP-F1983-20-00 | Hood 2 UR FOR YB | ||
| 8JP-F1983-30-00 | Hood 2 UR FOR VRC1 | ||
| 0 | 8JP-F198H-00-00 | . . .Hood 4 UR FOR VRC1 | 0 |
| 1 | 8JP-F198H-00-00 | . . .Hood 4 UR FOR YB | 1 |
| 1 | 8JP-K7554-00-00 | . . ..Protector 4 | 1 |
| 8JP-K7555-00-00 | . . ..Protector 5 | ||
| 1 | 8JP-K7556-00-00 | . . ..Protector 6 | 1 |
| 21 | 8JP-RA523-00-00 | Rivet, 14 | 21 |
| 1 | 8JP-F1982-20-00 | Hood 1 UR FOR YB | 1 |
| 0 | 8JP-F1982-30-00 | Hood 1 UR FOR VRC1 | 0 |
| 0 | 8JP-F197H-00-00 | . . Hood 3 UR FOR VRC1 | 0 |
| 1 | 8JP-F197H-00-00 | . . Hood 3 UR FOR YB | 1 |
| 1 | 8JP-K811V-00-00 | . . ..Protector 1 | 1 |
| 1 | 8JP-K811W-00-00 | . . ..Protector 2 | 1 |
| 1 | 8JP-K811X-00-00 | . . ..Protector 3 | 1 |
| 3 | 8JM-RA411-00-00 | . . ..Washer, Plain 0.194 | 3 |
| 1 | 8JP-K8121-00-00 | . . ..Reinforcement 1 | 1 |
| 2 | 8JP-RA350-00-00 | Nut, Clip 1/4 | 2 |
| 2 | 8JP-RA513-00-00 | Rivet, 4 | 2 |
| 6 | 8JM-RA201-00-00 | Screw, Tapping 10-12X5/8 | 6 |
| 1 | 8JP-K8181-00-00 | Plate 1 | 1 |
| 1 | 8JP-G1138-00-00 | Seal, Ext. 1 | 1 |
| 6 | 8JP-RA533-00-00 | Rivet, 21 | 6 |
| 1 | 8JP-F1962-00-00 | Patch 2 | 1 |
| 1 | 8JP-F1961-00-00 | Patch 1 | 1 |
| 2 | 8JP-RA290-00-00 | Screw, 10-12X3/4 | 2 |
| 1 | 8JP-RA348-00-00 | Nut, 3/16 | 1 |
| 1 | 8JP-RA243-00-00 | Screw, M5x0.8X20 | 1 |
