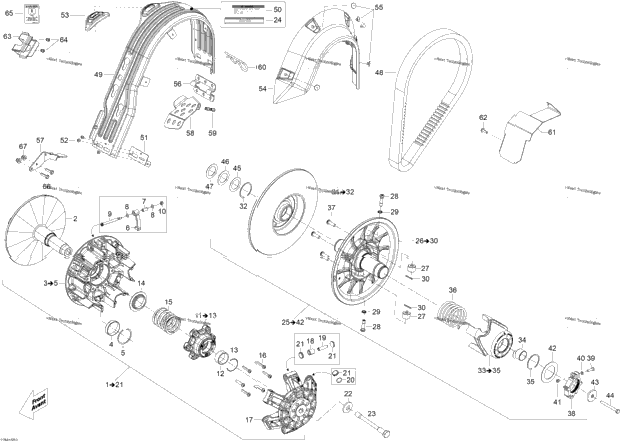

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Drive Pulley Ass'y Includes 1 To 21 | ||
| 1 | 417223867 | Fixe Flange Ass'y | 1 |
| 1 | 417223763 | Slider Flange Ass'y Includes 3 To 5 | 1 |
| 1 | 417222758 | Bushing | 1 |
| 1 | 293370037 | Circlip | 1 |
| 6 | 417223679 | Rampe 735 | 6 |
| XXX | Not Available As Spare Parts Included In Ramp Kit | ||
| 12 | 417223660 | Stopper Washer | 12 |
| 6 | 417223694 | Ramp Axle | 6 |
| 6 | 232551414 | Elastic Stop Nut M5 | 6 |
| 1 | 417223650 | Spring Cover Ass'y Includes 11 To 13 | 1 |
| XXXX | Not Available As Spare Part - Bushing | ||
| 1 | 293370065 | Circlip | 1 |
| 1 | 417223752 | Seat Spring | 1 |
| 1 | 417223751 | Clutch Spring, Yellow/Red | 1 |
| 6 | 250000580 | Torx Screw M6 X 30 | 6 |
| 1 | 417223865 | Governor Cup Ass'y | 1 |
| 6 | 417223767 | Roller | 6 |
| 6 | 417223257 | Roller Axle | 6 |
| 3 | 293300169 | O Ring | 3 |
| 12 | 417223919 | Slider Shoe | 12 |
| 1 | 250200144 | Conical Spring Washer M14 | 1 |
| 1 | 417300432 | Pulley Drive Bolt | 1 |
| 1 | 516005503 | Decal English | 1 |
| XXXX | Not Available As Spare Part - Driven Pulley Ass'y Includes 25 To 42 | ||
| 1 | 417127433 | Fixed Flange Ass'y includes 26 To 30 | 1 |
| 2 | 417127189 | Roller | 2 |
| 2 | 417127294 | Pivot Stud | 2 |
| 2 | 250200009 | Lock Washer 8 mm | 2 |
| 2 | 250400063 | Spring Pin M3 X 30 | 2 |
| 1 | 417127366 | Slider Flange Ass'y Includes 31 To 32 | 1 |
| 1 | 293370049 | Circlip | 1 |
| 1 | 417127412 | Cam Ass'y Includes 33 To 35 | 1 |
| 1 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L | 1 |
| 417127434 | SPRING RELEASE | ||
| 4 | 250000707 | Hex. Button Head Screw M8 X 25 | 4 |
| 1 | 415129604 | Calibration Ass'y | 1 |
| 1 | 205052544 | Socket Screw M5 X 25 | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 232551414 | Elastic Stop Nut M5 | 1 |
| 1 | 417127155 | Washer | 1 |
| 1 | 517302322 | Strength Washer | 1 |
| 1 | 207287544 | Hex. Cap Screw M8 X 75 | 1 |
| 1 | 417300252 | Spacer (Adjustment Part, Use If Needed) | 1 |
| 3 | 417300265 | Spacer (Adjustment Part, Use If Needed) | 3 |
| 1 | 504112000 | Shim (Adjustment Part, Use If Needed) | 1 |
| 1 | 417300383 | Drive Belt | 1 |
| 1 | 417300382 | Belt Guard | 1 |
| 1 | 516006900 | Security Label, Belt Guard | 1 |
| 1 | 417300380 | Reinforcement | 1 |
| 3 | 390909200 | Avex Rivet | 3 |
| 1 | 417300381 | Guide | 1 |
| 1 | 417300356 | Side Protector | 1 |
| 4 | 293150103 | Pop Rivet 3/16" | 4 |
| 1 | 417300413 | Belt Guard Bracket | 1 |
| 417300451 | BELT GUARD BRACKET | ||
| 1 | 518327035 | Brake Hose Cover | 1 |
| 2 | 293150163 | Rivet Hucklok | 2 |
| 1 | 114045200 | Hair Pin | 1 |
| 1 | 417300468 | Air Duct | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 1 | 517281905 | Bracket | 1 |
| 2 | 390909100 | Avex Rivet | 2 |
| 1 | 516005511 | Belt Decal, English | 1 |
| 2 | 207162044 | Hex. Screw M6 X 20 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
