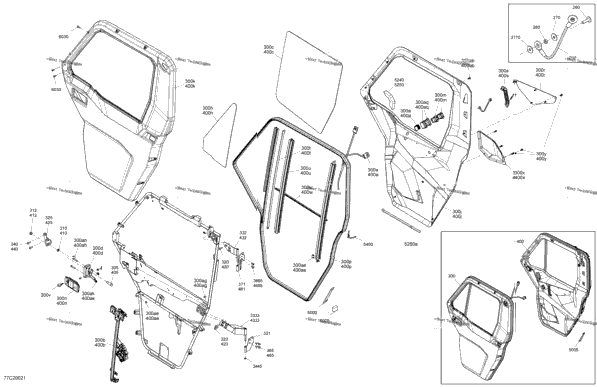

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 703500982 | Door Limit Device Kit | 4 |
| 4 | 250000722 | Torx Screw M6 X 20 | 4 |
| 12 | 234062670 | Stainless Steel Flat Washer | 12 |
| 8 | 708300737 | Bushing | 8 |
| 1 | 705800659 | LH Front Rigid Door Ass'y Includes 300 to 300aq | 1 |
| 1 | 705800047 | Driver Door Harness | 1 |
| 1 | 705800594 | LH Window Regulator Ass'y | 1 |
| 1 | 705800016 | LH Roll-Down Glass | 1 |
| 1 | 703500915 | LH Interior Latch Kit | 1 |
| 1 | 705800608 | LH A-Pillar Glass | 1 |
| 1 | 705800322 | LH Routed Inner Door | 1 |
| 1 | 705800589 | LH Exterior Door Panel | 1 |
| 2 | 705800048 | Window Switch | 2 |
| 1 | 705800015 | Exterior Paddle Latch | 1 |
| 1 | 705800289 | Seal 705800290 - 5000 MM | 1 |
| 0 | 715006687 | LH Door Panel Kit | 0 |
| 1 | 715006687 | LH Door Panel Kit | 1 |
| 1 | 705800324 | LH Interior Handle | 1 |
| 2 | 705800595 | Window Guide Bracket | 2 |
| 2 | 705800590 | Window Guide Extrusion | 2 |
| 1 | 705800184 | Key Set | 1 |
| 2 | 705800591 | Folcked Beltline Trim 705800294 600mm | 2 |
| 1 | 705800604 | LH Door Pocket | 1 |
| 4 | 705009405 | Plastic Dart | 4 |
| 7 | 250000874 | Torx Truss M8 X 25 Not shown | 7 |
| 3 | 205951046 | Socket Head Screw M5 X 10 Not shown | 3 |
| 9 | 293730011 | Black, Dart | 9 |
| 8 | 205460860 | Socket Screw M6 X 8 Not shown | 8 |
| 6 | 234062670 | Stainless Steel Flat Washer Not shown | 6 |
| 6 | 250000747 | Torx-Truss M/S M6 X 10 | 6 |
| 4 | 250000789 | Torx Truss M6X14 Not shown | 4 |
| 5 | 250000616 | Black, Socket Screw, M6 X 16 S.Grip | 5 |
| 2 | 205484060 | Socket Head Screw M8 X 40 | 2 |
| 2 | 233261494 | Hex. Elastic Flange Nut M6 Not shown | 2 |
| 2 | 233281466 | Elastic Flange Nut M8 | 2 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 Not shown | 1 |
| 1 | 715900493 | LH Latch Cable 2.4'' Not shown | 1 |
| 1 | 715900504 | Interior Latch Cable 28'' Not shown | 1 |
| 2 | 715900526 | LH Power Window Switch Housing | 2 |
| 1 | 705800038 | Striker Bolt | 1 |
| 1 | 705800368 | Washer | 1 |
| 1 | 232521416 | Elastic Stop Nut M12 | 1 |
| 7 | 250000874 | Torx Truss M8 X 25 | 7 |
| 1 | 705800350 | LH Front Striker Support | 1 |
| 2 | 705800482 | Lower Female Door Hinge | 2 |
| 1 | 705800340 | LH Upper Male Door Hinge | 1 |
| 1 | 705800344 | LH Lower Male Door Hinge | 1 |
| 2 | 250000874 | Torx Truss M8 X 25 | 2 |
| 2 | 293370125 | Retaining Ring | 2 |
| 4 | 250000953 | Torx Truss M/S M8 X 20 | 4 |
| 1 | 705800348 | LH Central Female Door Hinge | 1 |
| 1 | 705800660 | RH Front Rigid Door Ass'y Includes 400 to 400aq | 1 |
| 1 | 705800050 | Passenger Door Harness | 1 |
| 1 | 705800593 | RH Window Regulator Ass'y | 1 |
| 1 | 705800025 | RH Roll-Down Glass | 1 |
| 1 | 703500916 | RH Interior Latch Kit | 1 |
| 1 | 705800609 | RH A-Pillar Glass | 1 |
| 1 | 705800323 | RH Routed Inner Door | 1 |
| 1 | 705800592 | RH Door Outer Panel | 1 |
| 1 | 705800048 | Window Switch | 1 |
| 1 | 715006689 | RH Door Panel Kit | 1 |
| 1 | 705800325 | RH Interior Handle | 1 |
| 1 | 705800591 | Folcked Beltline Trim 705800294 600mm | 1 |
| 1 | 705800605 | RH Door Pocket | 1 |
| 1 | 715900494 | RH Latch Cable 2.9'' Not shown | 1 |
| 1 | 715900527 | RH Power Window Switch Housing | 1 |
| 1 | 705800351 | RH Front Striker Support | 1 |
| 1 | 705800341 | RH Male Upper Door Hinge | 1 |
| 1 | 705800345 | RH Lower Male Door Hinge | 1 |
| 1 | 705800349 | RH Central Female Door Hinge | 1 |
| 1 | 705800504 | Acoustic Insulation | 1 |
| 1 | 705800515 | Acoustic Insulation | 1 |
| 2 | 705800506 | Acoustic Insulation | 2 |
| 1 | 705800278 | LH Insulating Foam | 1 |
| 1 | 705800279 | RH Insulating Foam | 1 |
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 2 | 705800507 | Acoustic Insulation | 2 |
| 1 | 250000712 | Torx Screw M6 X 20 | 1 |
